C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C207 - Crossbody Harness Inline to Left Door Harness
C207 - Crossbody Harness Inline to Left Door Harness

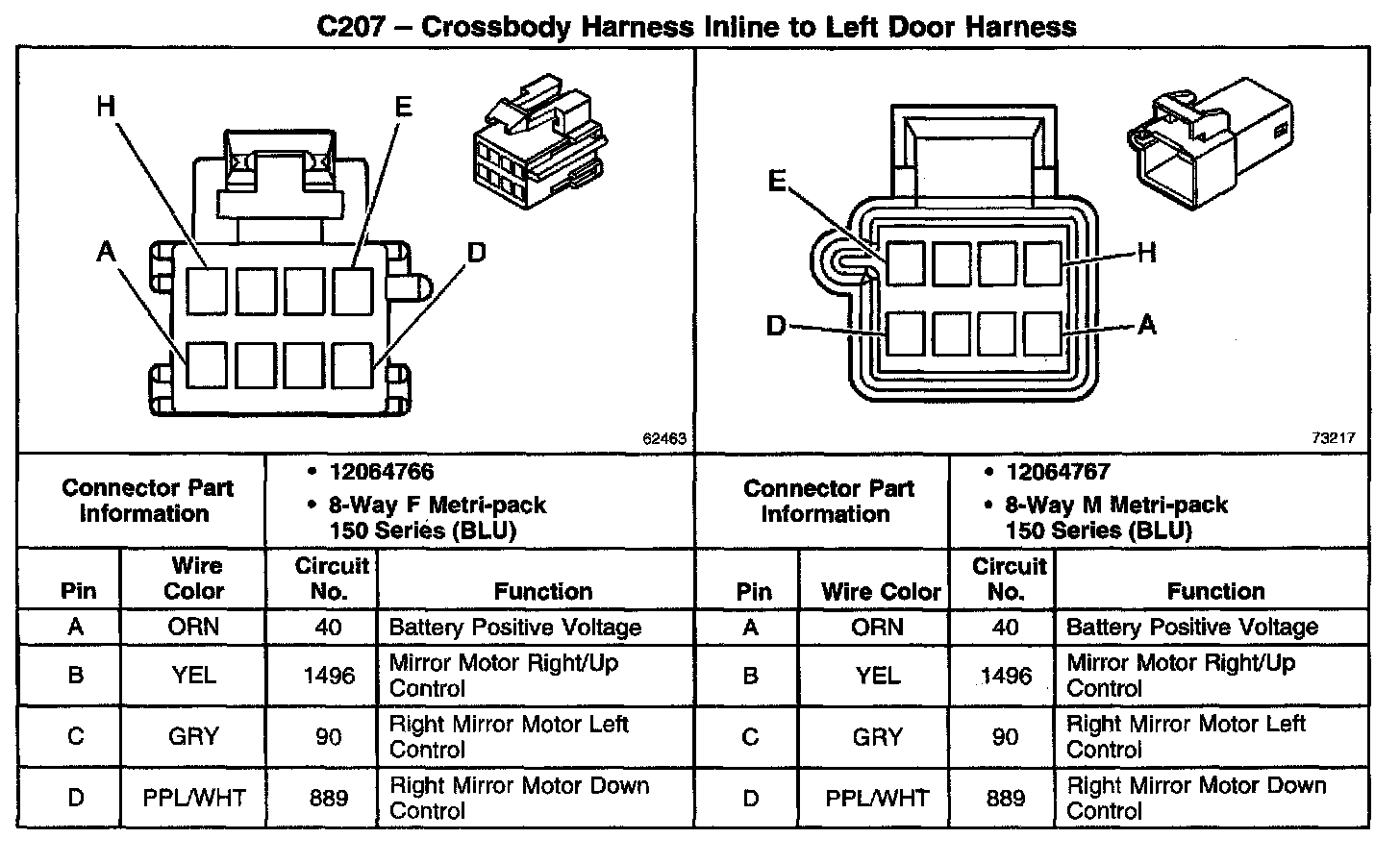

C207 - Crossbody Harness Inline To Left Door Harness Part 1:
C207 - Crossbody Harness Inline To Left Door Harness Part 2:
