Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C266 - IP Harness Inline to Steering Column Harness
C266 - IP Harness Inline to Steering Column Harness

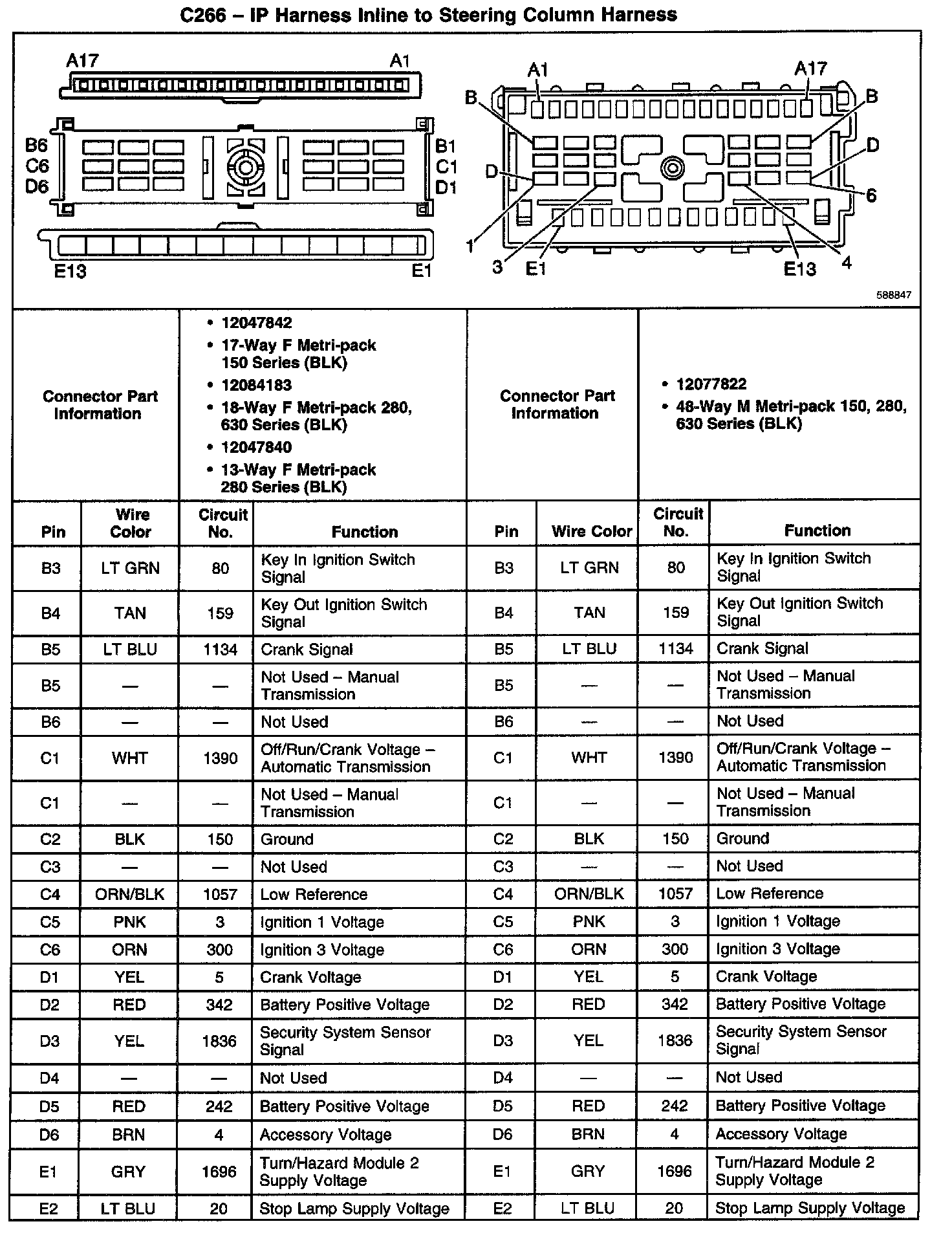

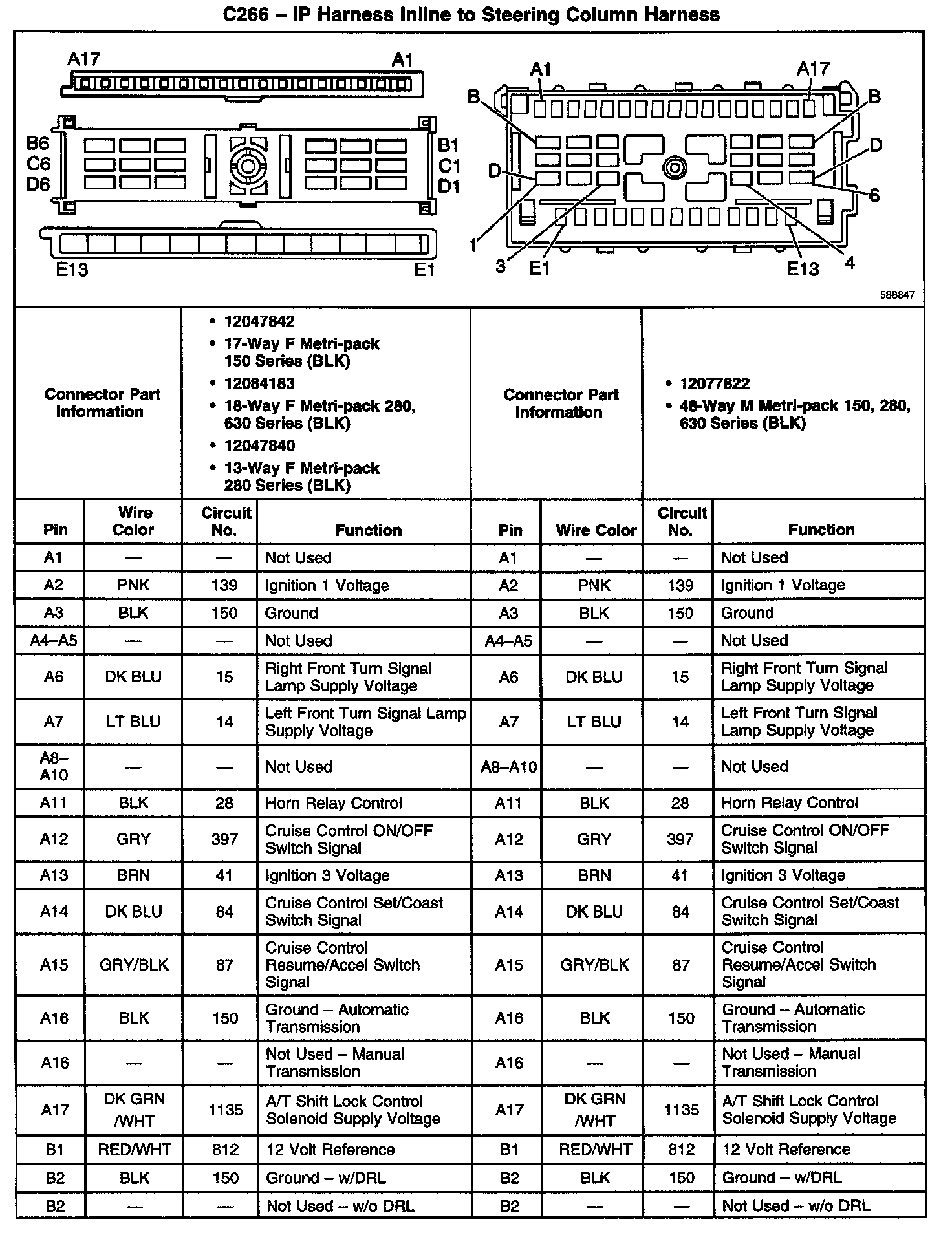

C266 - IP Harness Inline To Steering Column Harness Part 1:
C266 - IP Harness Inline To Steering Column Harness Part 2:
C266 - IP Harness Inline To Steering Column Harness Part 3:
