Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C291 - Switch Harness Inline to Dash Harness - 5Y0 and 5X7
C291 - Switch Harness Inline to Dash Harness - 5Y0 and 5X7

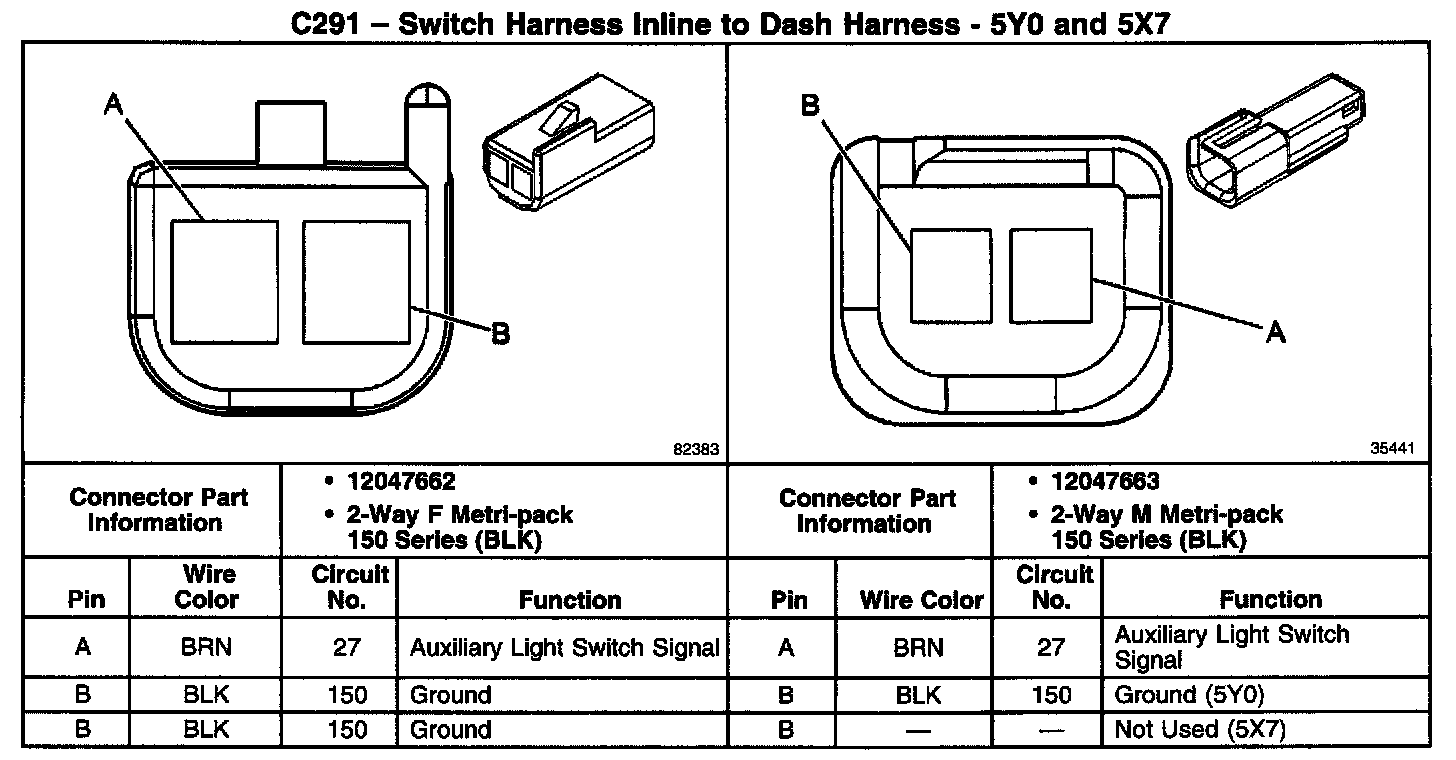

C291 - Switch Harness Inline To Dash Harness - 5Y0 And 5X7:
