Home
>>
Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C411 - Crossbody Harness Inline to Dome Lamp Harness
C411 - Crossbody Harness Inline to Dome Lamp Harness

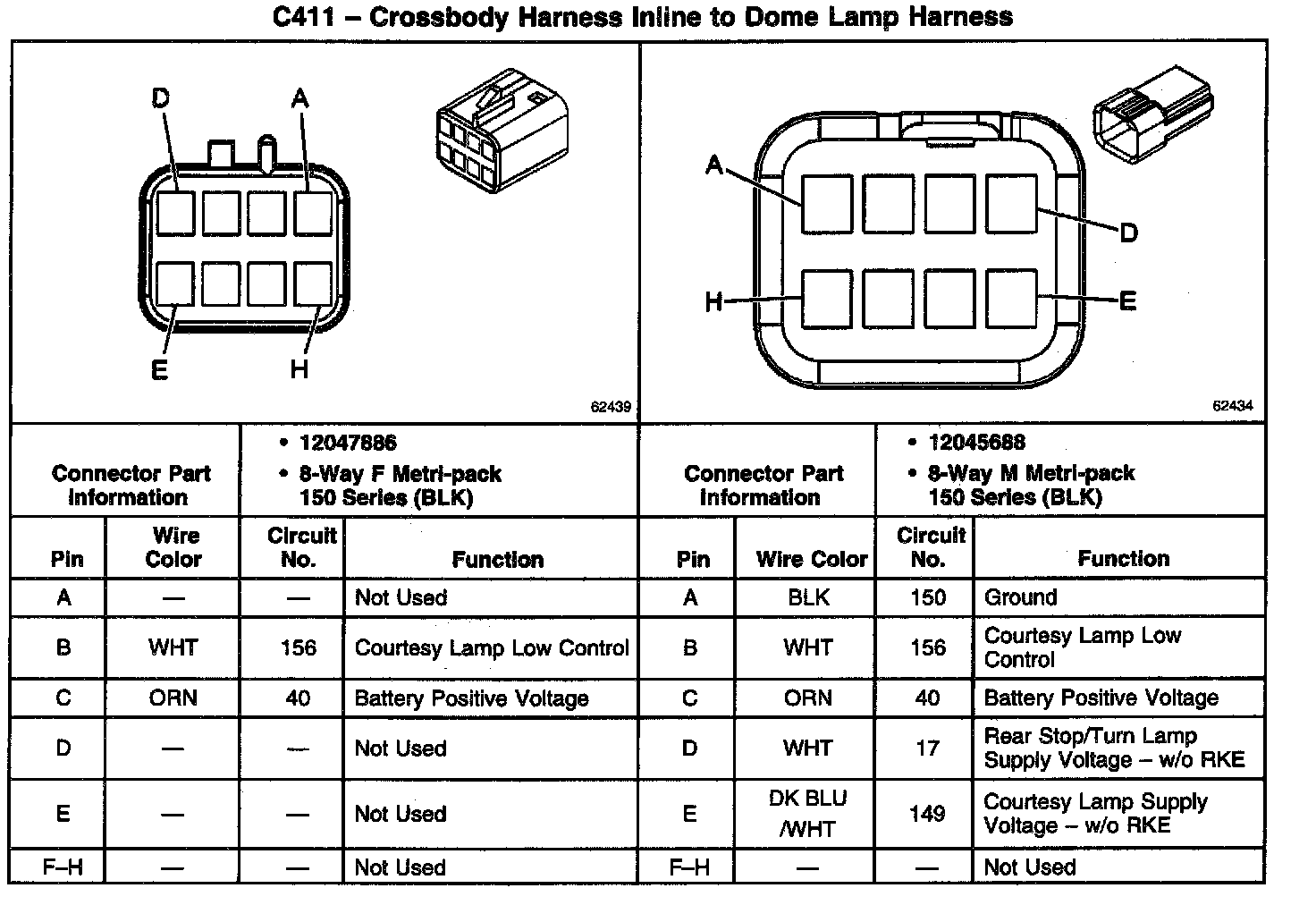

C411 - Crossbody Harness Inline To Dome Lamp Harness:
