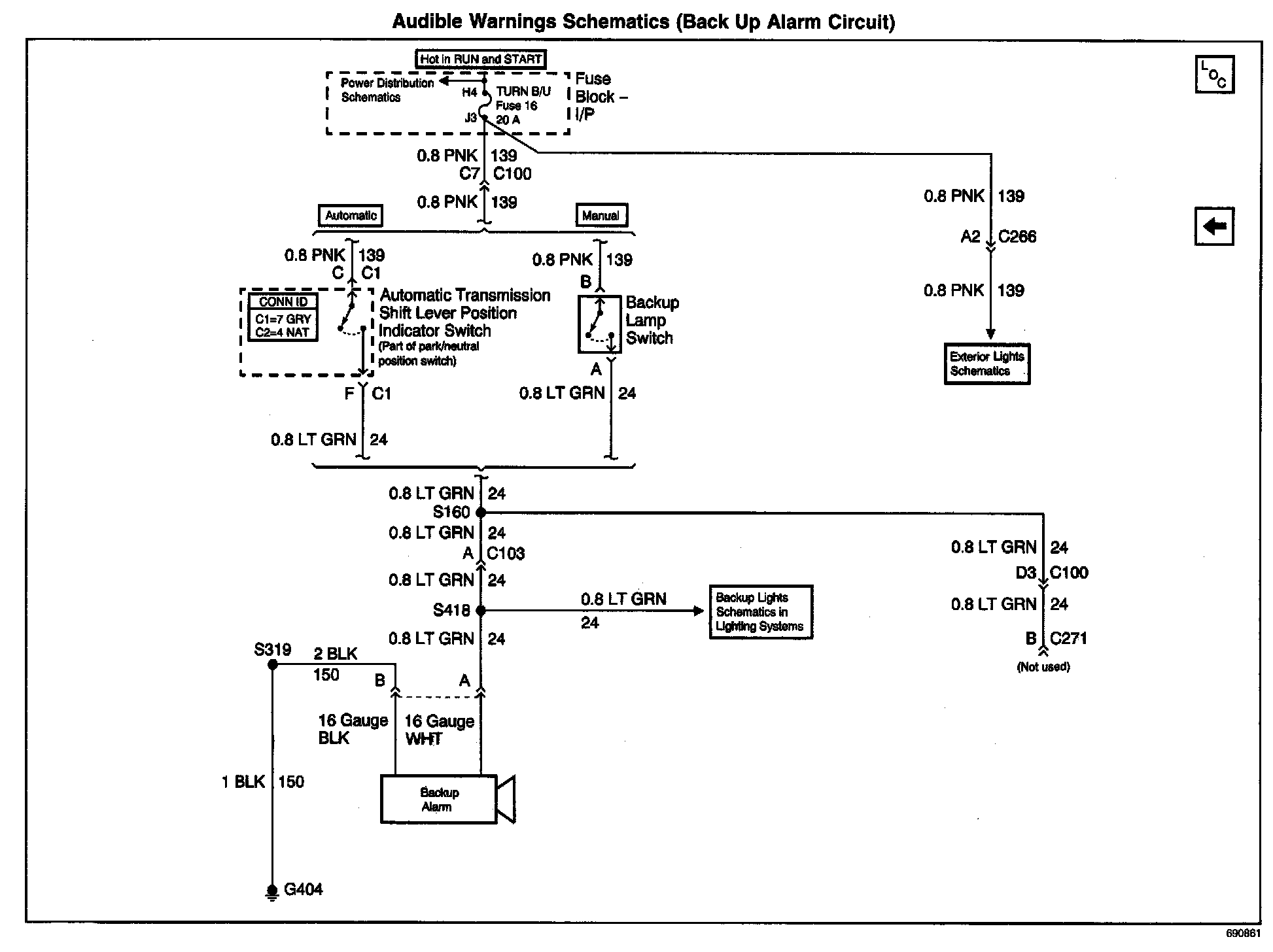

Audible Warnings Schematics (Back Up Alarm Circuit)

Audible Warnings Schematics: Back Up Alarm Circuit:
