Home >> Chevy Truck >> 2002 >> C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Oil Pressure Gage Inaccurate or Inoperative

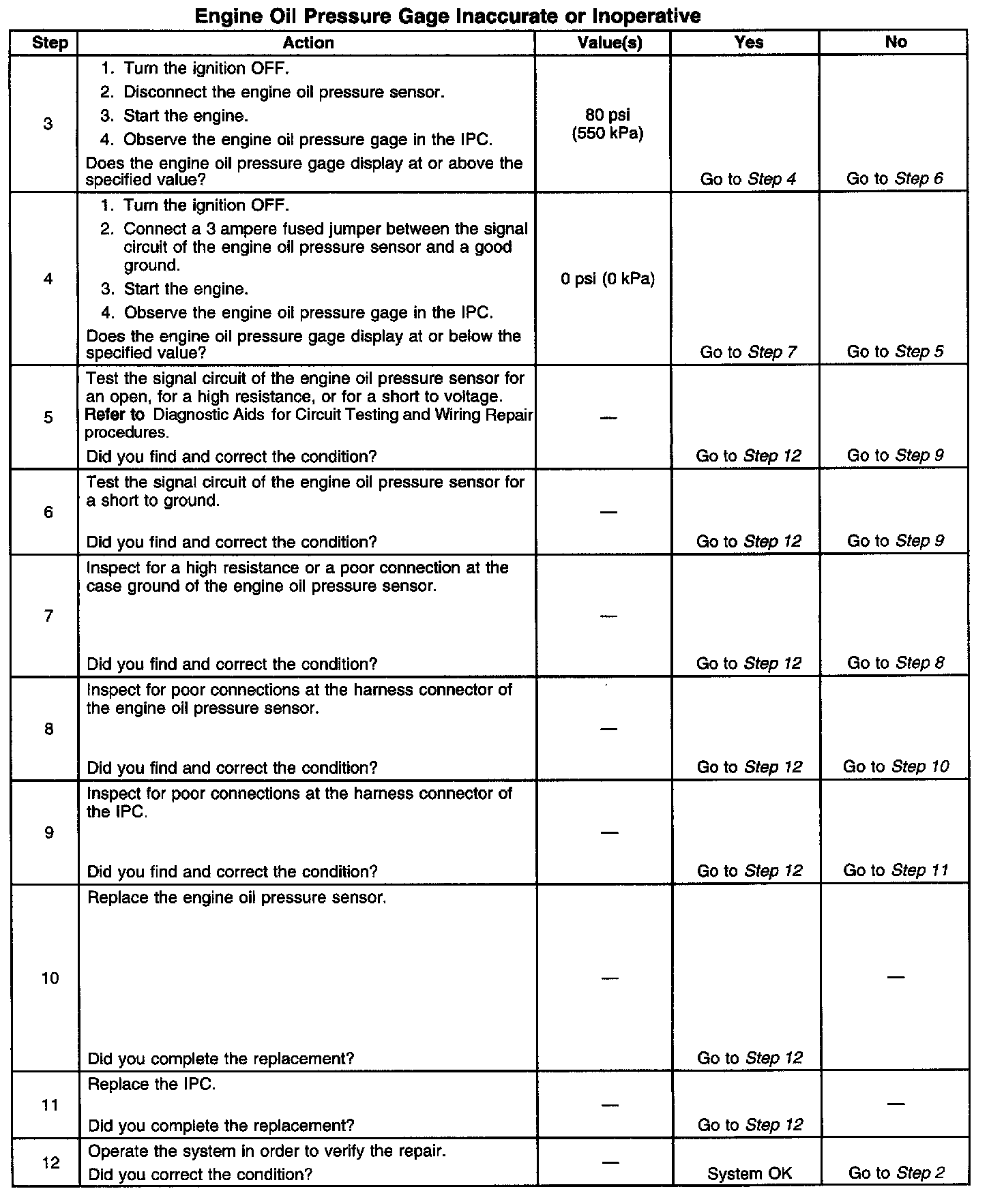

Engine Oil Pressure Gage Inaccurate or Inoperative

Steps 1-2:



Steps 3-12:
