C100, C102, Underhood Fuse Block, EBCM, and Brake Pressure Differential Switch

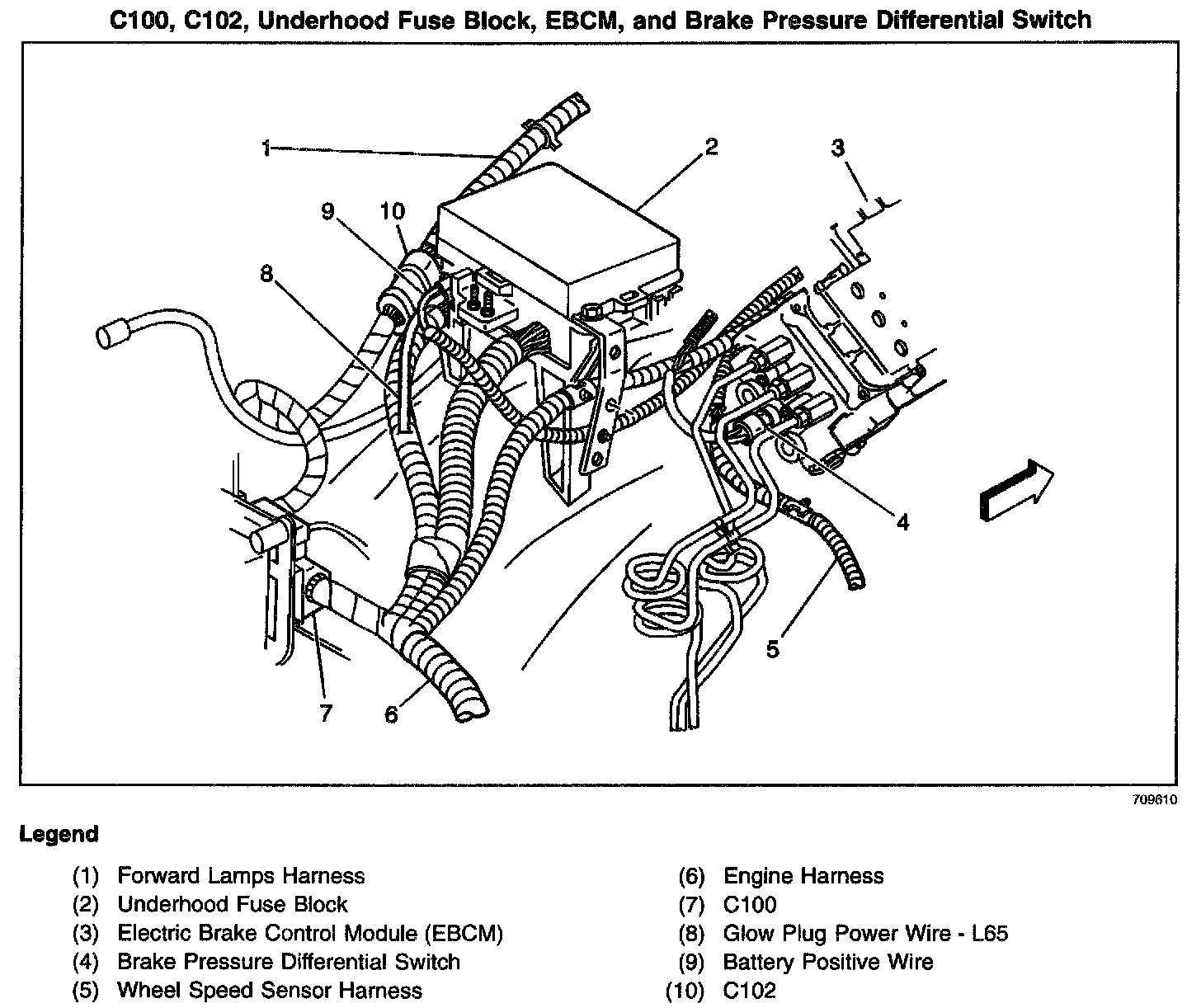

C100, C102, Underhood Fuse Block, EBCM, and Brake Pressure Differential Switch
Locations View:
