Refrigerant Pressure Sensor / Switch: Diagrams

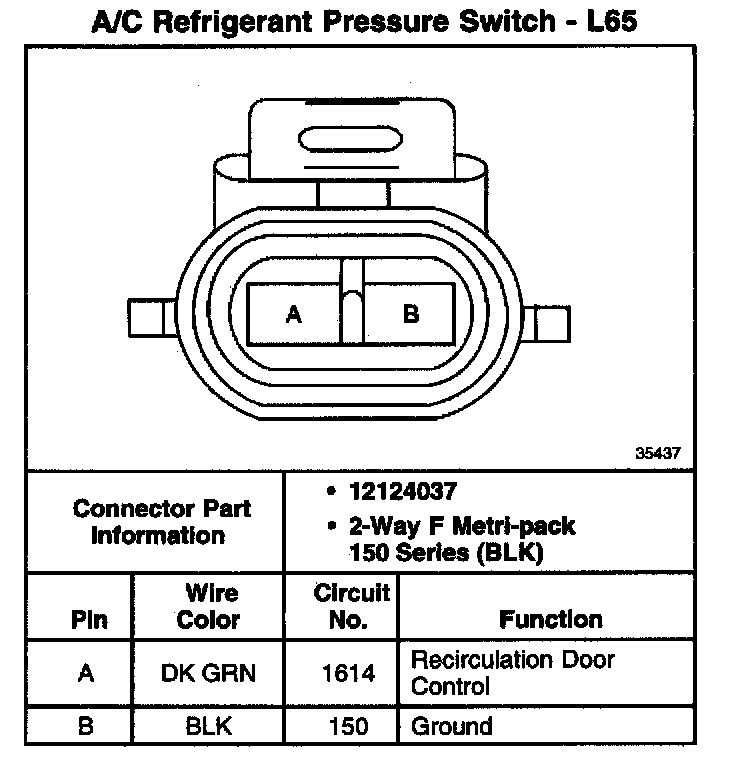

A/C Refrigerant Pressure Switch - L65 - HVAC Systems - Manual:
