Specifications
>>
Electrical Specifications
Electrical Specifications
Component Resistance

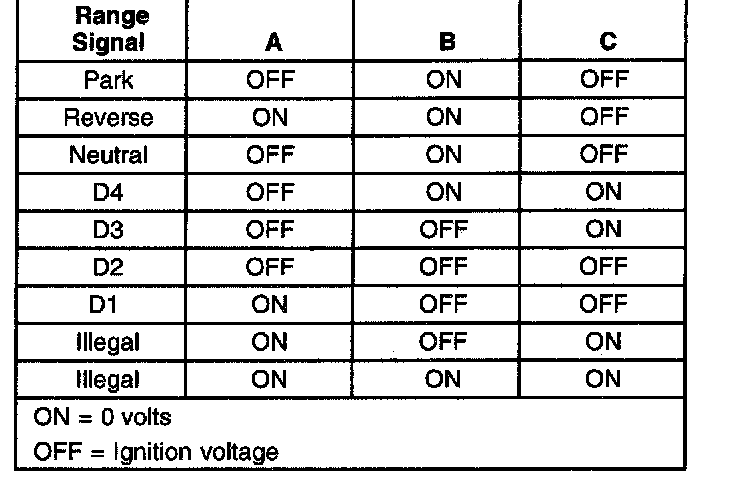

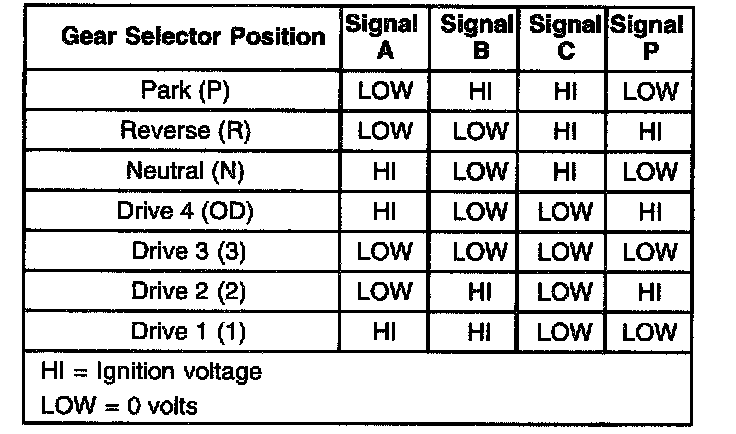

Transmission Range Switch Logic
