Windshield Washer Pump: Service and Repair

WASHER PUMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the washer solvent container from the vehicle.

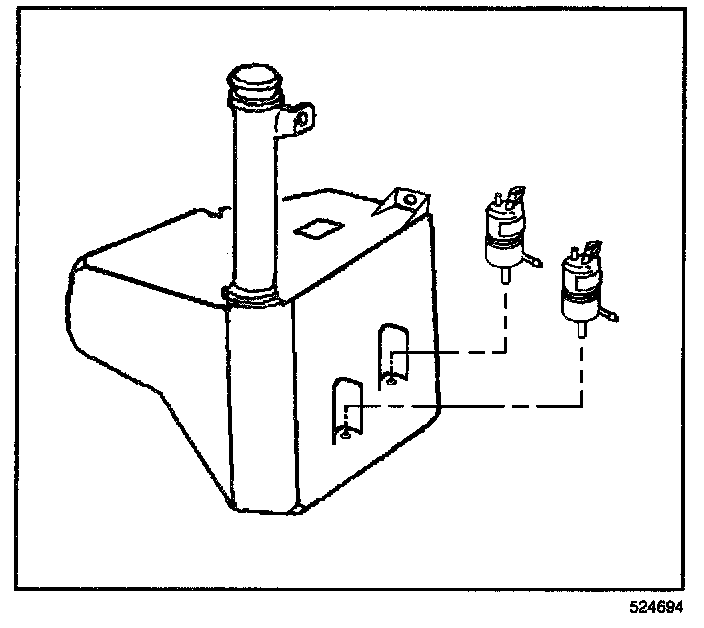

2. Remove the washer pump(s) from the washer solvent container.

INSTALLATION PROCEDURE

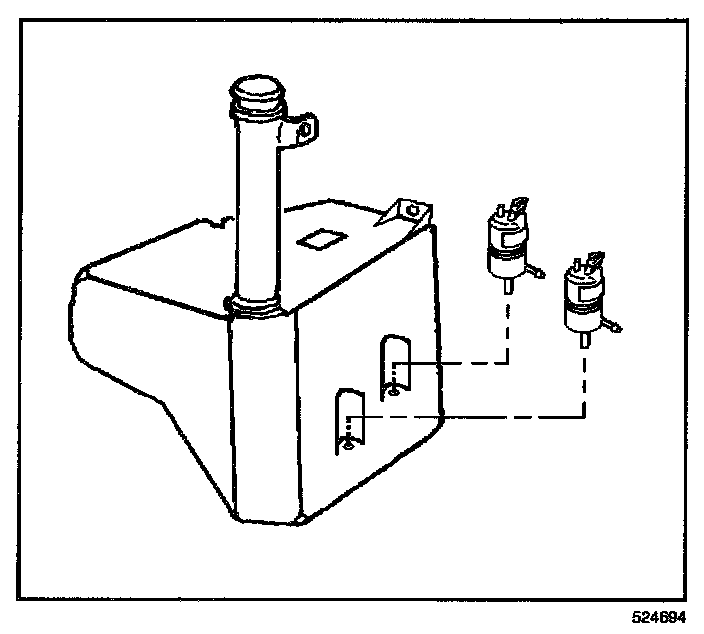

1. Install the washer pump(s) in the washer solvent container.
2. Install the washer solvent container on the vehicle.
