C291, G200, and Convenience Center C2 and C3
C291, G200, and Convenience Center C2 and C3

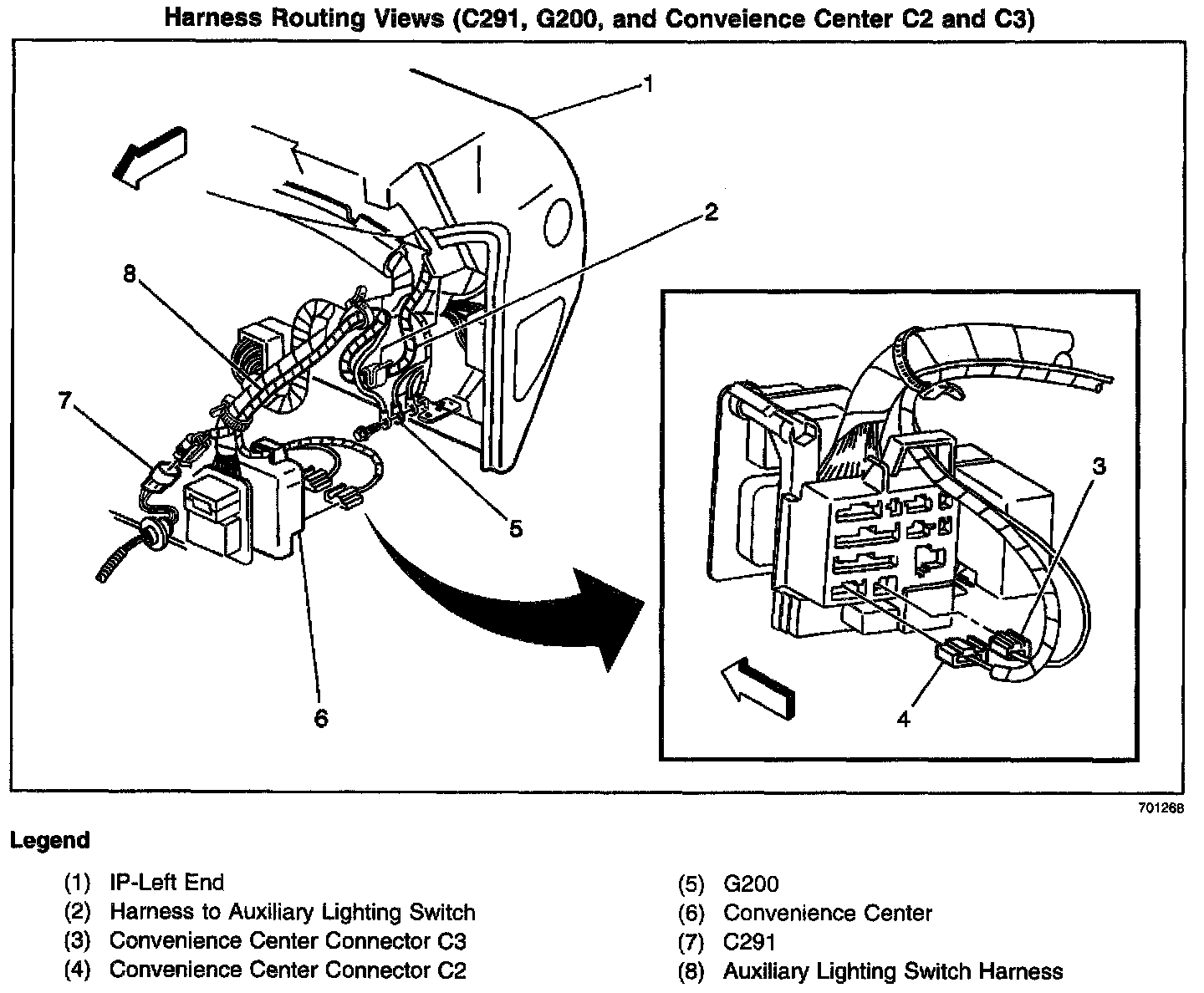

Harness Routing Views (C291, G200, And Convenience Center C2 And C3):
