Marker Lamp: Service and Repair

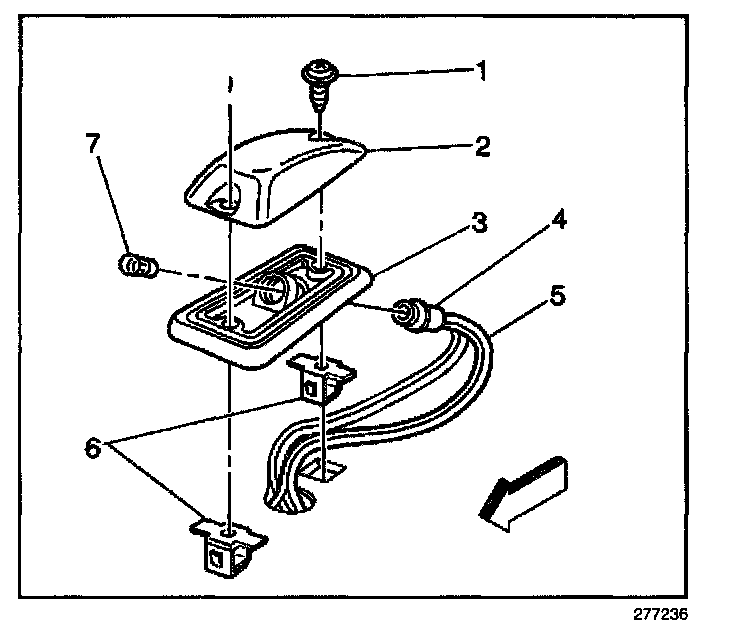

MARKER LAMP REPLACEMENT - ROOF

REMOVAL PROCEDURE




1. Make sure the headlamp switch is in the OFF position.
2. Remove the lens screws (1).
3. Remove the lens (2).
4. Remove the insulator (3).
5. Remove the bulb (7).

INSTALLATION PROCEDURE




1. Install the bulb (7).
2. Install the insulator (3).
3. Install the lens (2).
4. Install the lens screws (1).
