Connector Views

Manual Transmission Connector End Views

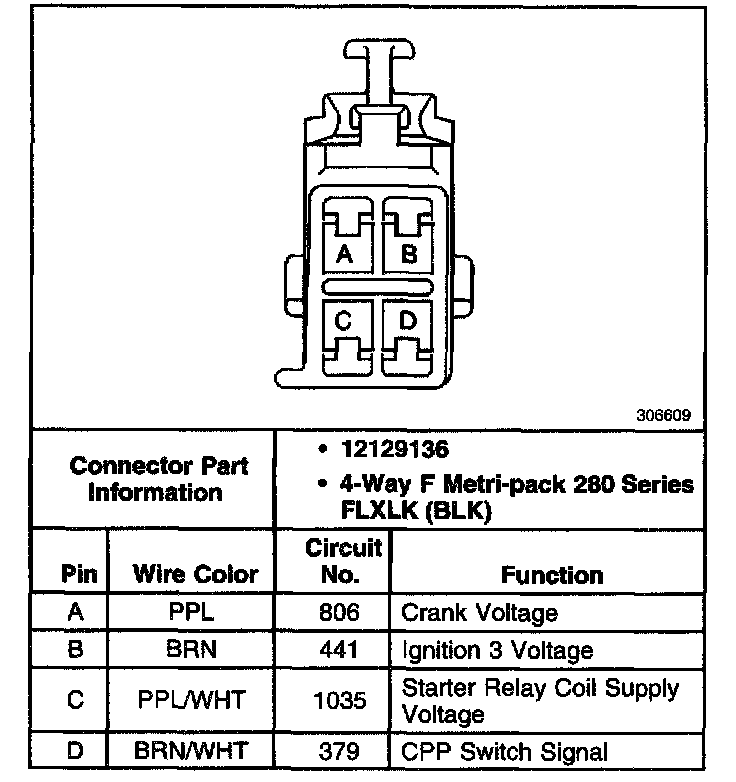

Clutch Pedal Position (CPP) Switch - L18

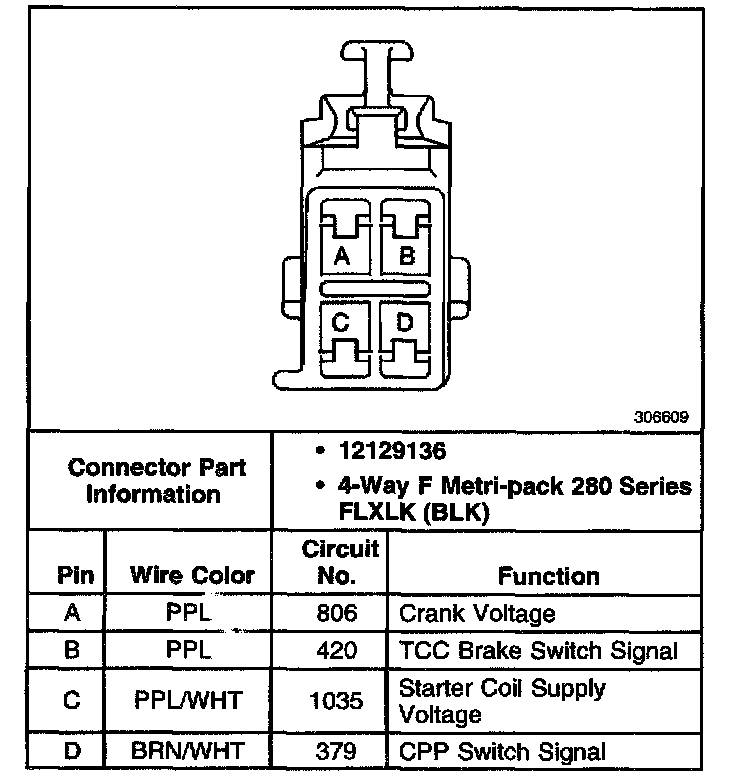

Clutch Pedal Position (CPP) Switch - L65

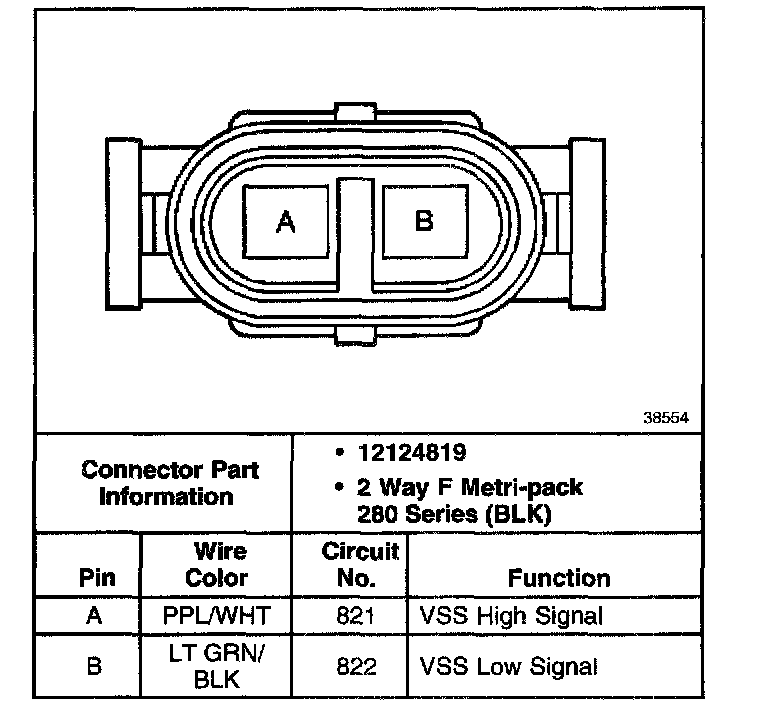

Vehicle Speed Sensor (VSS) - M/T
