Home >> Chevy Truck >> 2002 >> C 3500 Truck 2WD V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter >> Sierra Professional Console Outlets

Sierra Professional Console Outlets

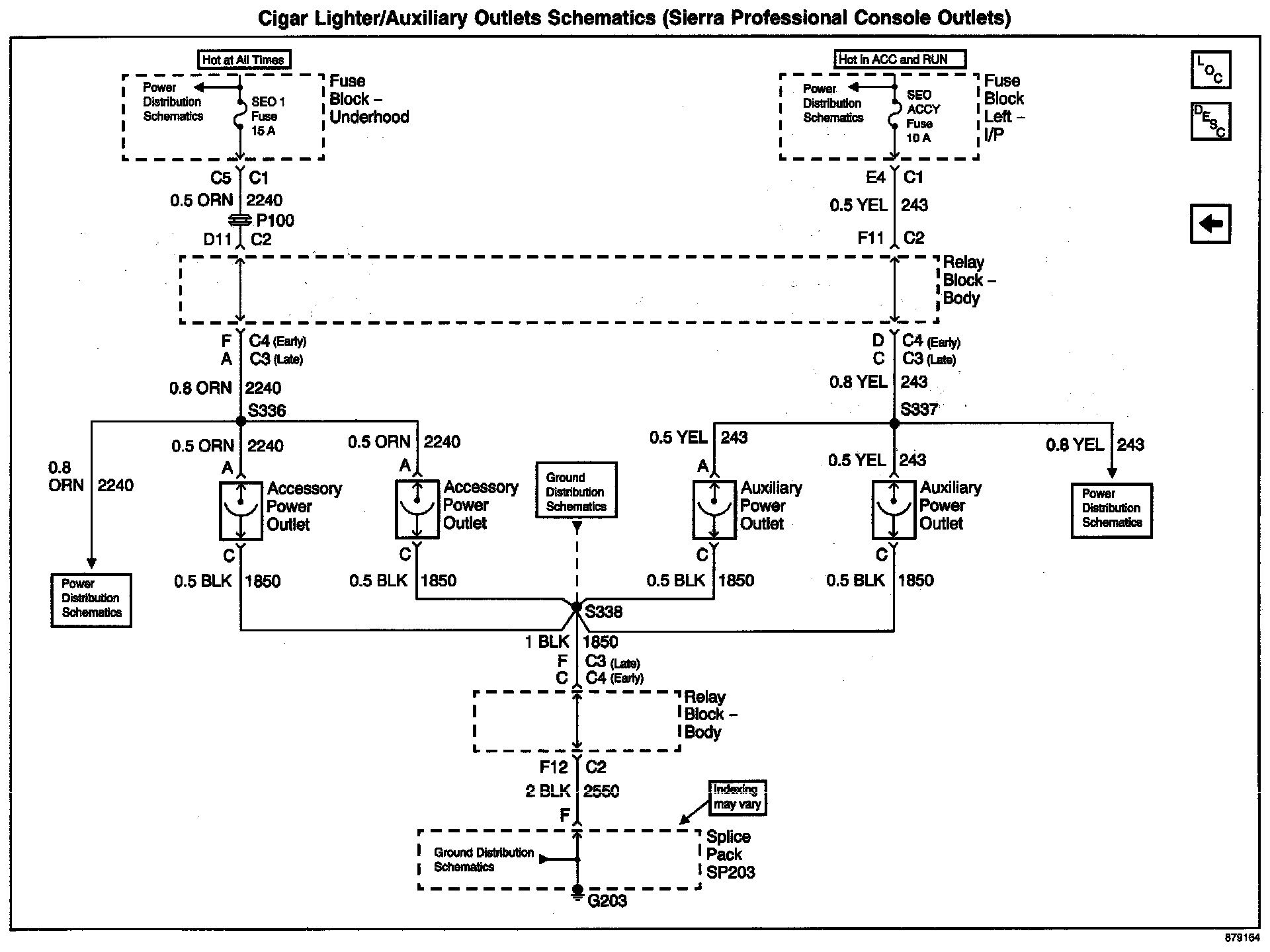

Cigar Lighten/Auxiliary Outlets Schematics: Sierra Professional Console Outlets:
