Allison - Automatic Transmission

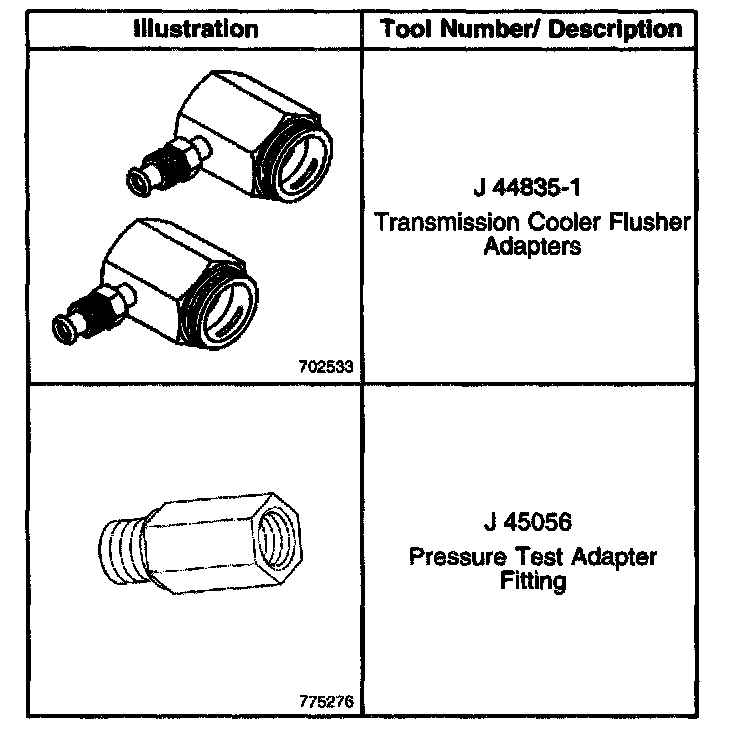

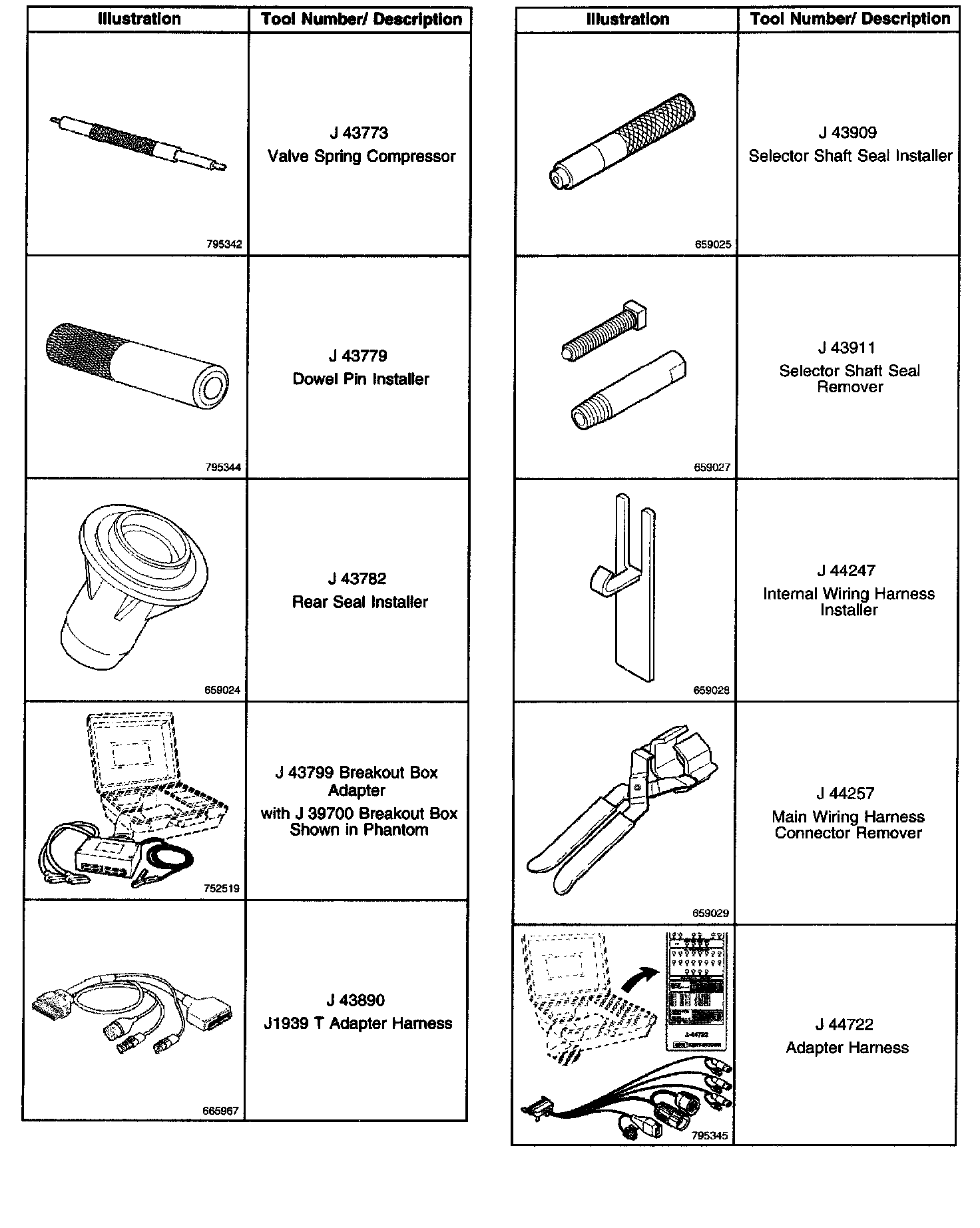

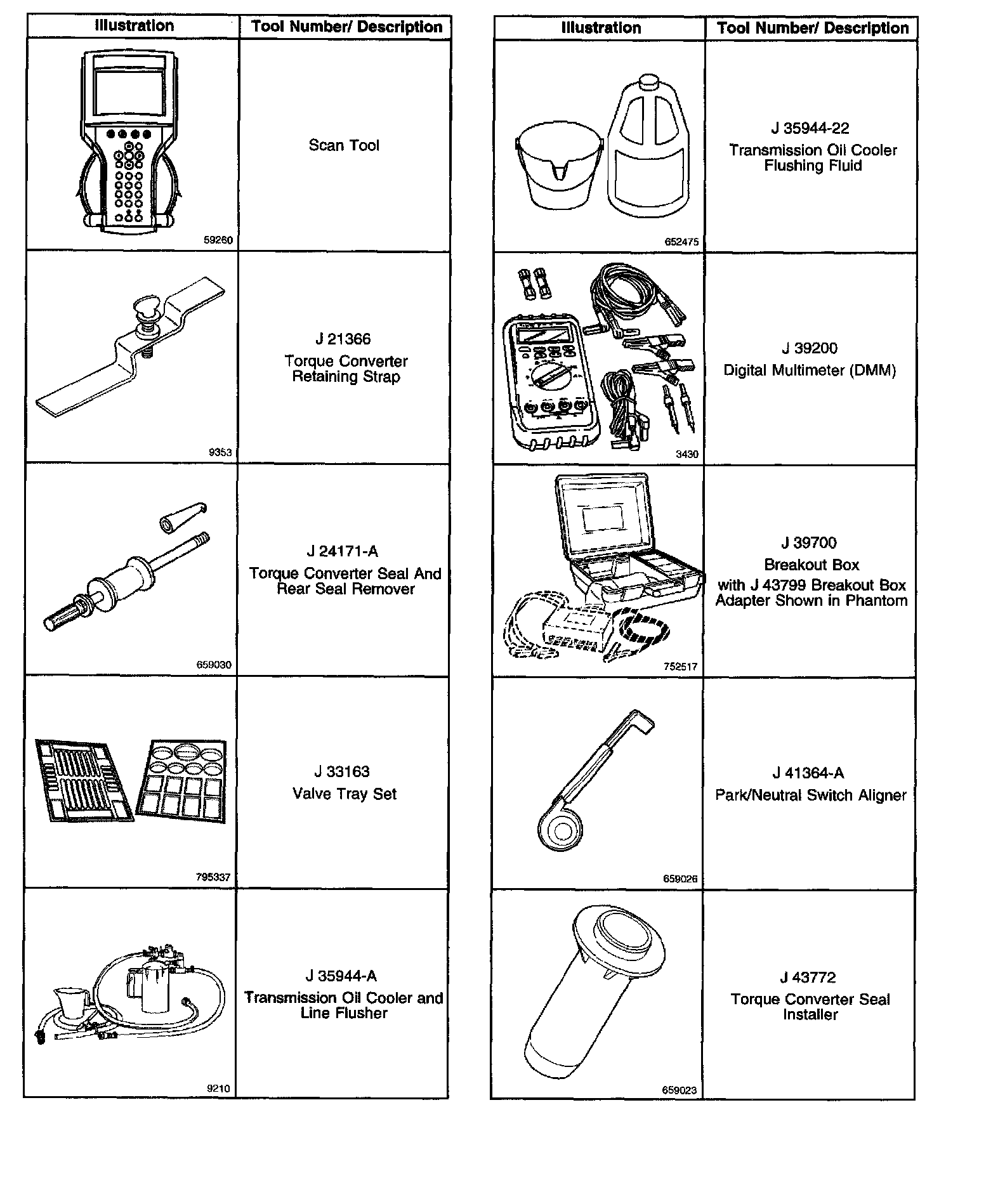

Special Tools and Equipment





Part 1 of 3





Part 2 of 3





Part 3 of 3
