Power and Grounding Connector End Views

Power and Grounding Connector End Views

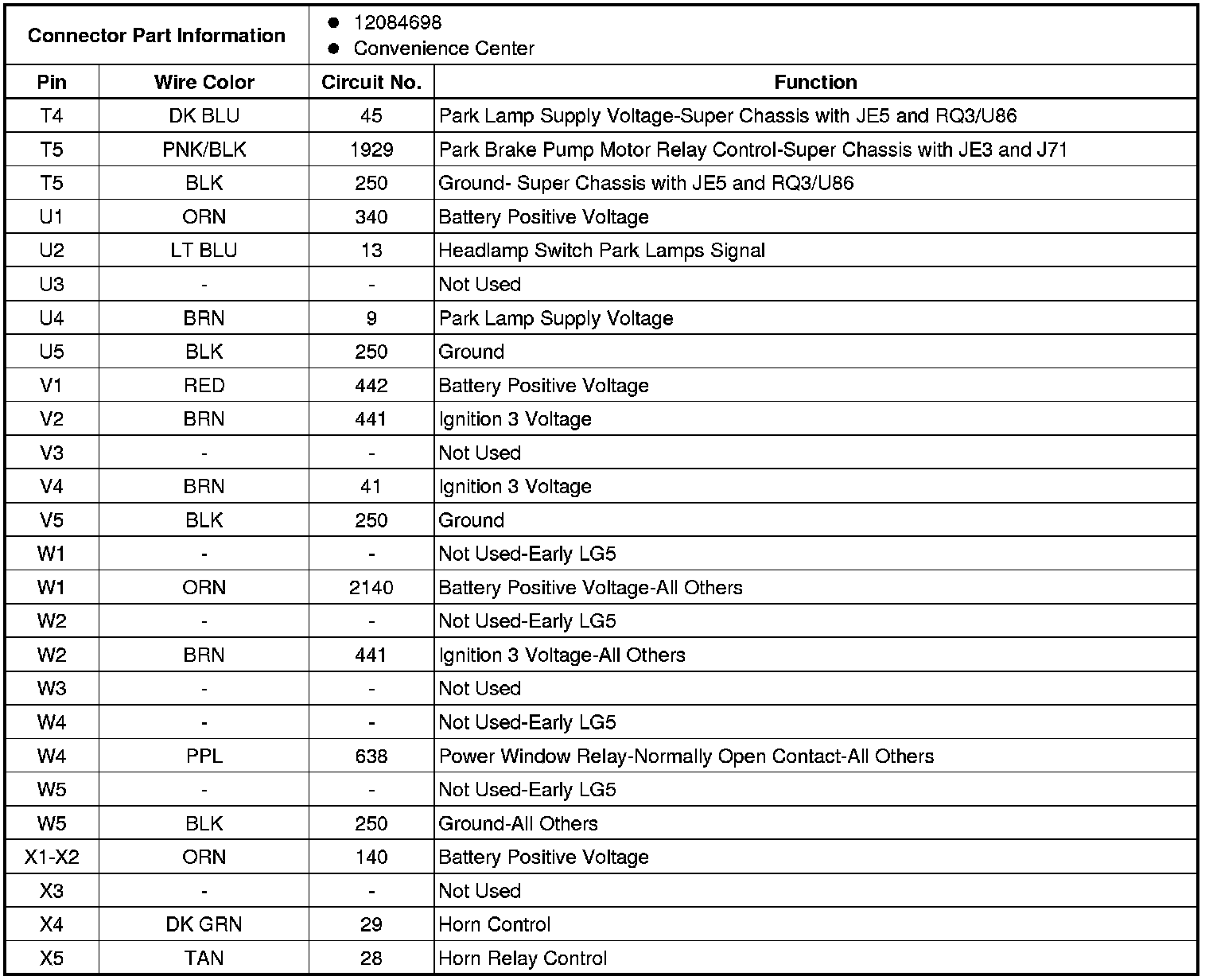

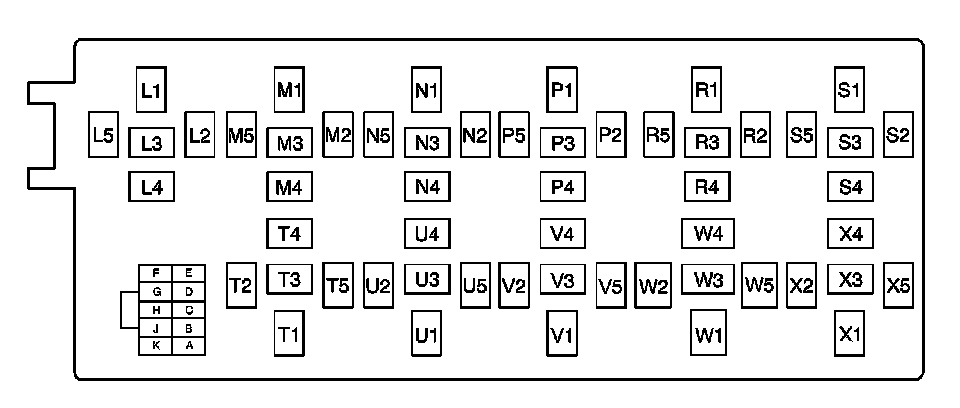

Convenience Center

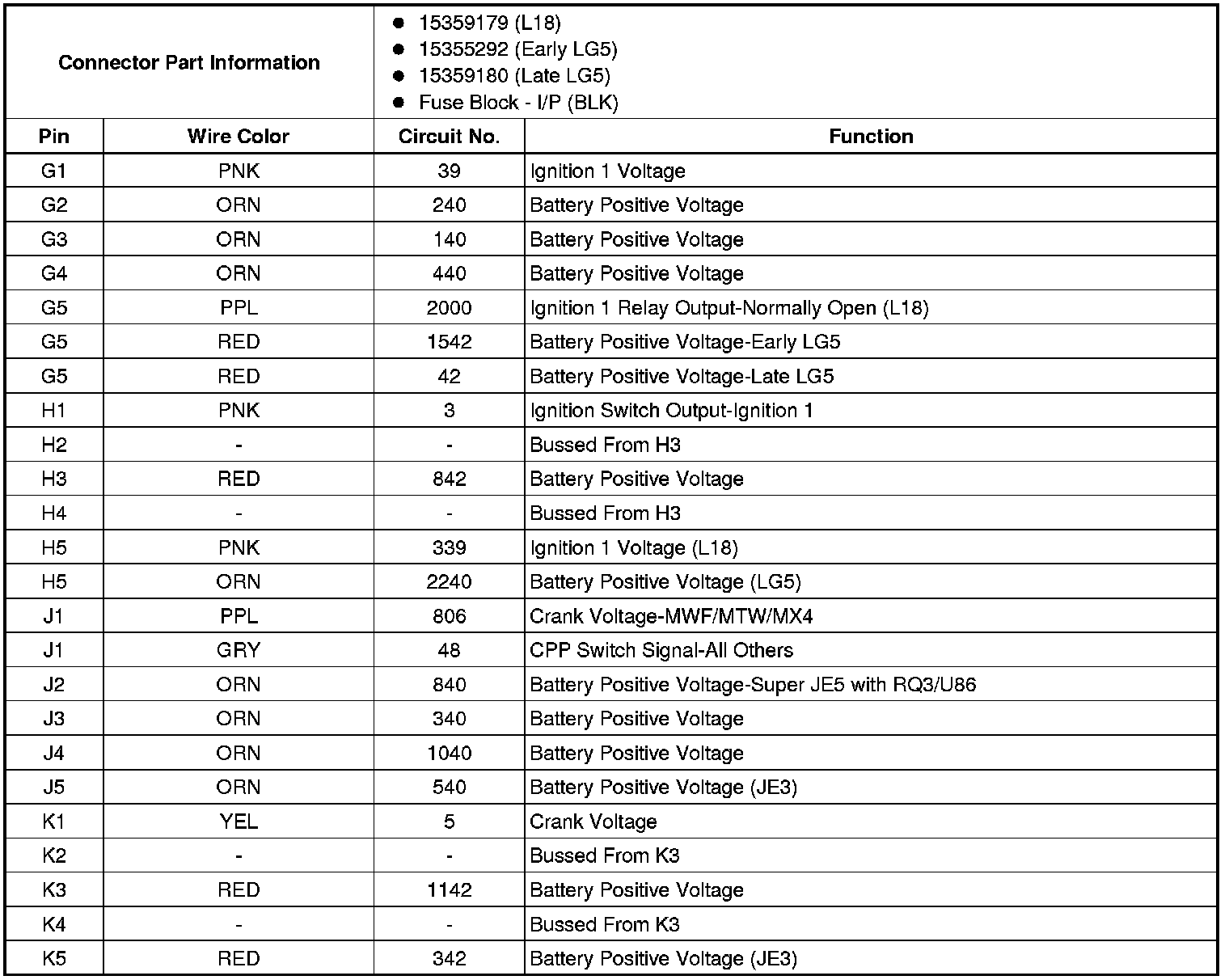

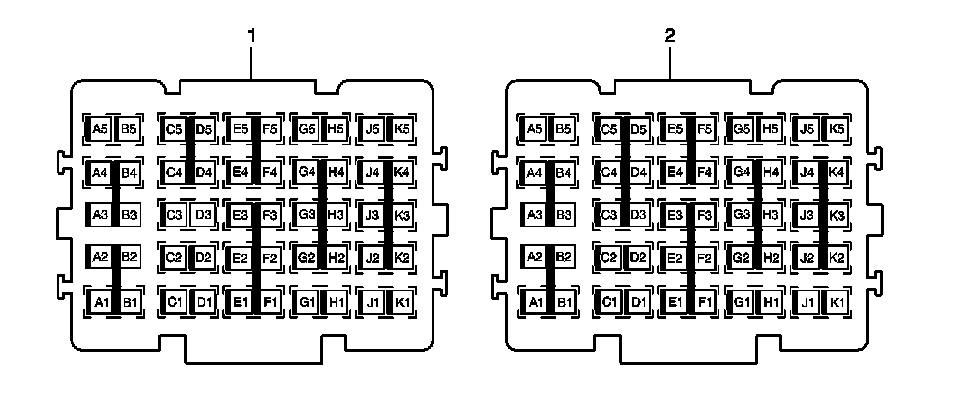

Fuse Block - I/P - Rear View

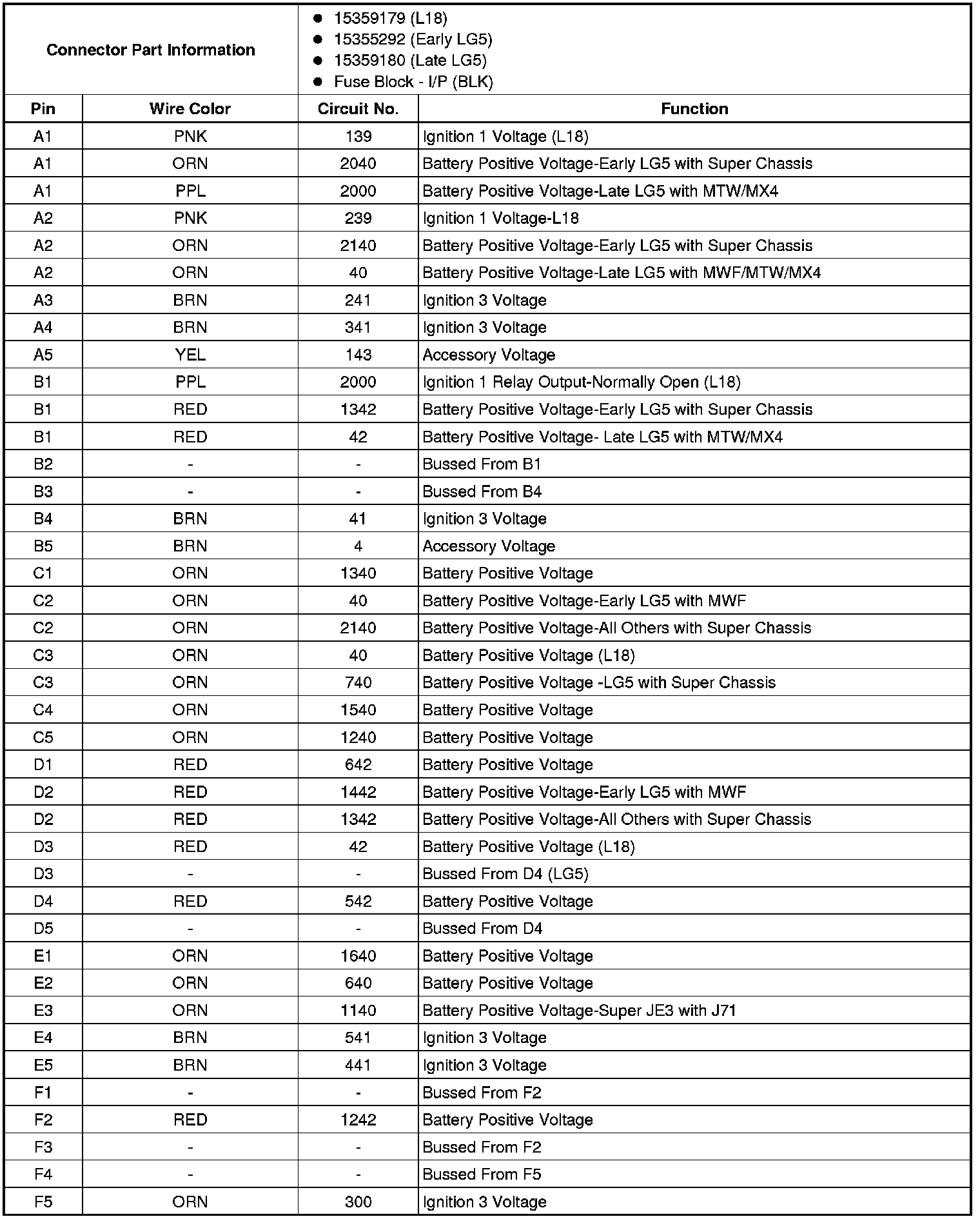

1 - Fuse Block - I/P (L18)
2 - Fuse Block - I/P (LG5)

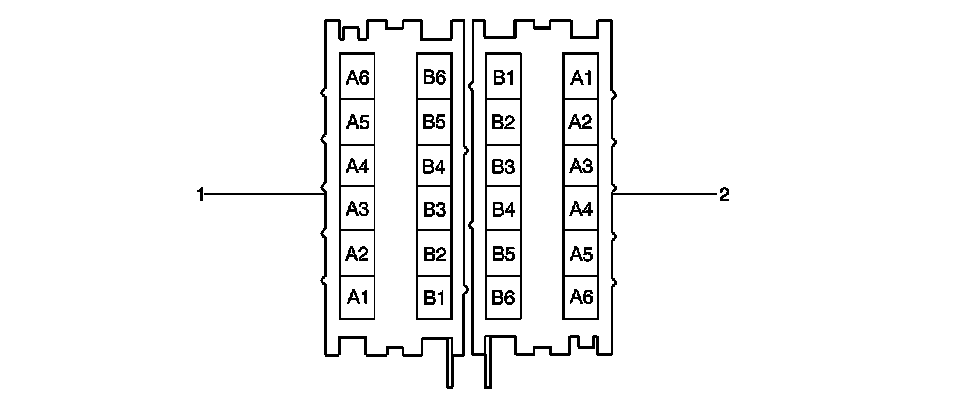

Fuse Block - Underhood - Bottom View

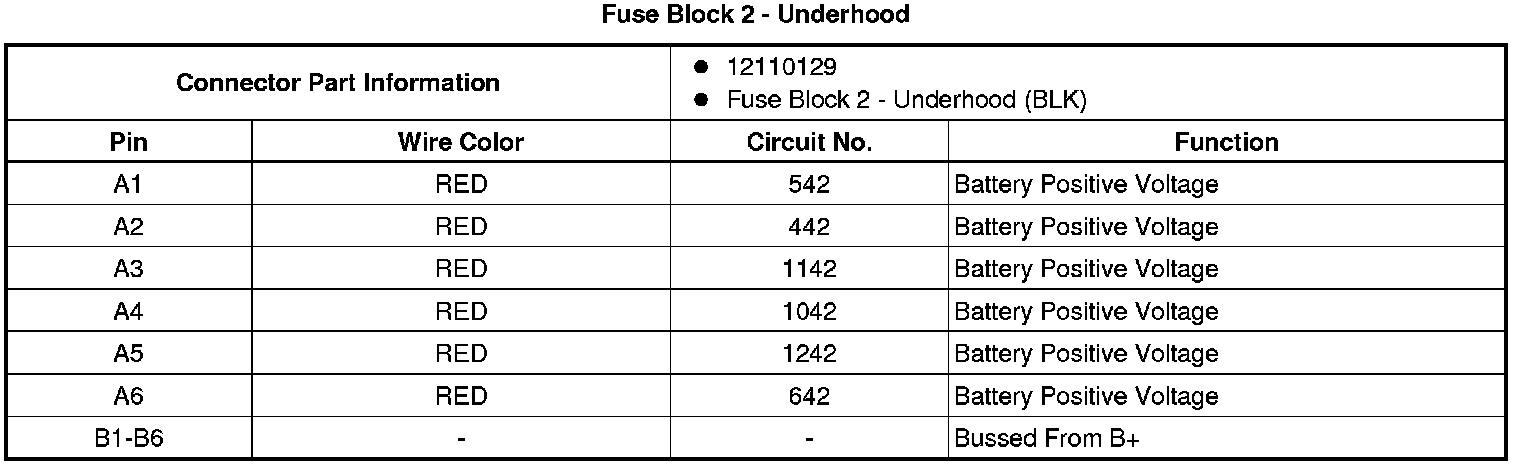

1 - Fuse Block 2 - Underhood

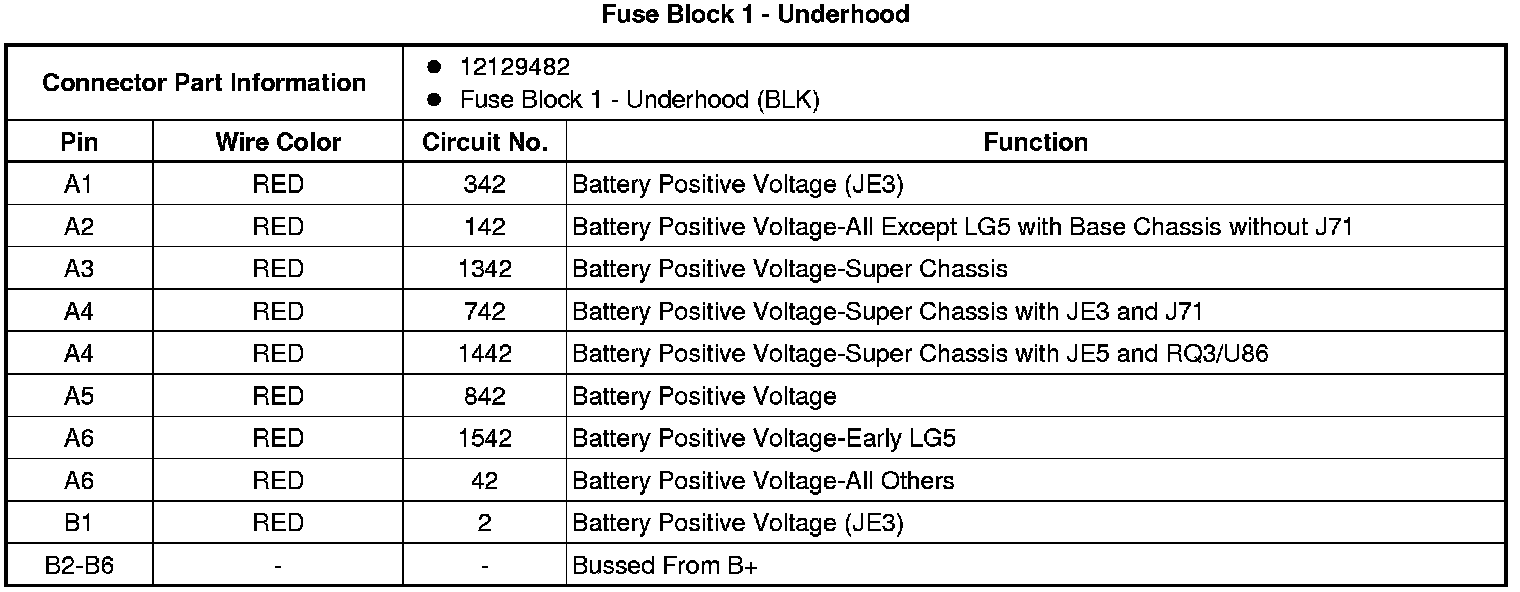

2 - Fuse Block 1 - Underhood
