Cruise Control Schematics (L18)




Cruise Control Schematics (L18)

Cruise Control Enable





Stop Lamp Switch Interface

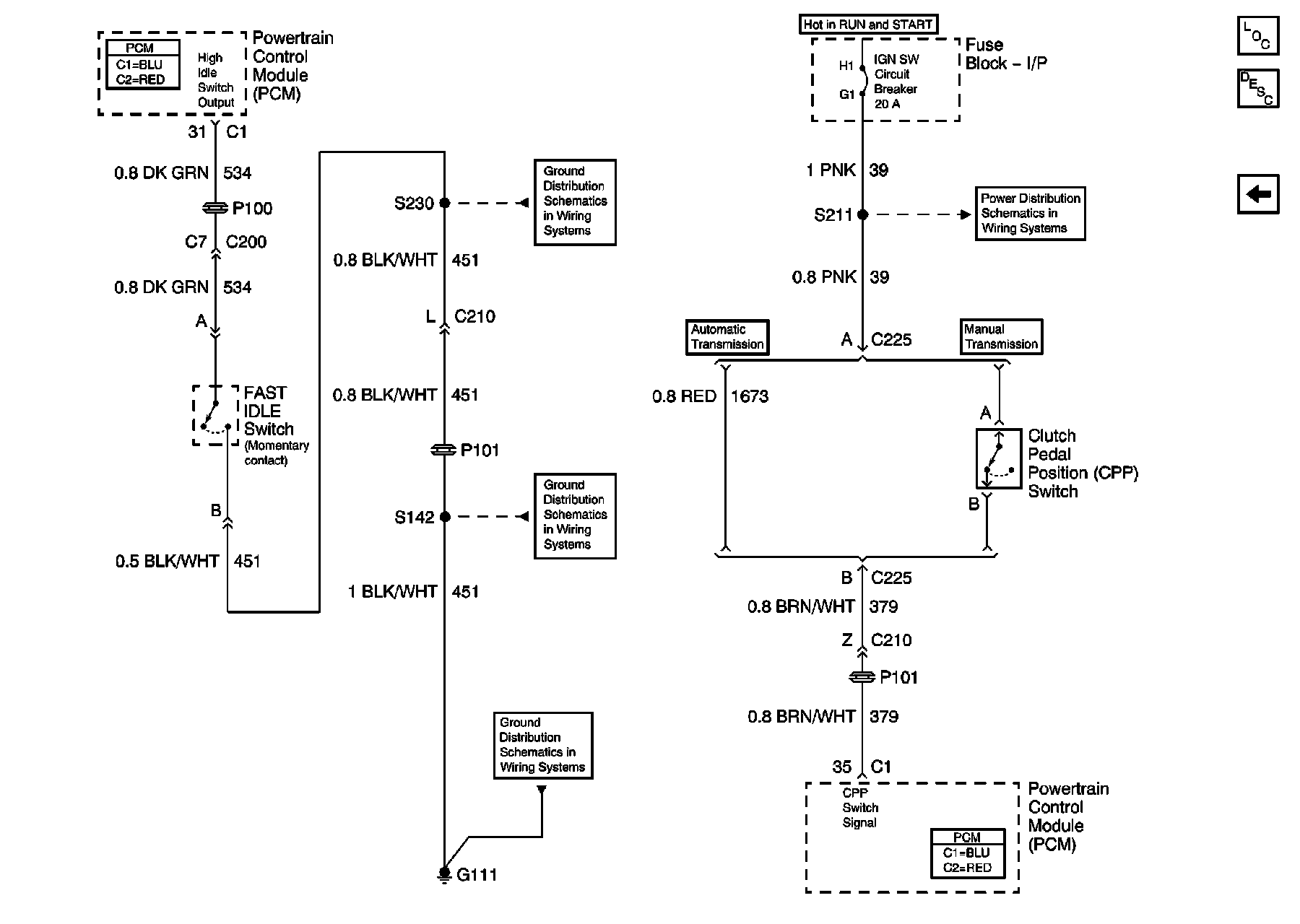

Clutch Pedal Position Fast, Idle
