Cruise Control Schematics (LG5)

Cruise Control Schematics (LG5)

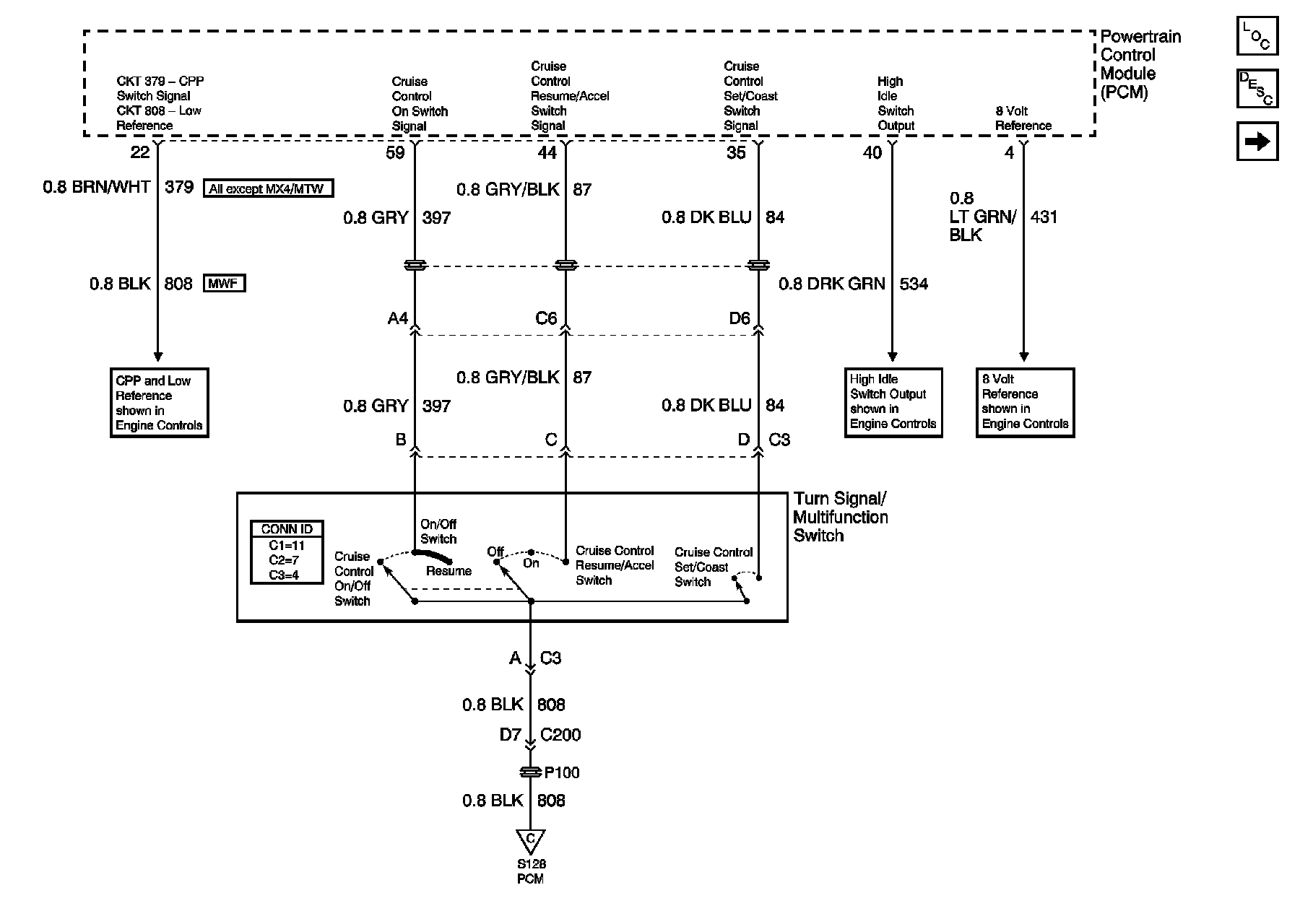

Cruise Control Enable

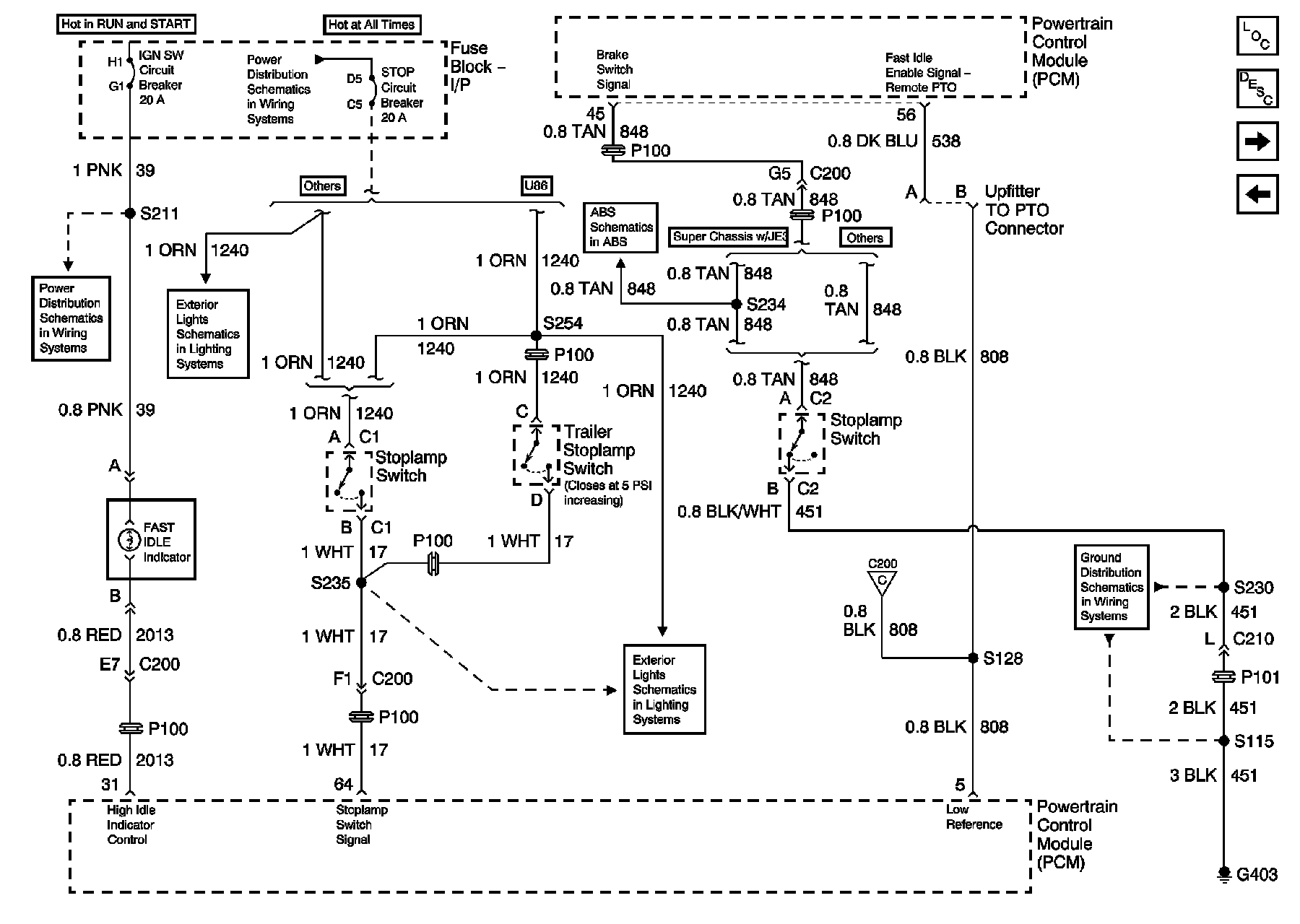

Stop Lamp Switch

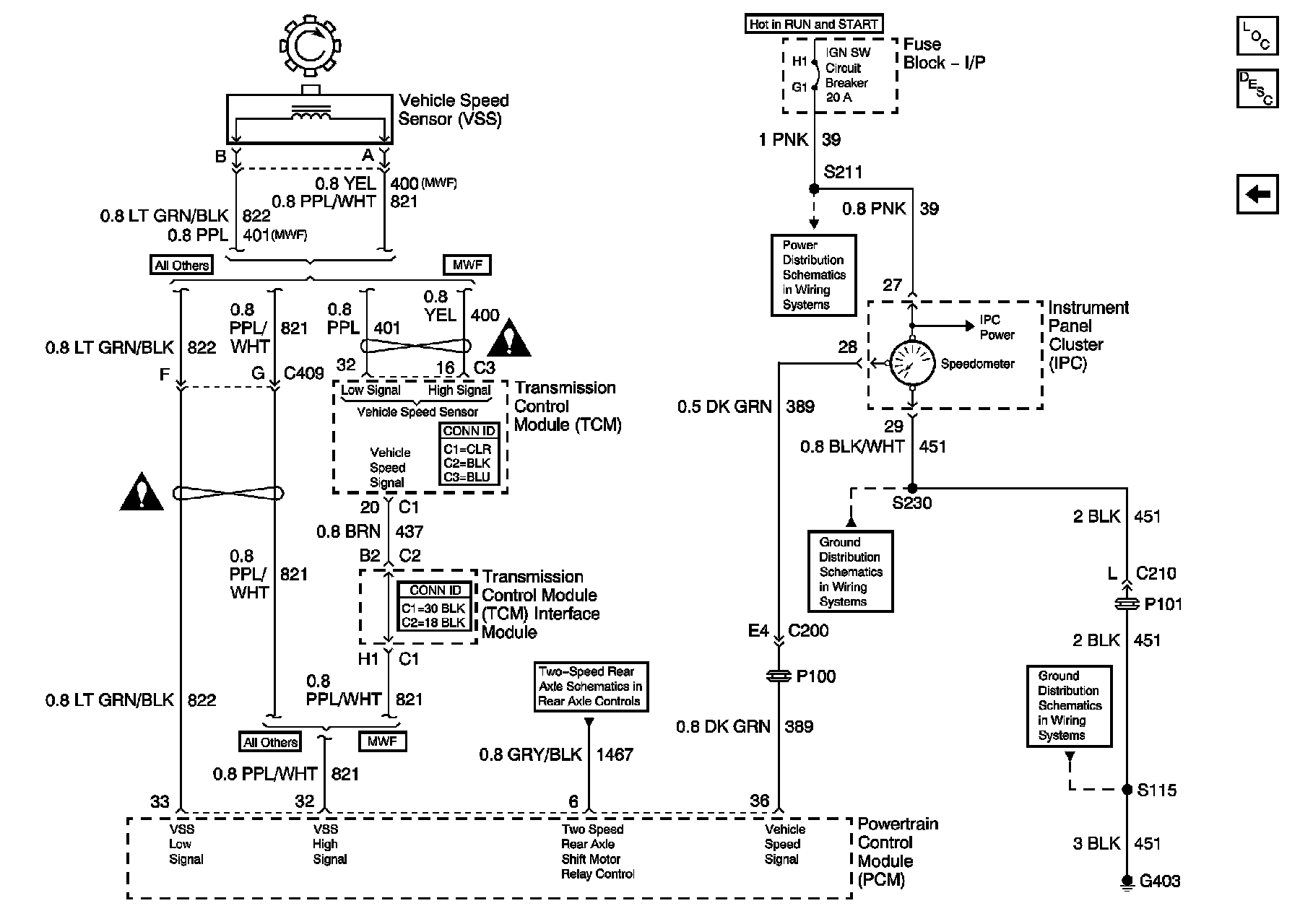

VSS (with MTW/MX4)

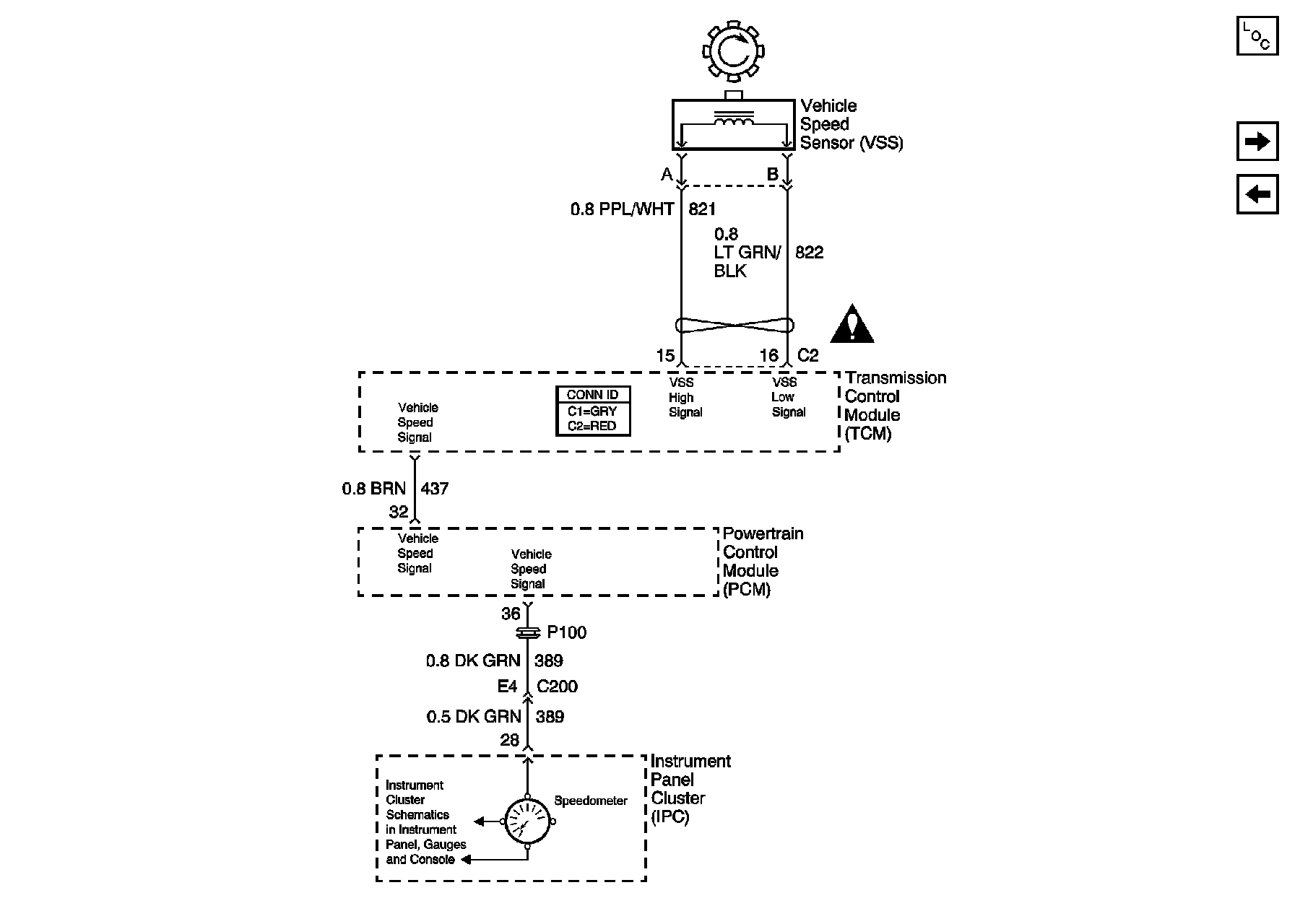

VSS (without MTW/MX4)
