Engine Exhaust Brake Electrical Schematics

Engine Exhaust Brake Electrical Schematics

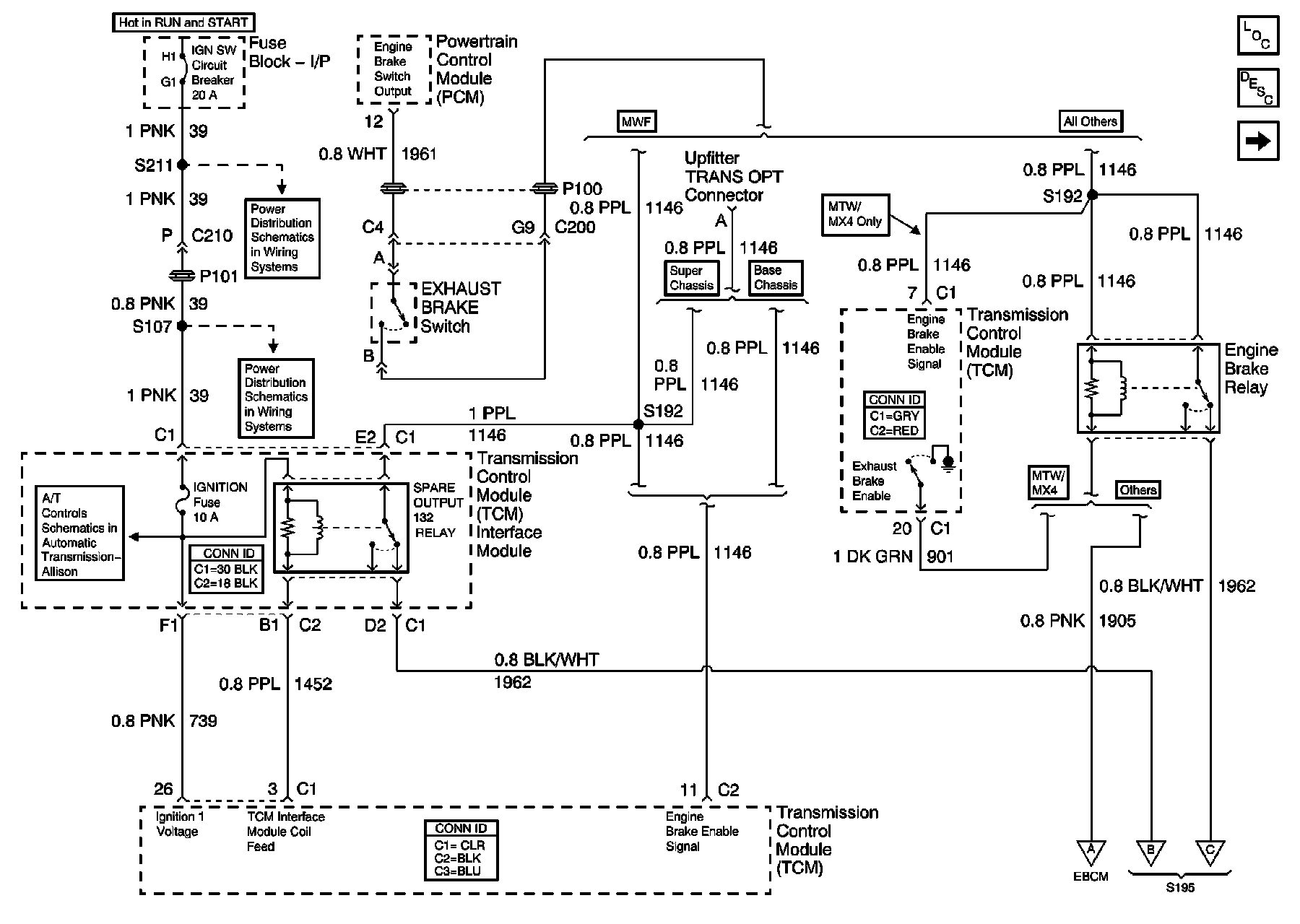

Engine Brake Relay and ICM Interface

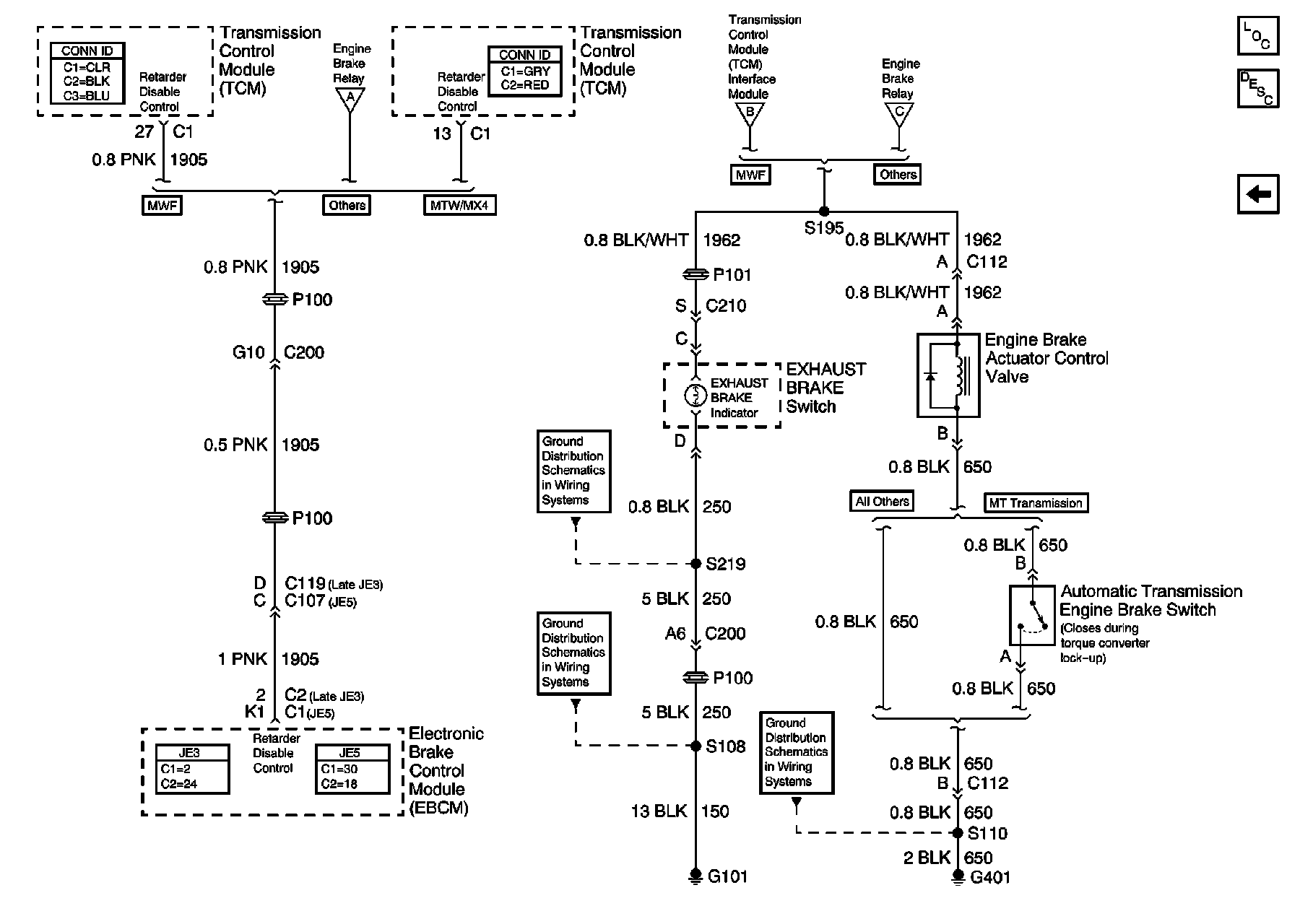

Engine Brake Enable, Indicator and Valve
