Exterior Lights Schematics
Exterior Lights Schematics
Circuit Power, Relays

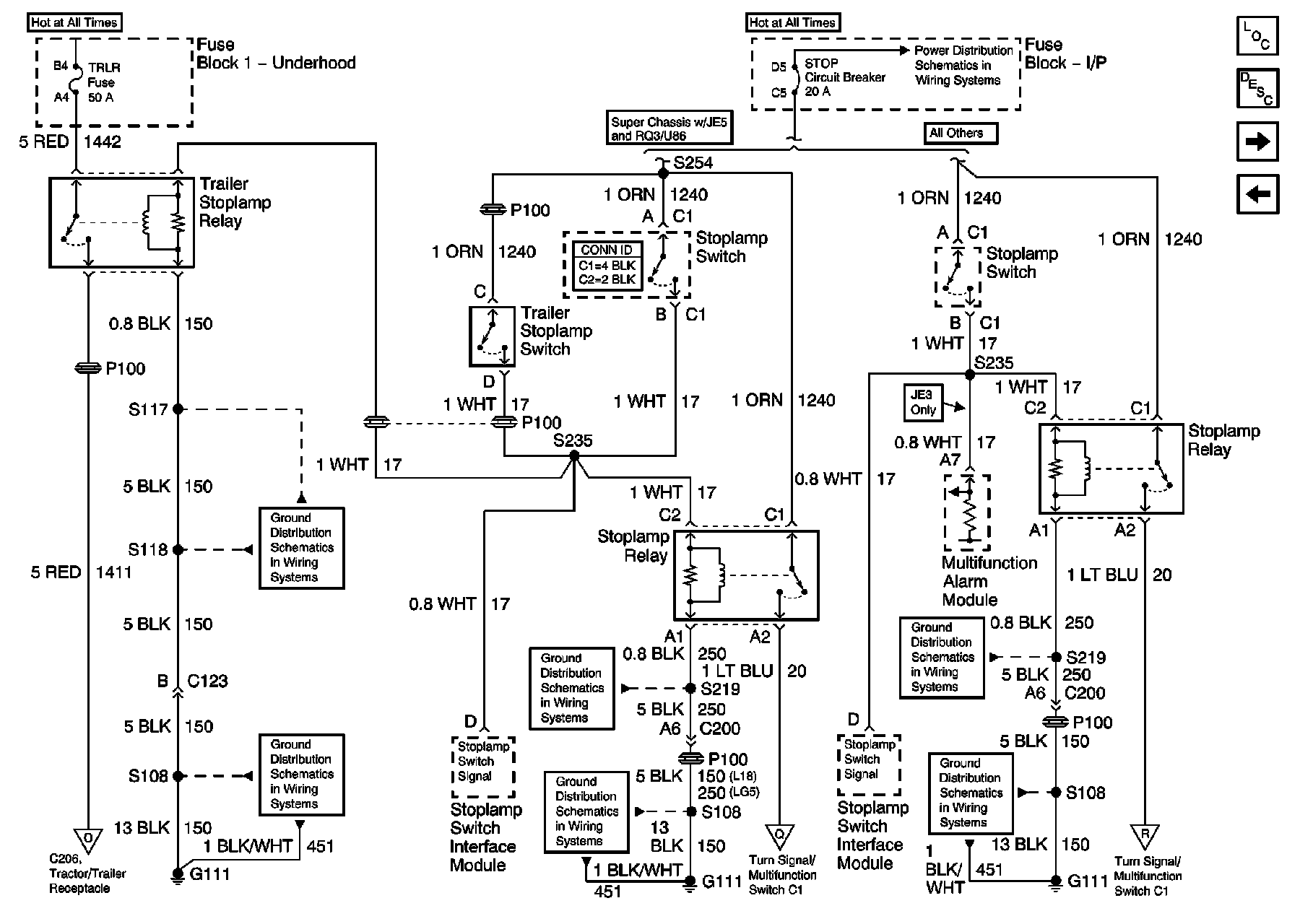

Stop Lamps, Trailer Stop Relay (L18)
Stop Lamp Relays Trailer, Stop Relays (LG5)

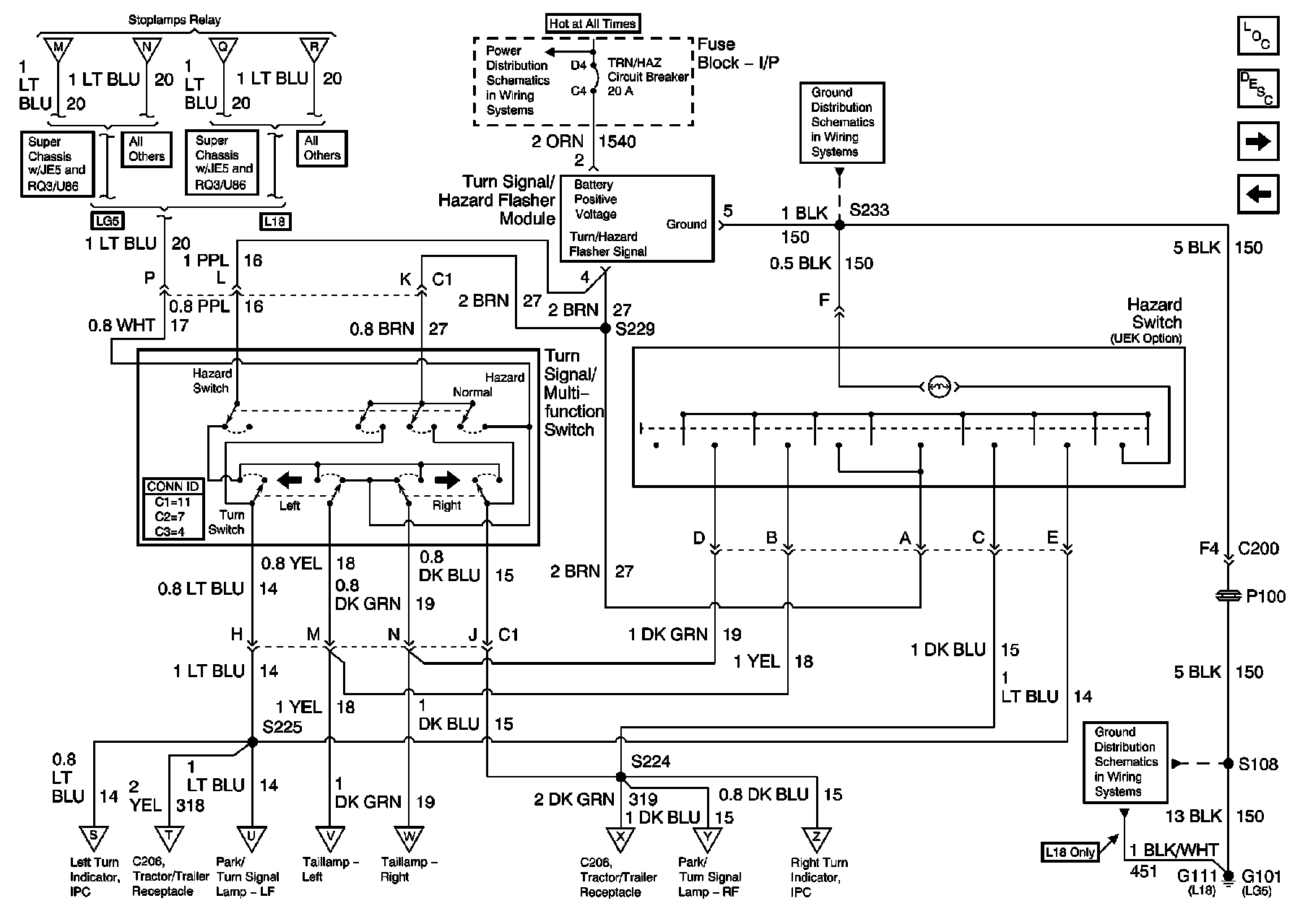

Turn Signal Switch, Hazard Switch
Park/Turn Signal Lamp, Tail Lamps IPC Indicators

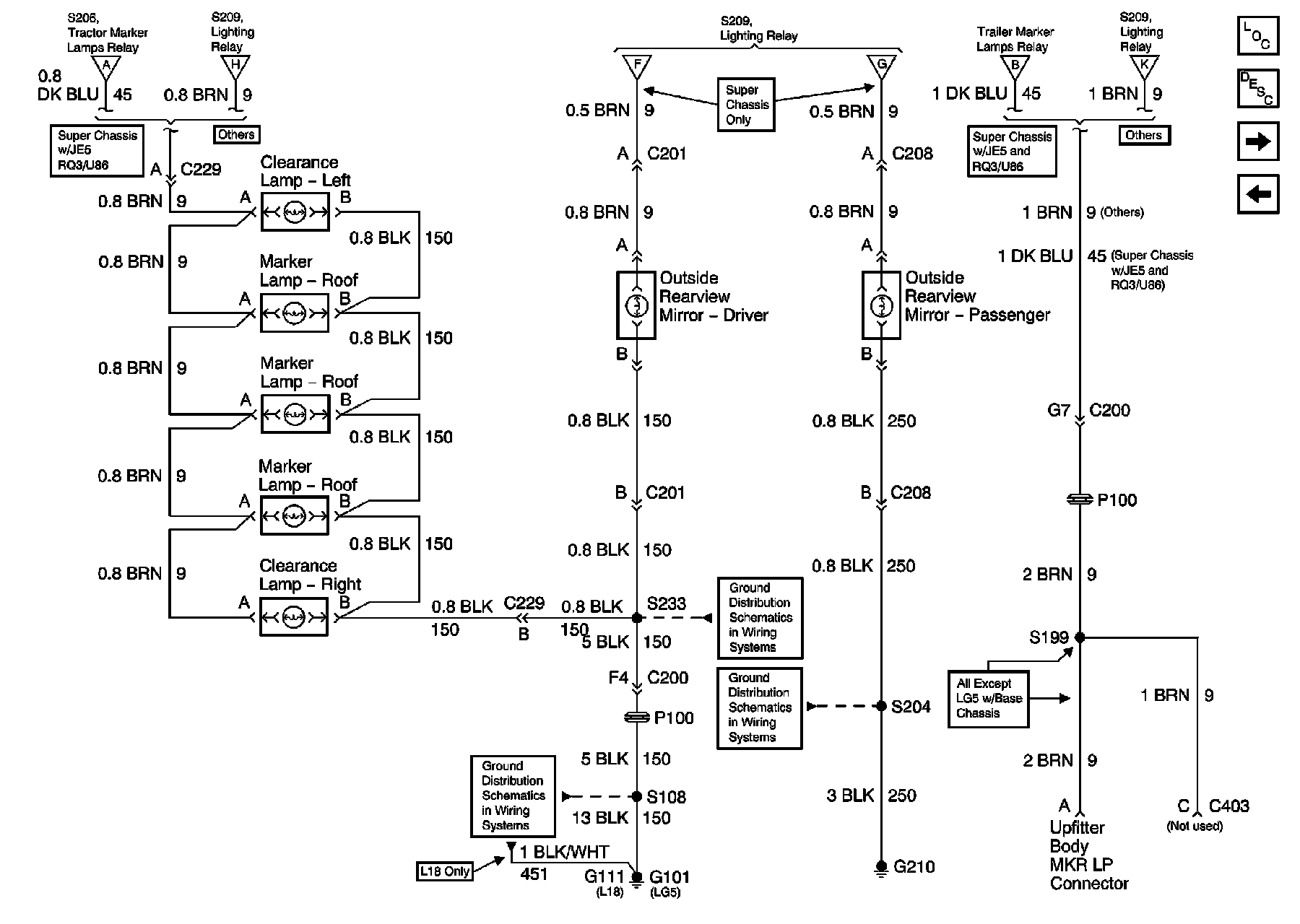

Clearance and Roof Marker Lamps, Outside Rearview Mirrors, Upfitter Provisions

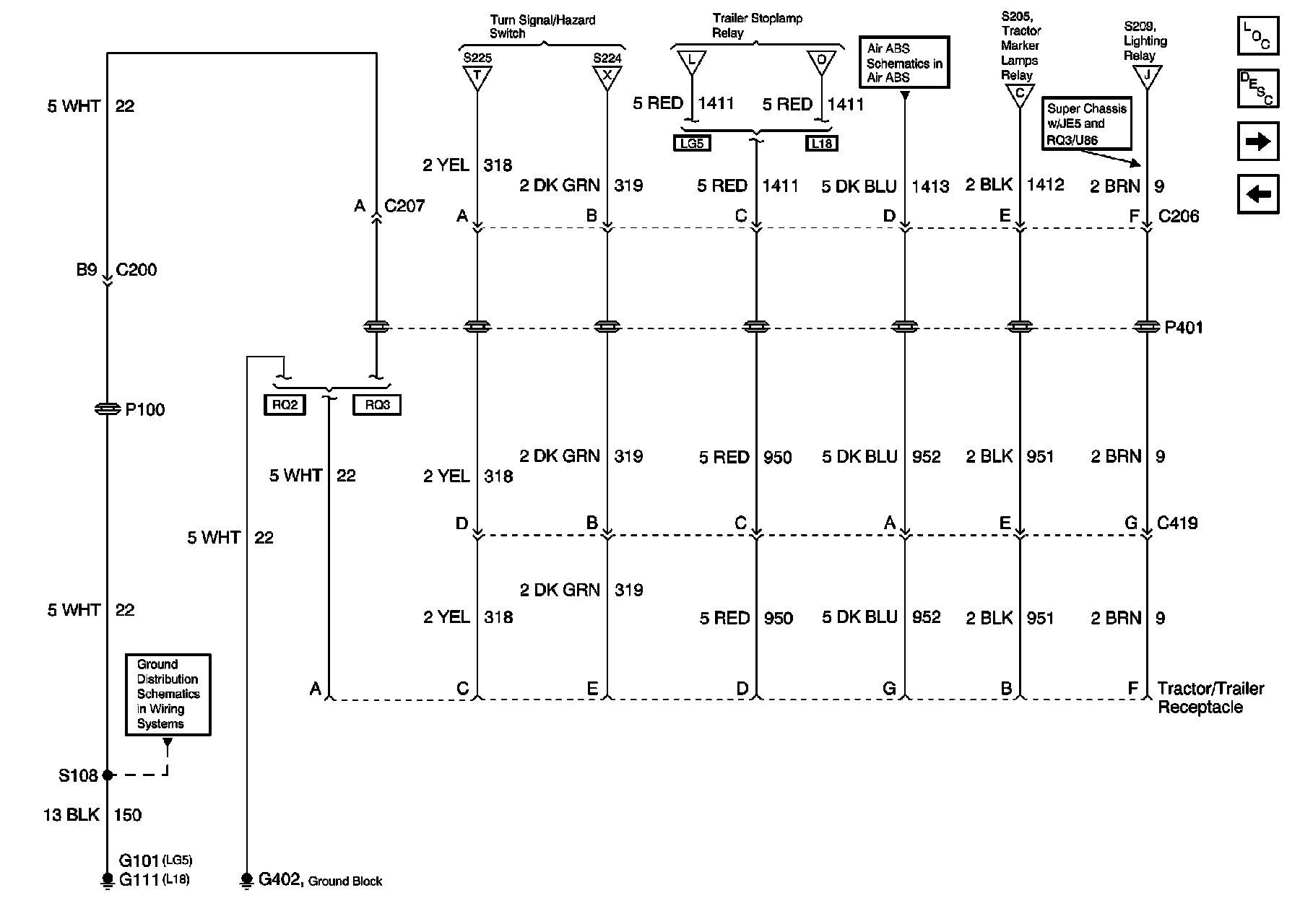

Trailer Lighting
Backup Lamps
