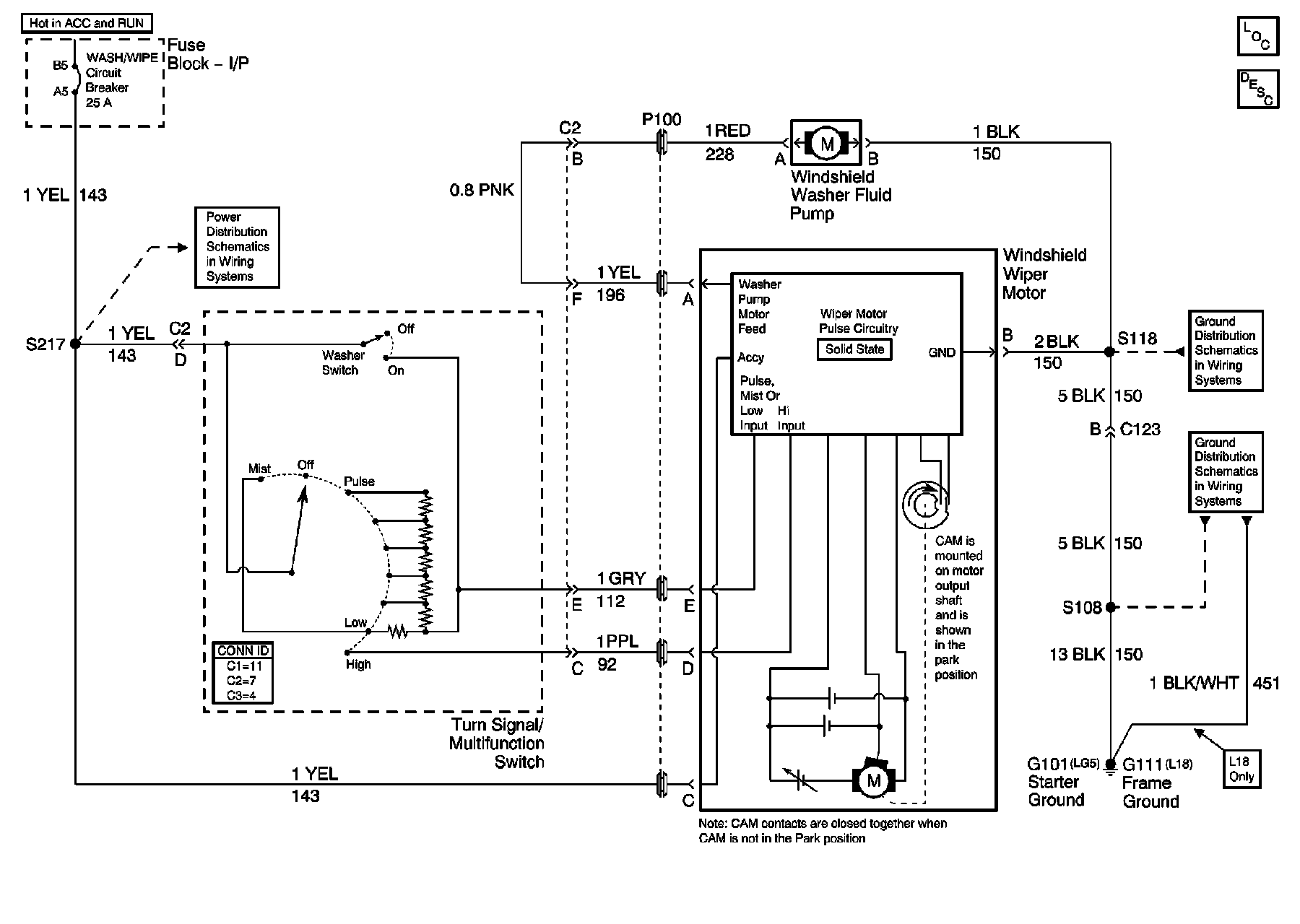

Wiper/Washer System Schematics (with CD4)
Wiper/Washer System Schematics (with CD4)
Wiper/Washer System Schematics (with CD4)
