Heater Core: Service and Repair




Heater Core Replacement

Removal Procedure

1. Remove the HVAC module from the vehicle. Refer to Heater/Vent Module Replacement Service and Repair.

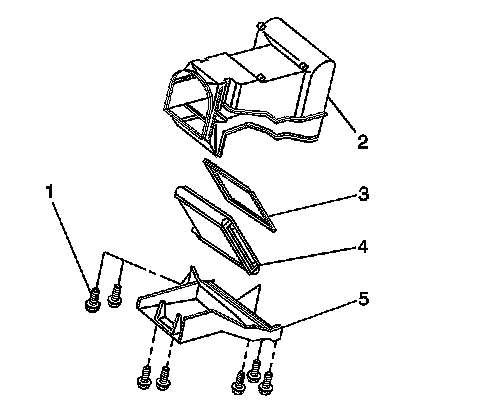

2. Remove the 7 screws that hold the heater cover to the heater case.
3. Remove the heater cover.
4. Remove the heater core from the retainer.

Installation Procedure




1. Install the heater core into the retainer.
2. Install the 7 screws that hold the heater cover to the heater case. Replace the seals.
3. Install the heater cover.
Verify that the heater cover is properly sealed.
4. Install the HVAC module to the vehicle. Refer to Heater/Vent Module Replacement Service and Repair.
