Transmission Temperature Gage Replacement (Console Mounted)

Transmission Temperature Gage Replacement (Console Mounted)

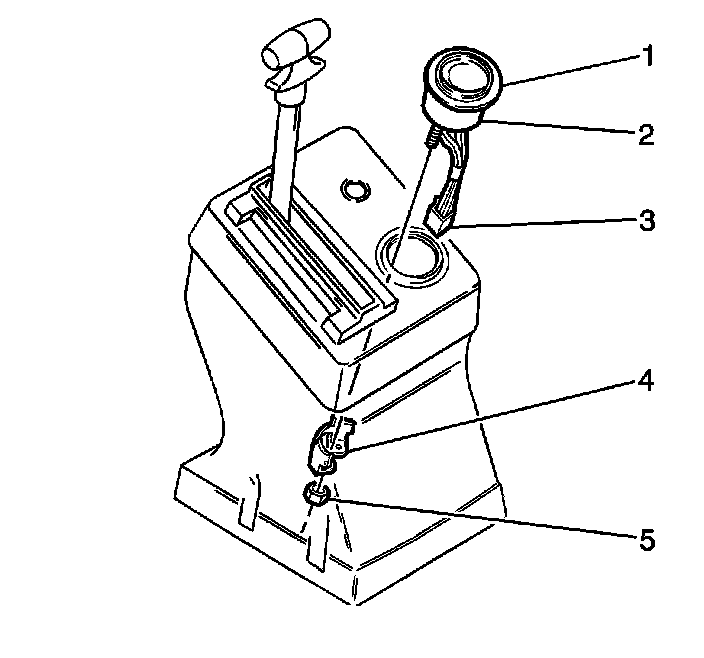

Removal Procedure




1. Remove the 4 screws from the transmission selector housing bezel.
2. Remove the bezel from the housing.
3. Disconnect the transmission temperature gage harness connector (3).
4. Remove the transmission temperature gage nuts (5).
5. Remove the transmission temperature gage clamp (4).
6. Remove the transmission temperature gage (2) from the transmission selector housing.

Installation Procedure




1. Install the transmission temperature gage (2) to the transmission selector housing.
2. Install the transmission temperature gage clamp (4) over the gage studs.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the transmission temperature gage nuts (5).

Tighten the transmission temperature gage nuts to 2 Nm (18 lb in).

4. Connect the transmission temperature gage harness connector (3).
5. Install the transmission selector housing bezel.
6. Install the 4 transmission selector housing bezel retaining screws.
