Power and Grounding Component Views

Power and Grounding Component Views

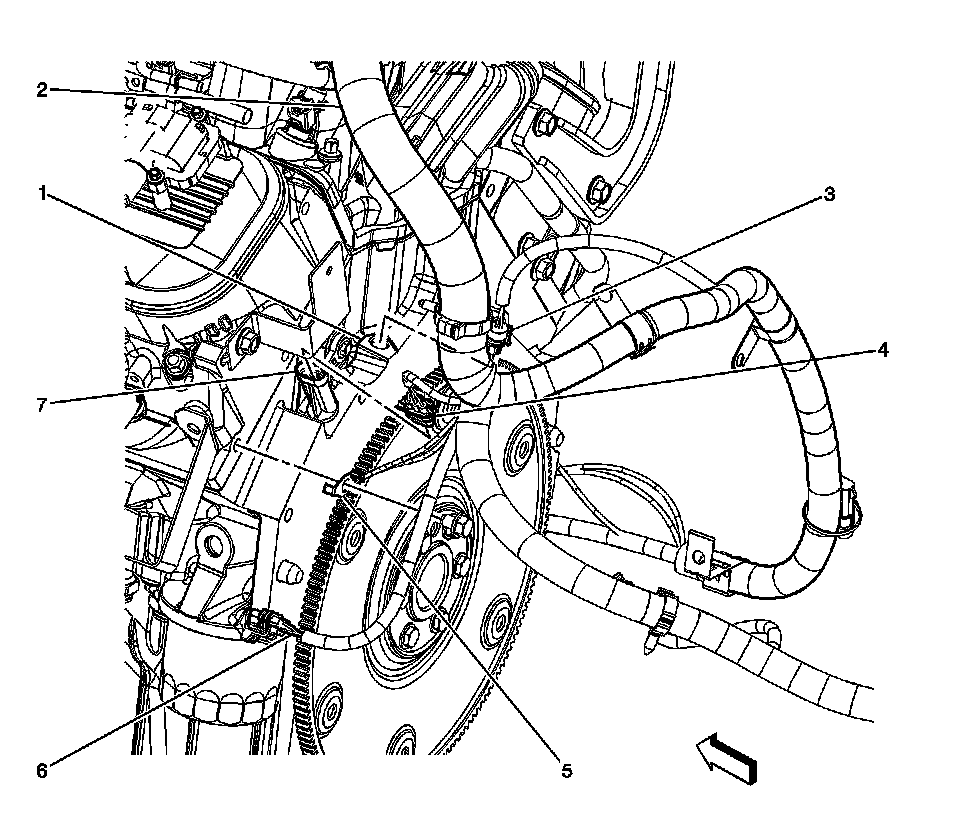

Rear of Engine Block




1 - Engine Oil Pressure (EOP) Switch
2 - Engine Harness
3 - Engine Oil Pressure (EOP) Switch Connector
4 - Crankshaft Position (CKP) Sensor Connector
5 - G115
6 - Heated Oxygen Sensor (HO2S)-LH
7 - Crankshaft Position (CKP) Sensor

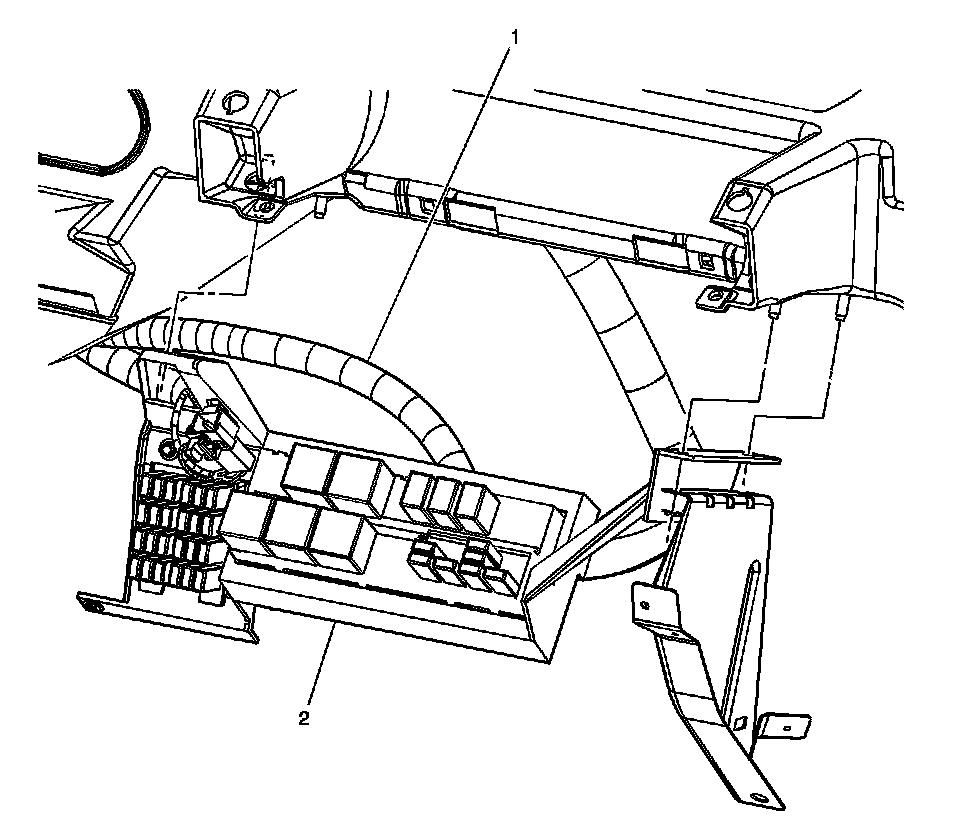

Lower Right Of I/P




1 - I/P Harness
2 - Fuse Block I/P

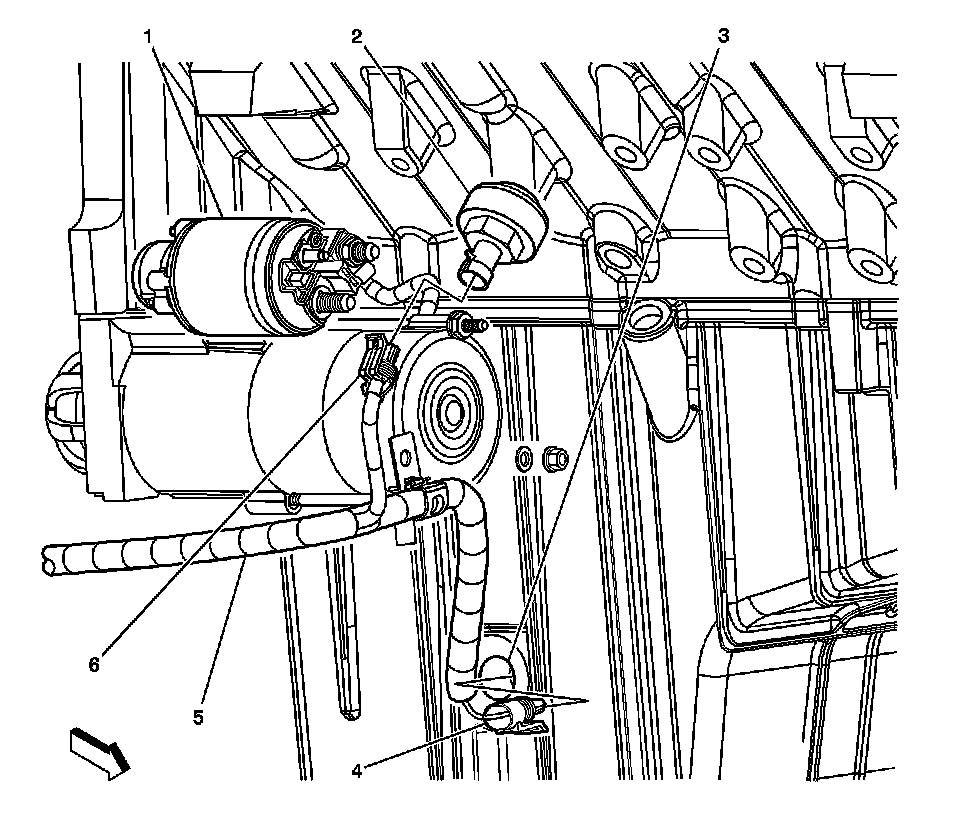

Lower Back of Engine




1 - Starter
2 - Knock Sensor (KS)
3 - Engine Oil Level Switch
4 - Engine Oil Level Switch Connector
5 - Engine Harness
6 - Knock Sensor (KS) Connector

Back Right of Engine Compartment




1 - Engine Harness
2 - Fuse block-Underhood
3 - Remote Battery Stud
4 - Positive Battery Cable

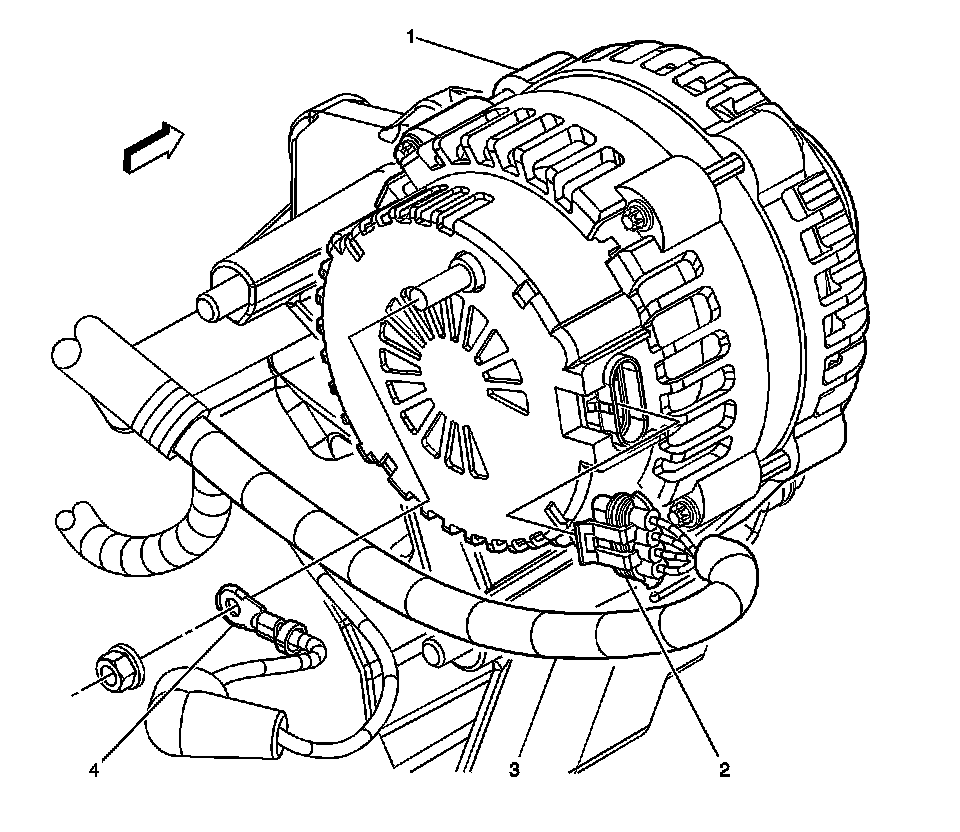

Front of Engine




1 - Generator
2 - Generator Assembly
3 - Engine Harness
4 - Generator Ring Terminal
