Ground Distribution Schematics
Ground Distribution Schematics

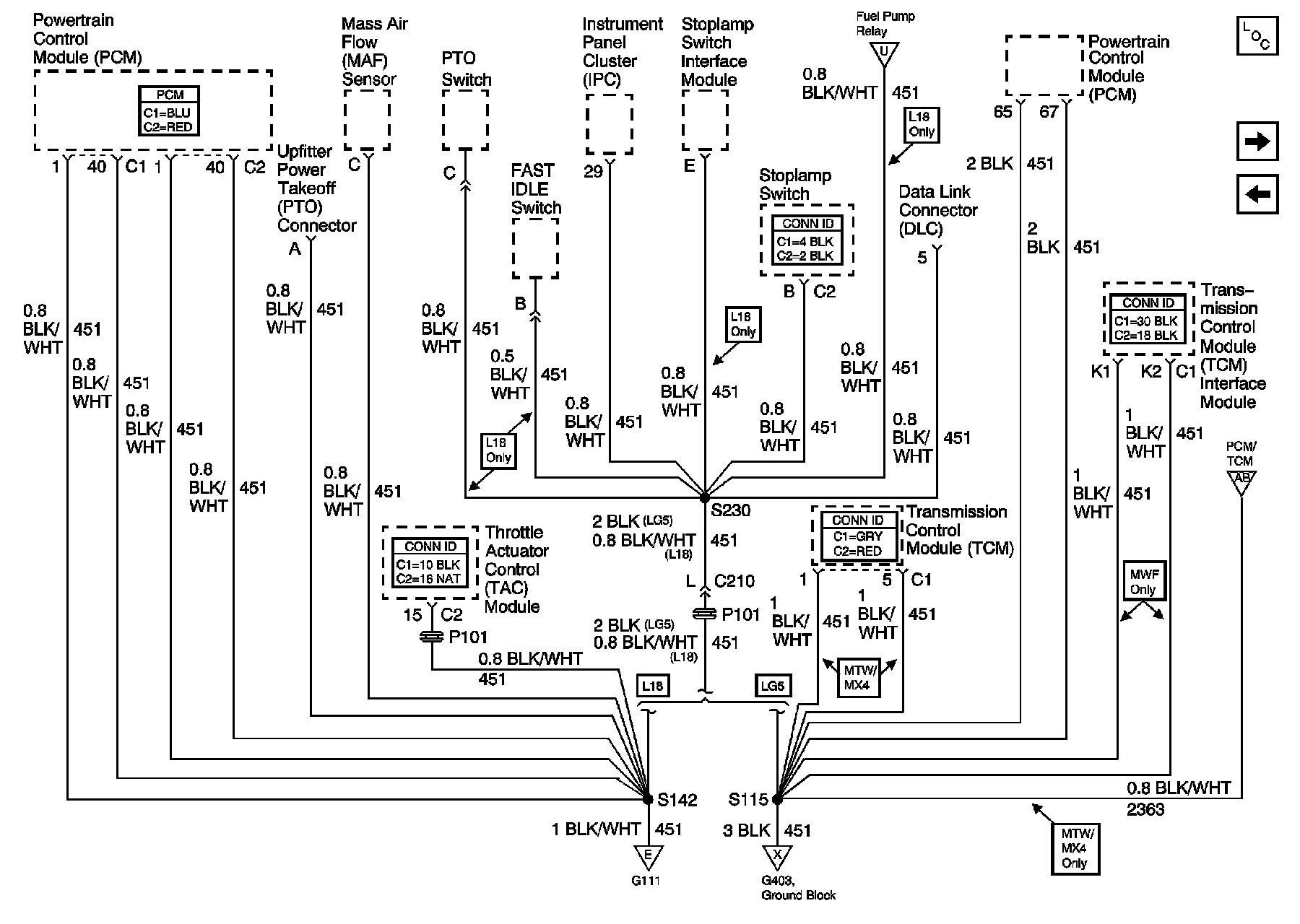

S142, (L18), S115 (LG5), S230

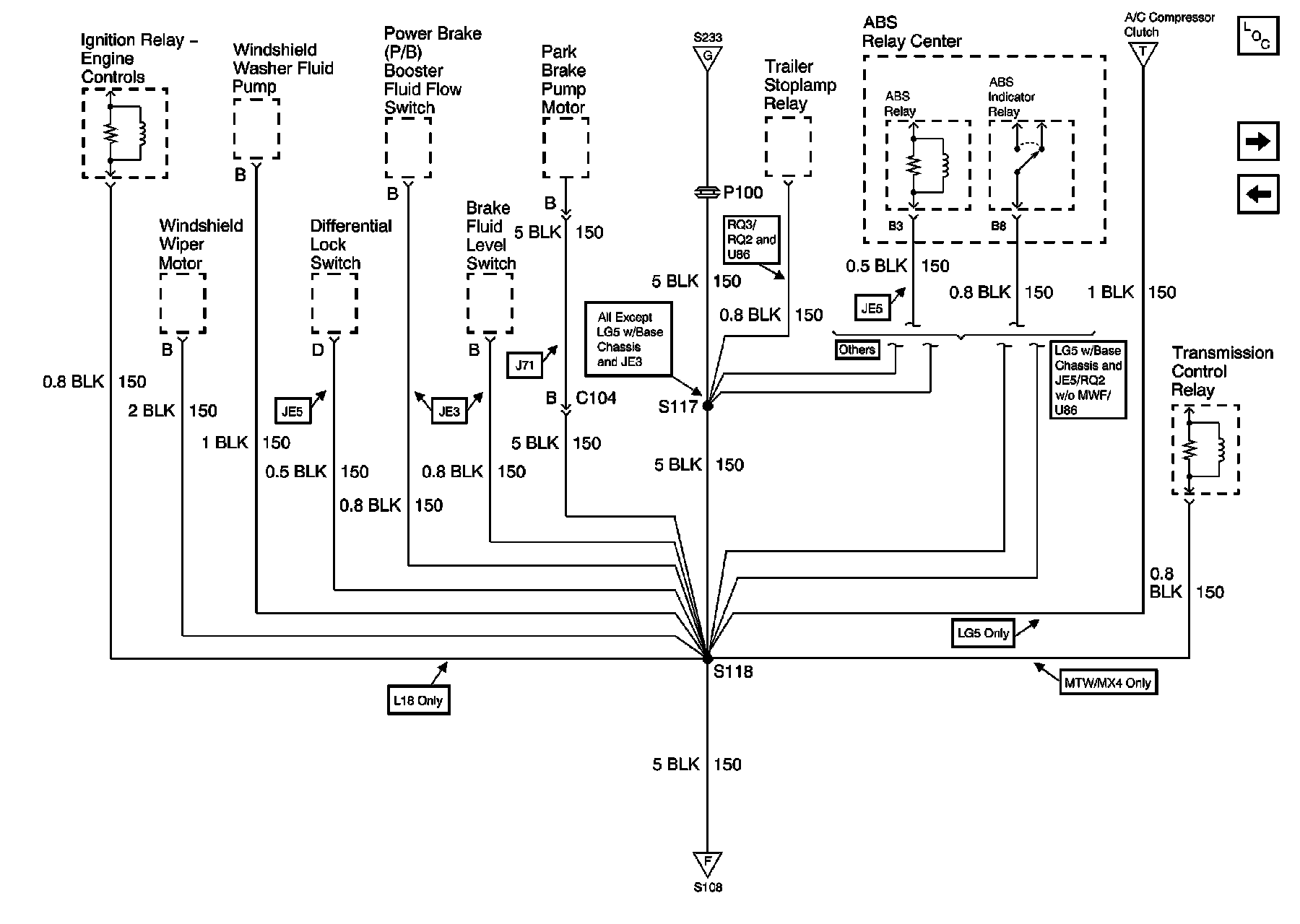

S117, S118

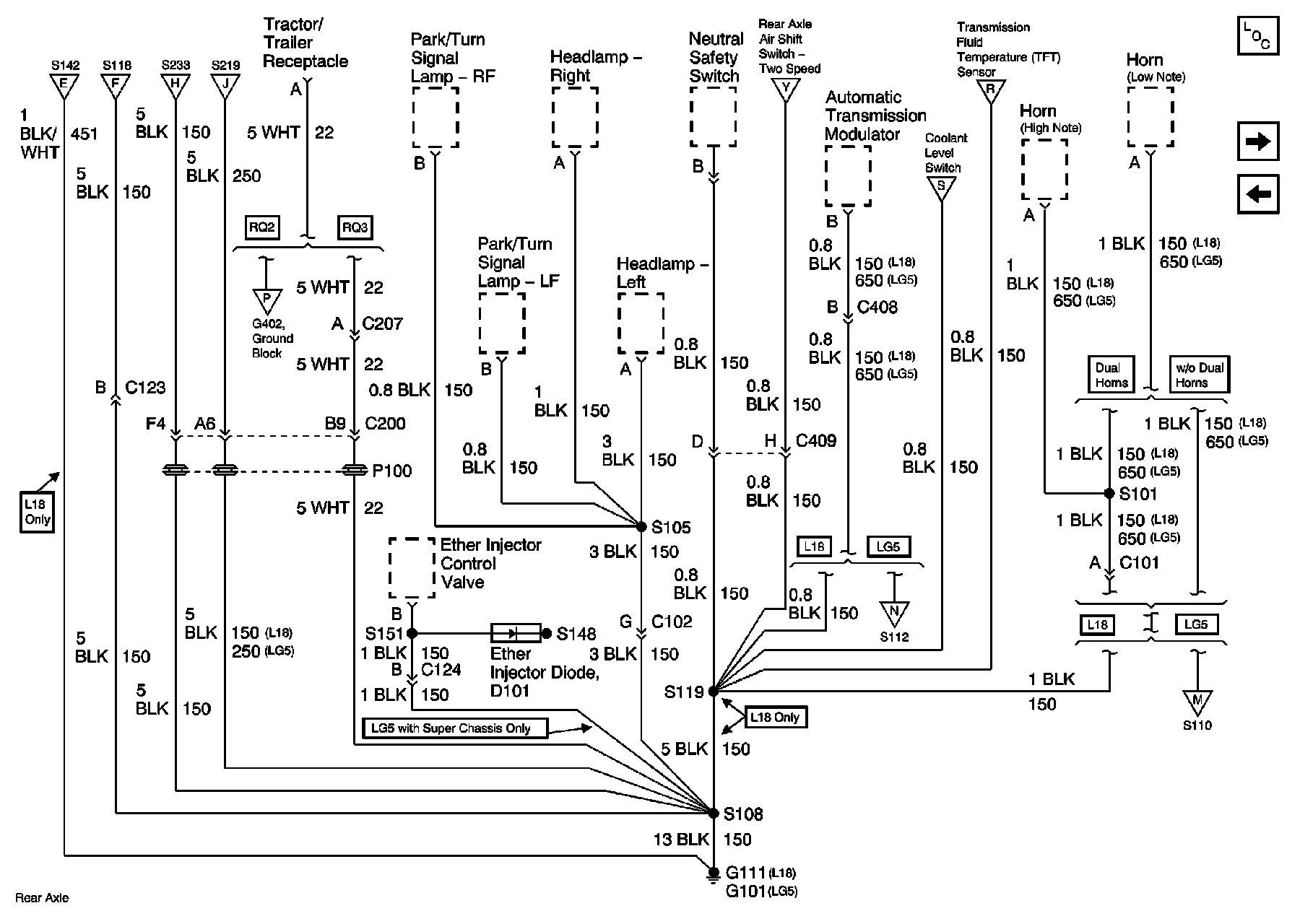

CHAS, Axle, Circuit Breakers

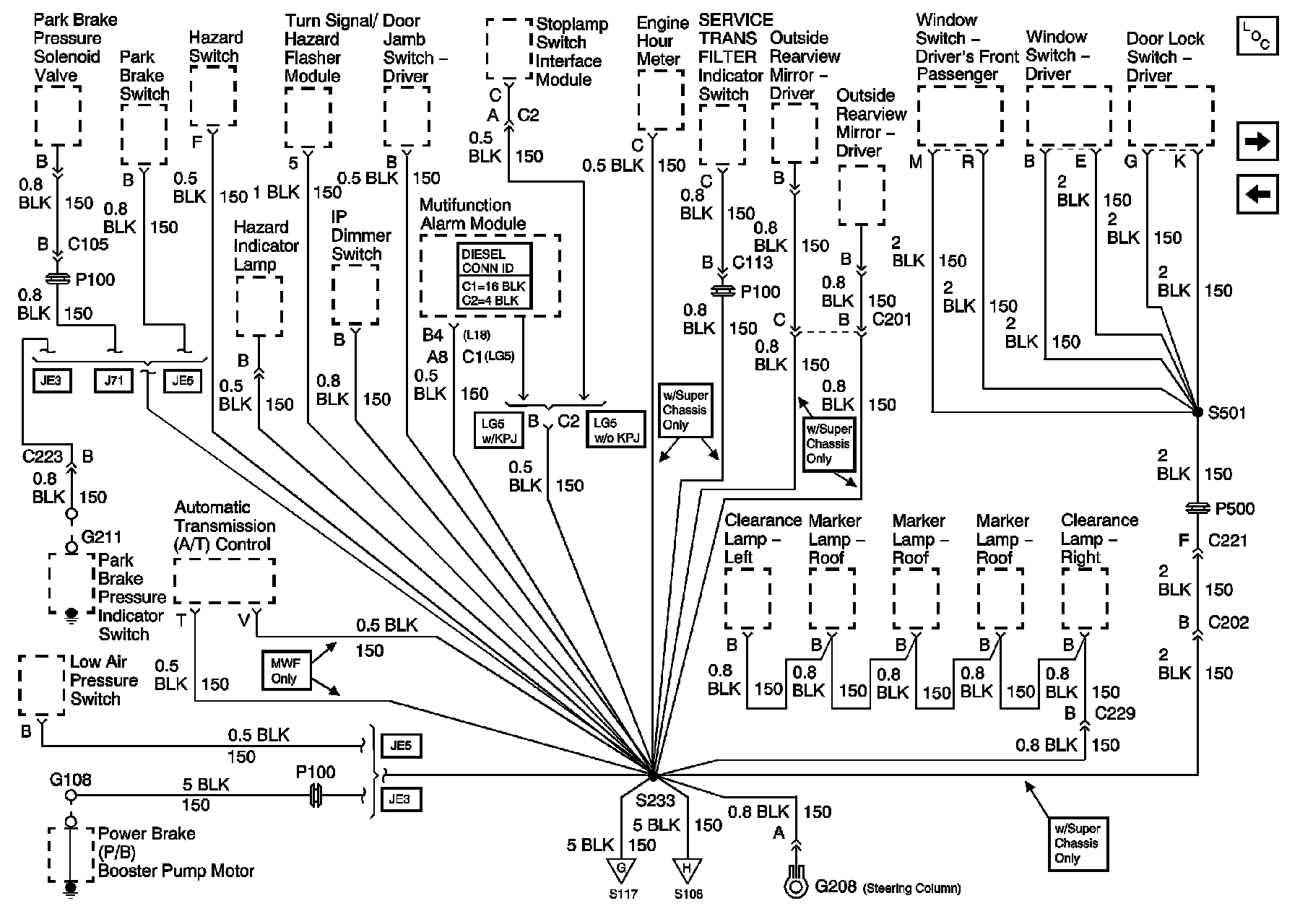

G208, S233, S501
G11 (L18), G101 (LG5)

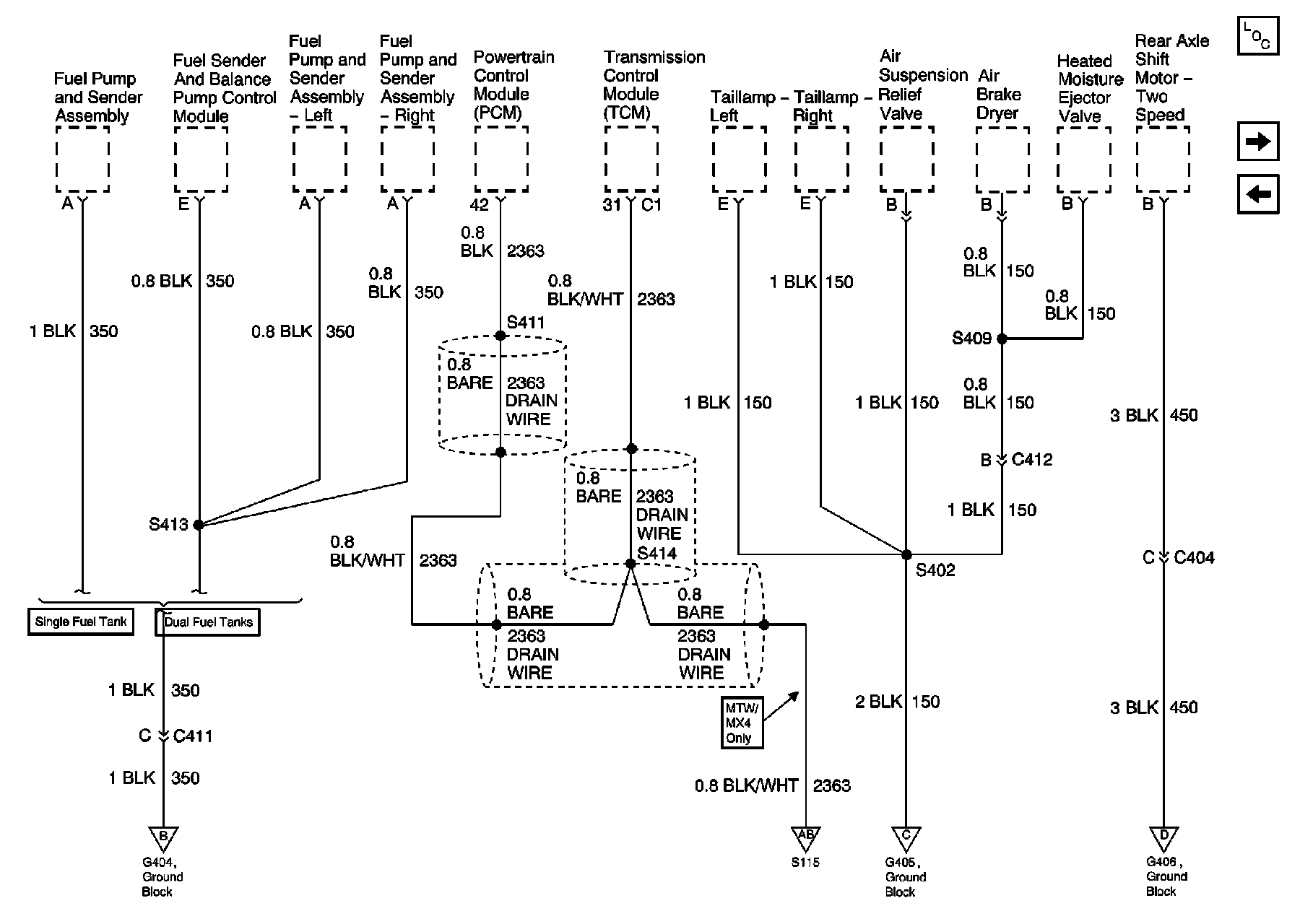

S402, S409, S411, S413, S414

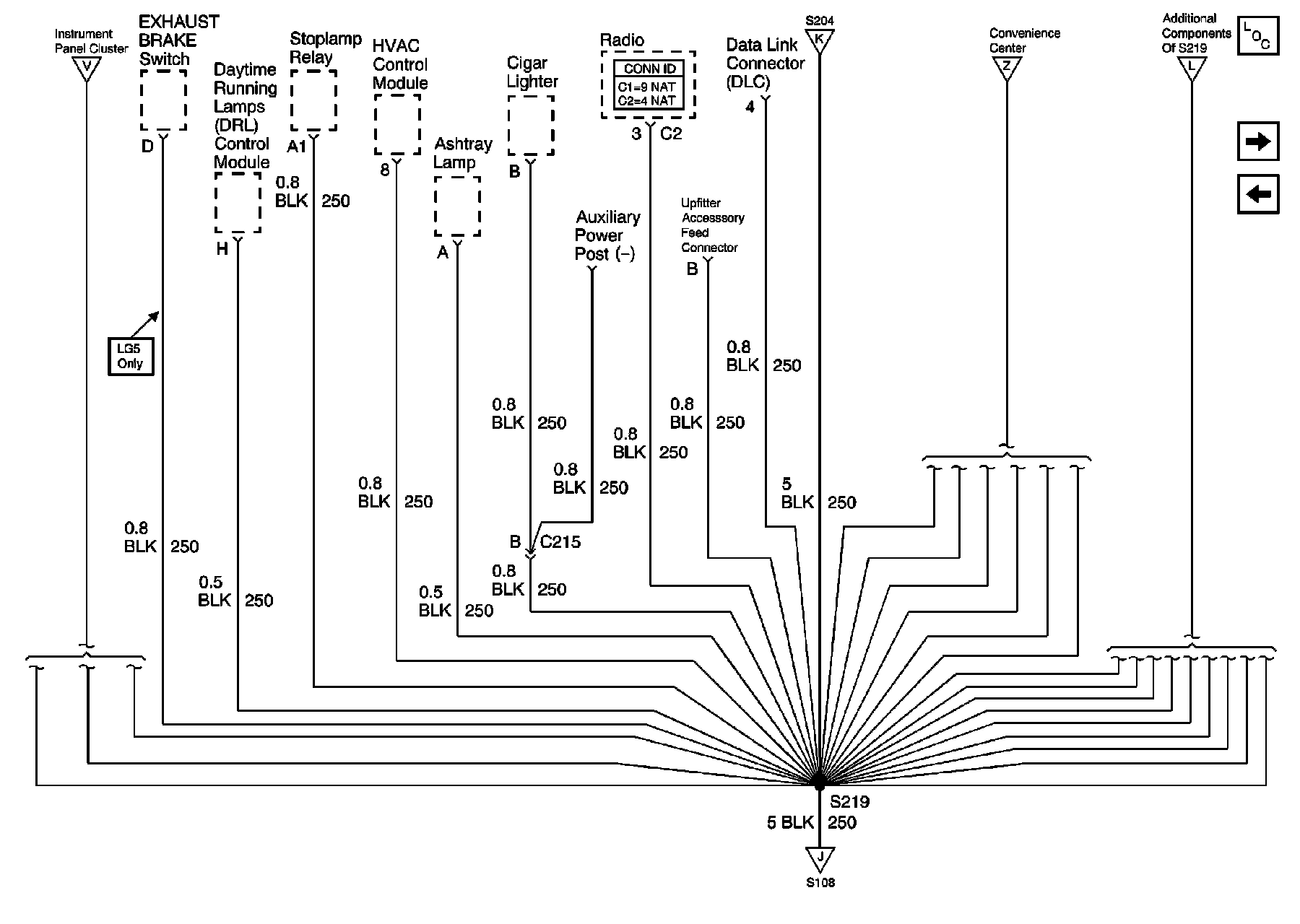

S219

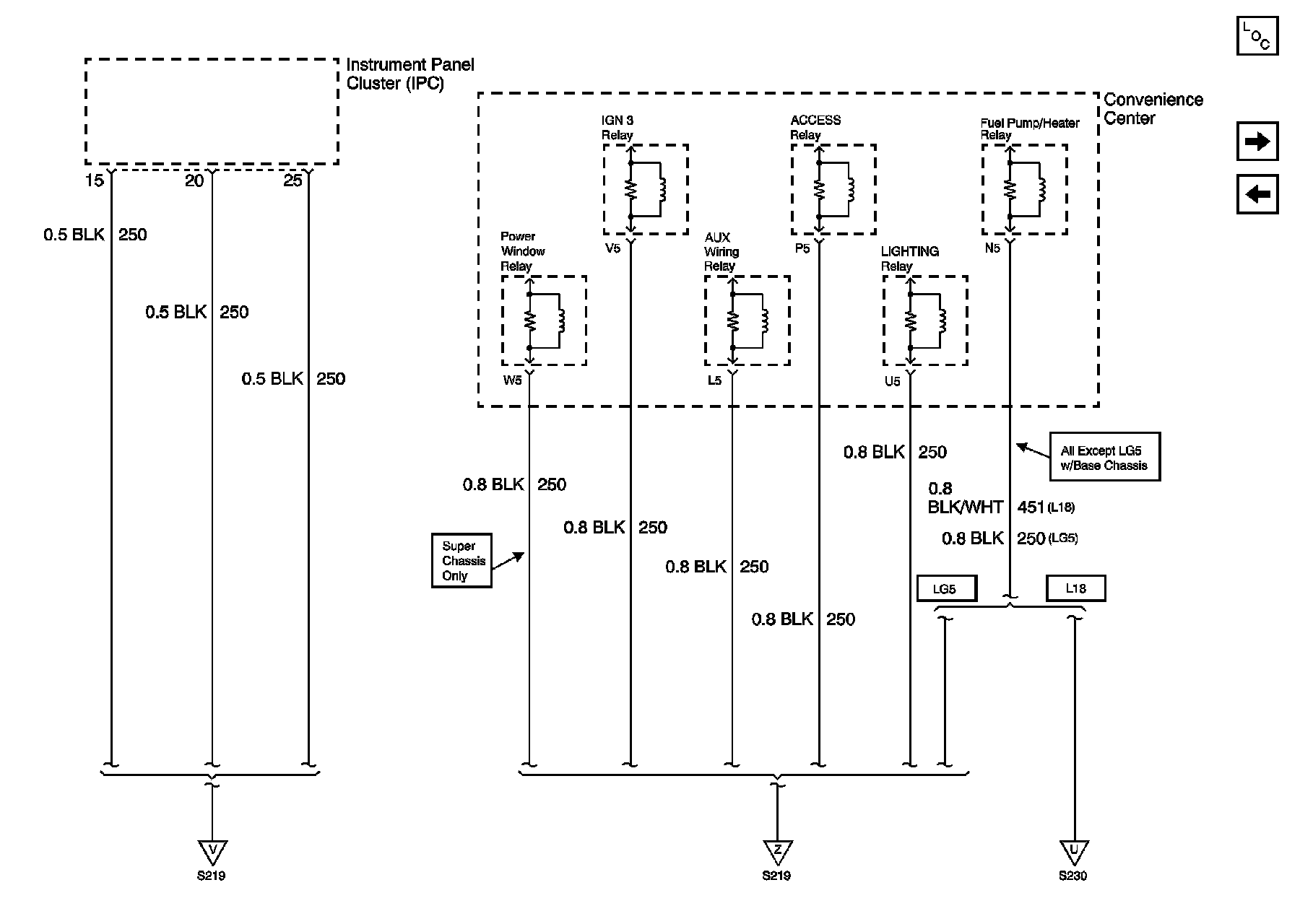

Instrument Panel Cluster Convenience Center

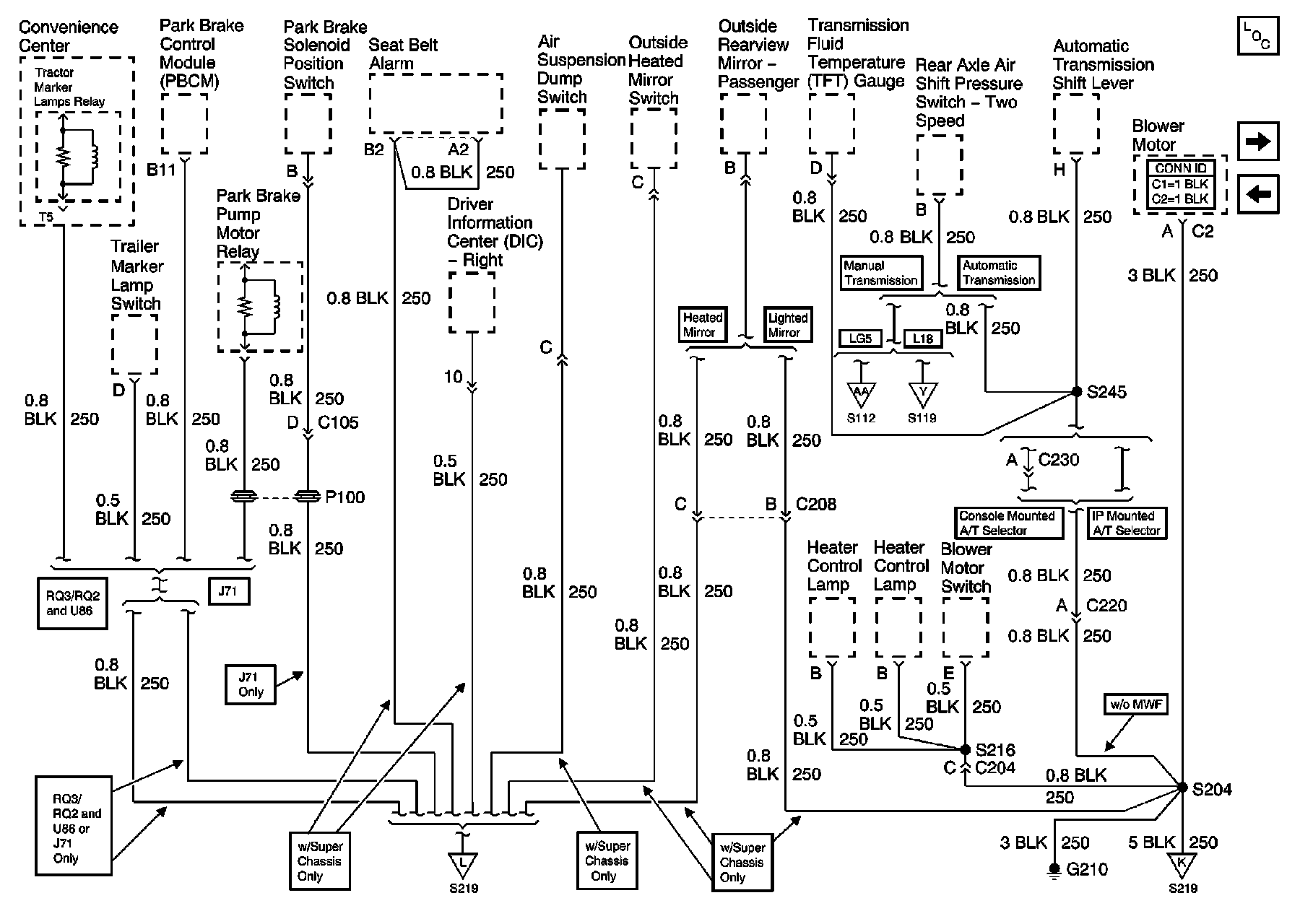

G210, S204, S216, S245

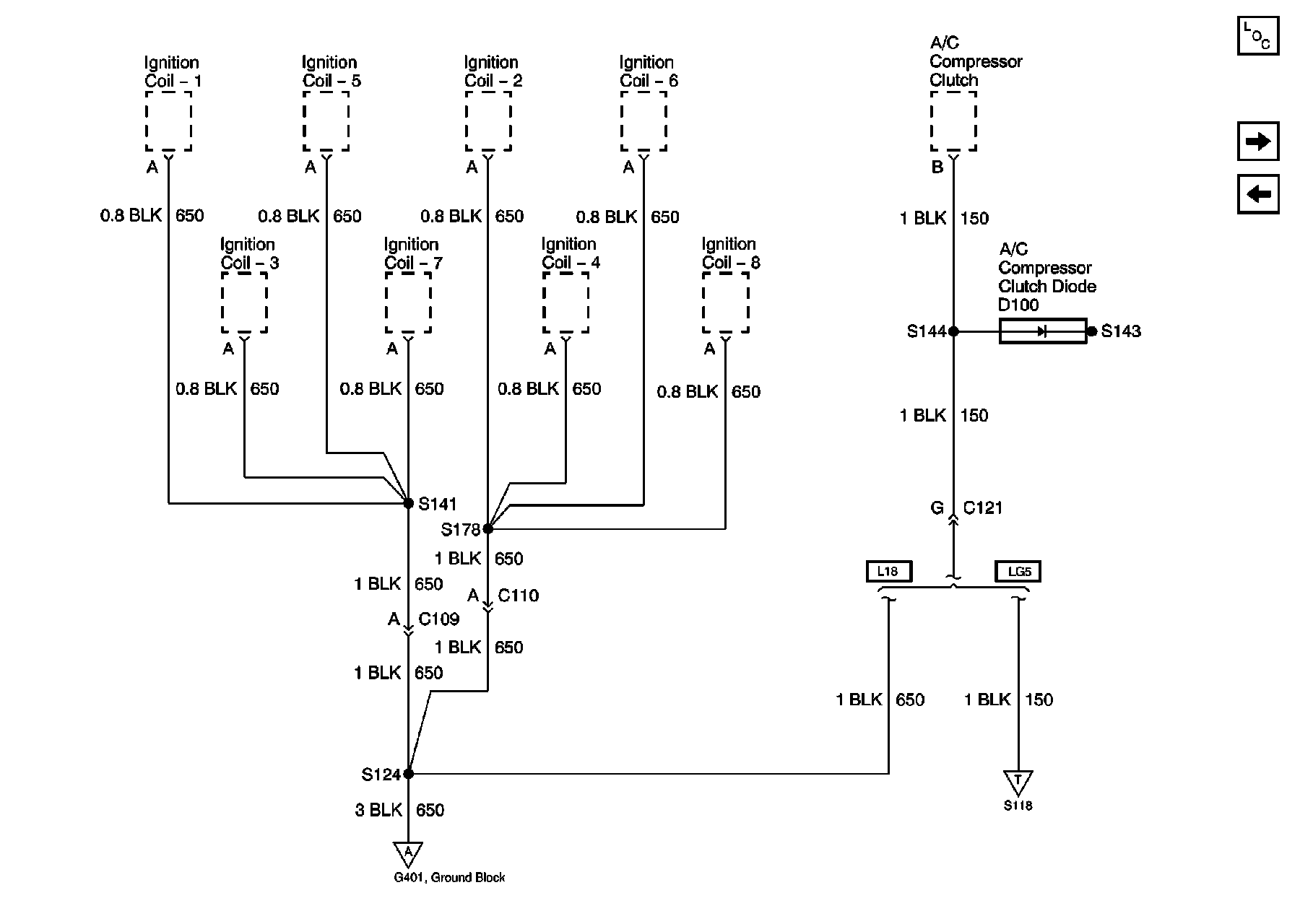

S124, S141, S178, S144

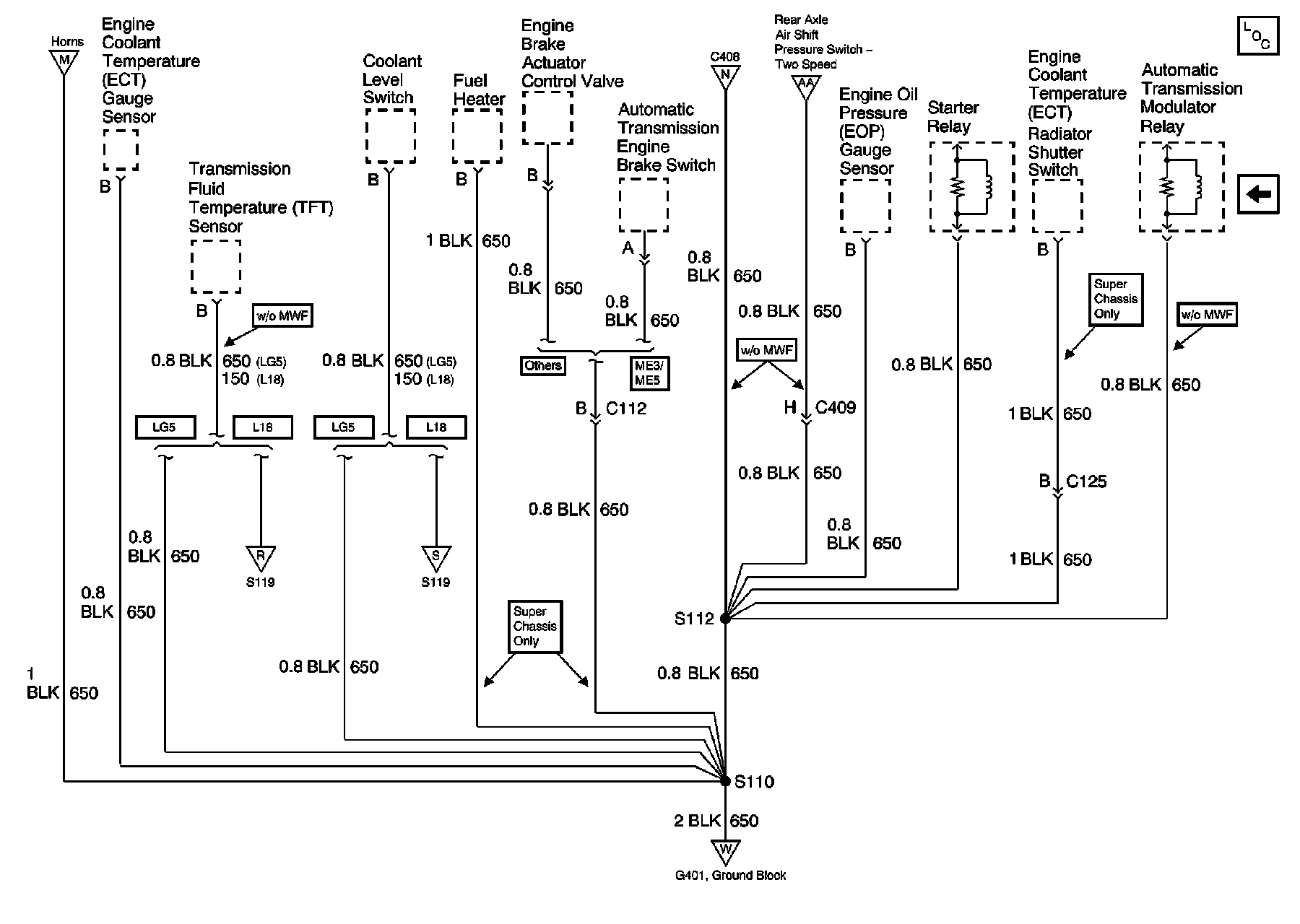

S110, S112
