Power Distribution Schematics
Power Distribution Schematics

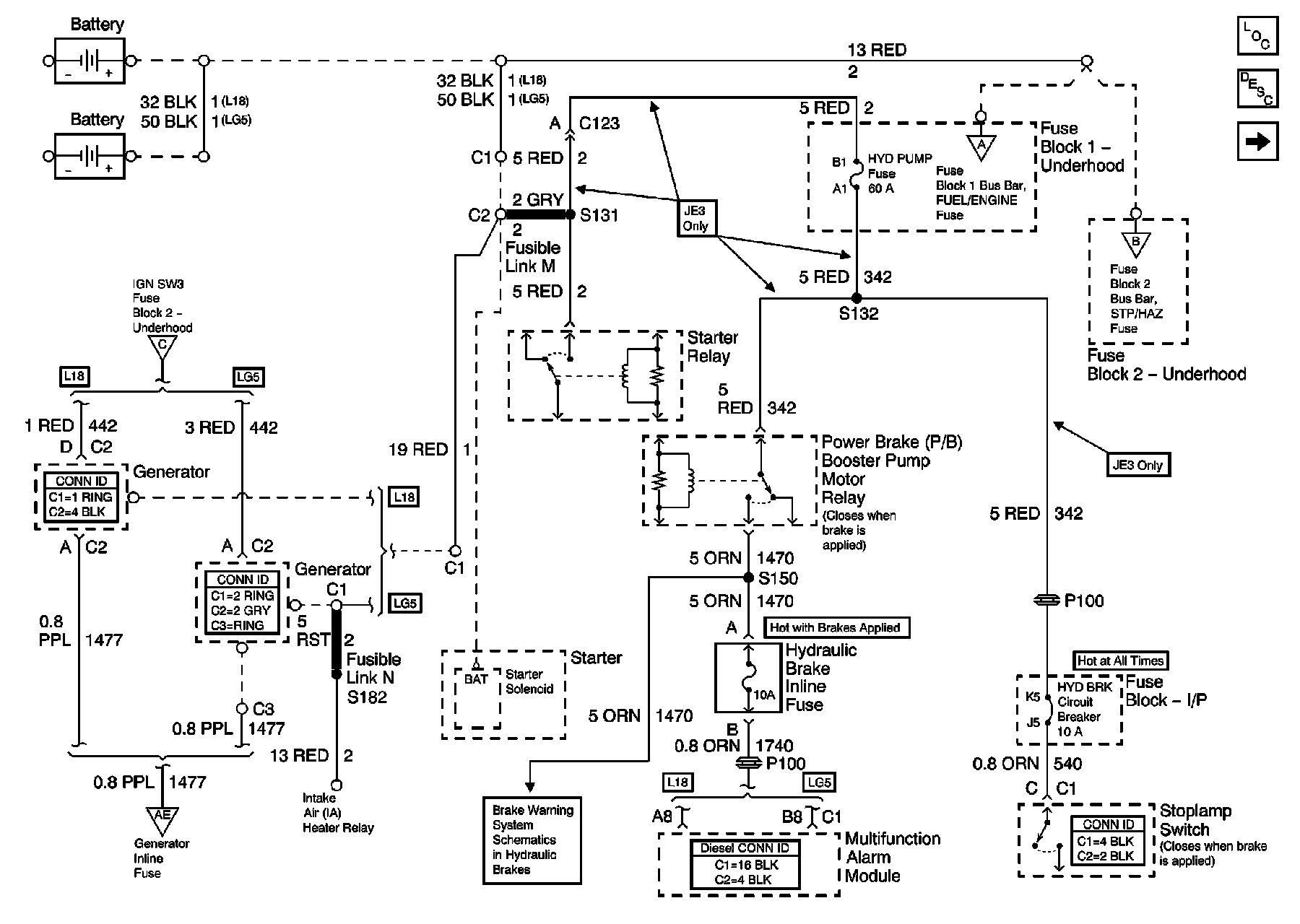

Battery, Hyd Pump Fuse, Hyd Brake, Circuit Breaker, Hydraulic Brake Fuse (1 of 2)
Battery, Hyd Pump Fuse, Hyd Brake, Circuit Breaker, Hydraulic Brake Fuse (2 of 2)
Park Brake, Trans/Trlr, Trlr, PWDWDO/LKS, ABS Fuses

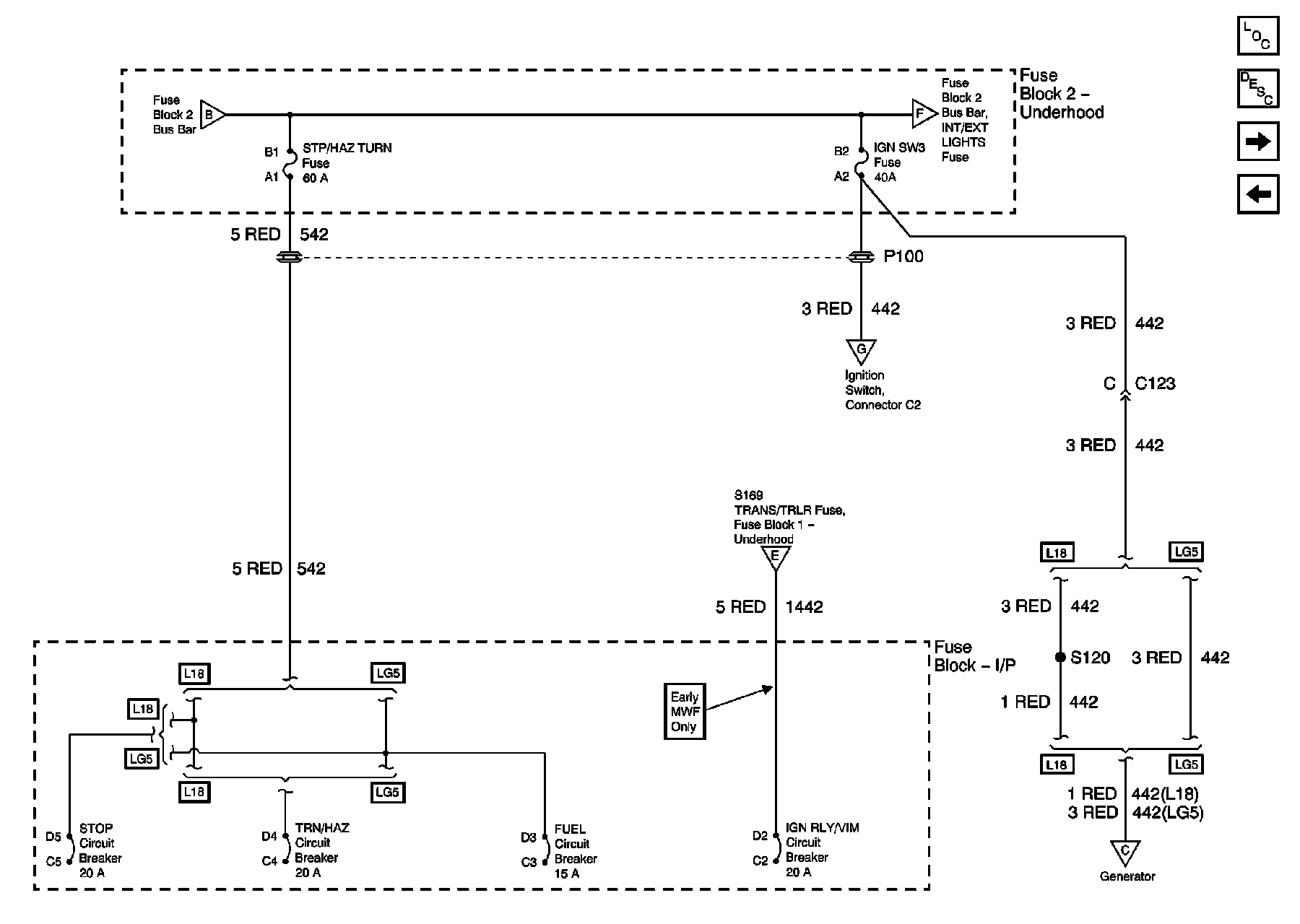

Stop/Hazard Turn, IGN 3 Fuses

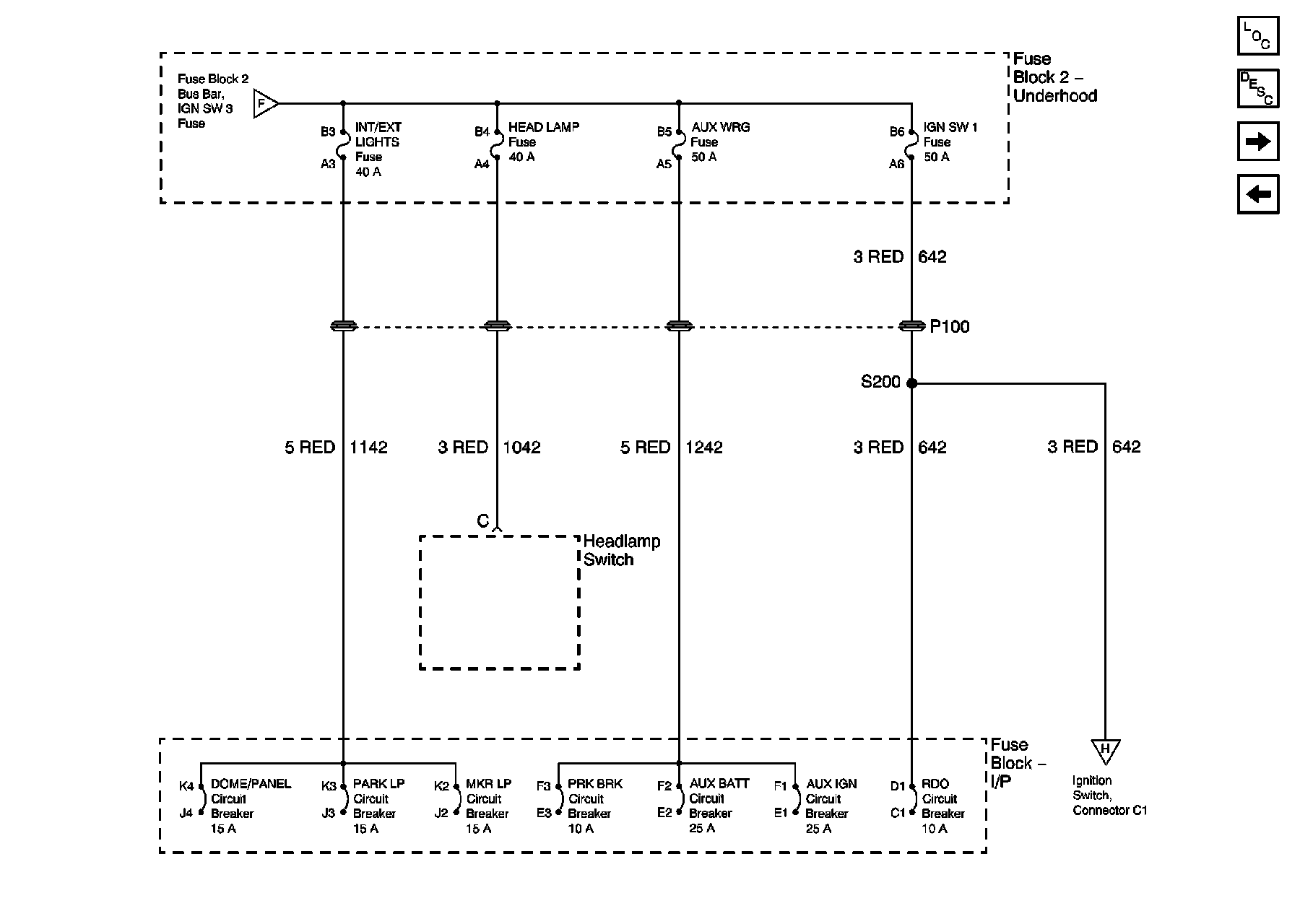

Interior/Exterior Lights/Headlamp, Aux Wrg IGN SW 1 Fuses

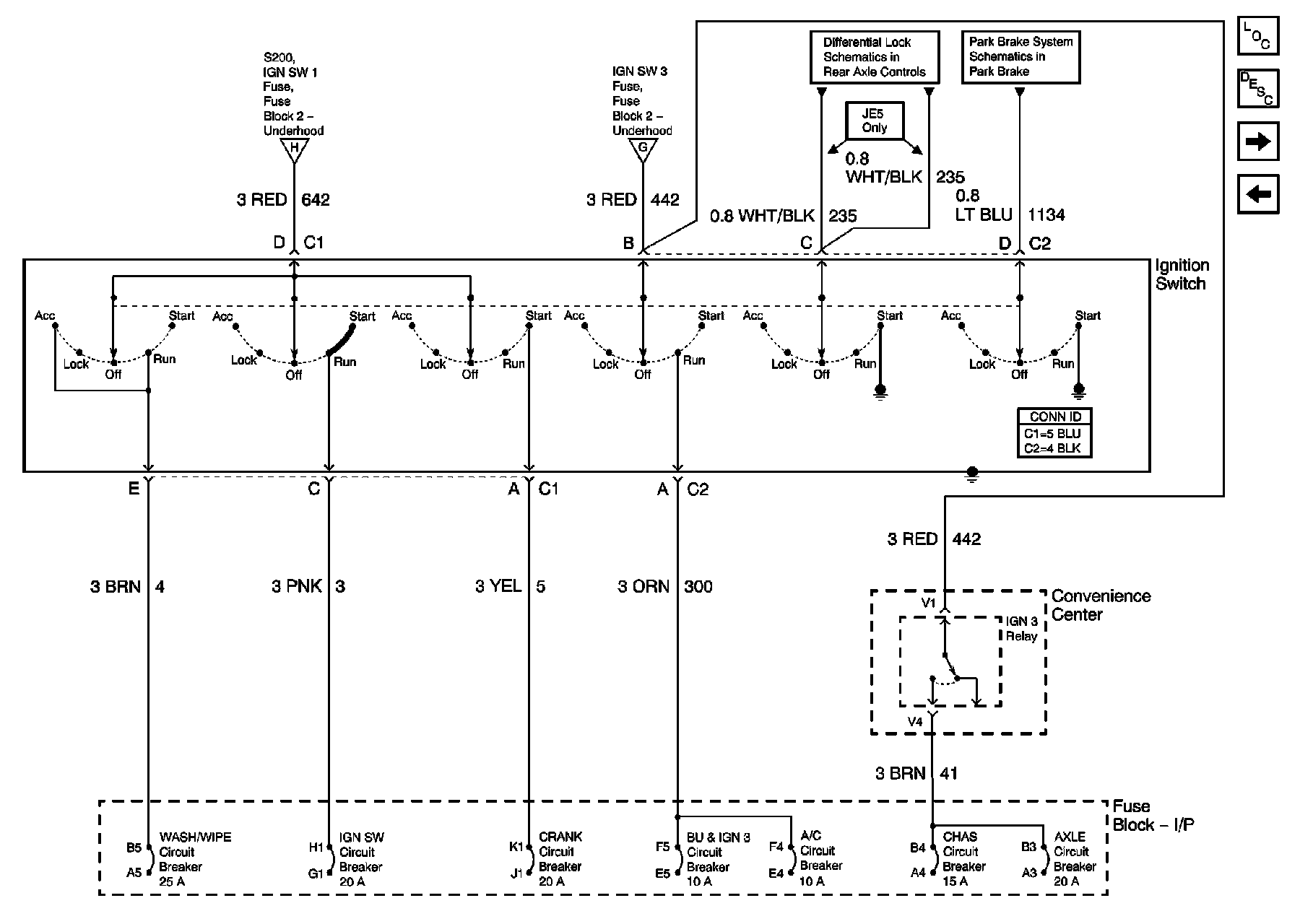

Ignition Switch
Engine 1 Circuit Breaker
Eng 2, IGN RLY/VIM Circuit Breakers
ENG 3 Circuit Breakers
IGN SW Circuit Breakers (1 of 4)
IGN SW Circuit Breakers (2 of 4)
IGN SW Circuit Breakers (3 of 4)
IGN SW Circuit Breakers (4 of 4)

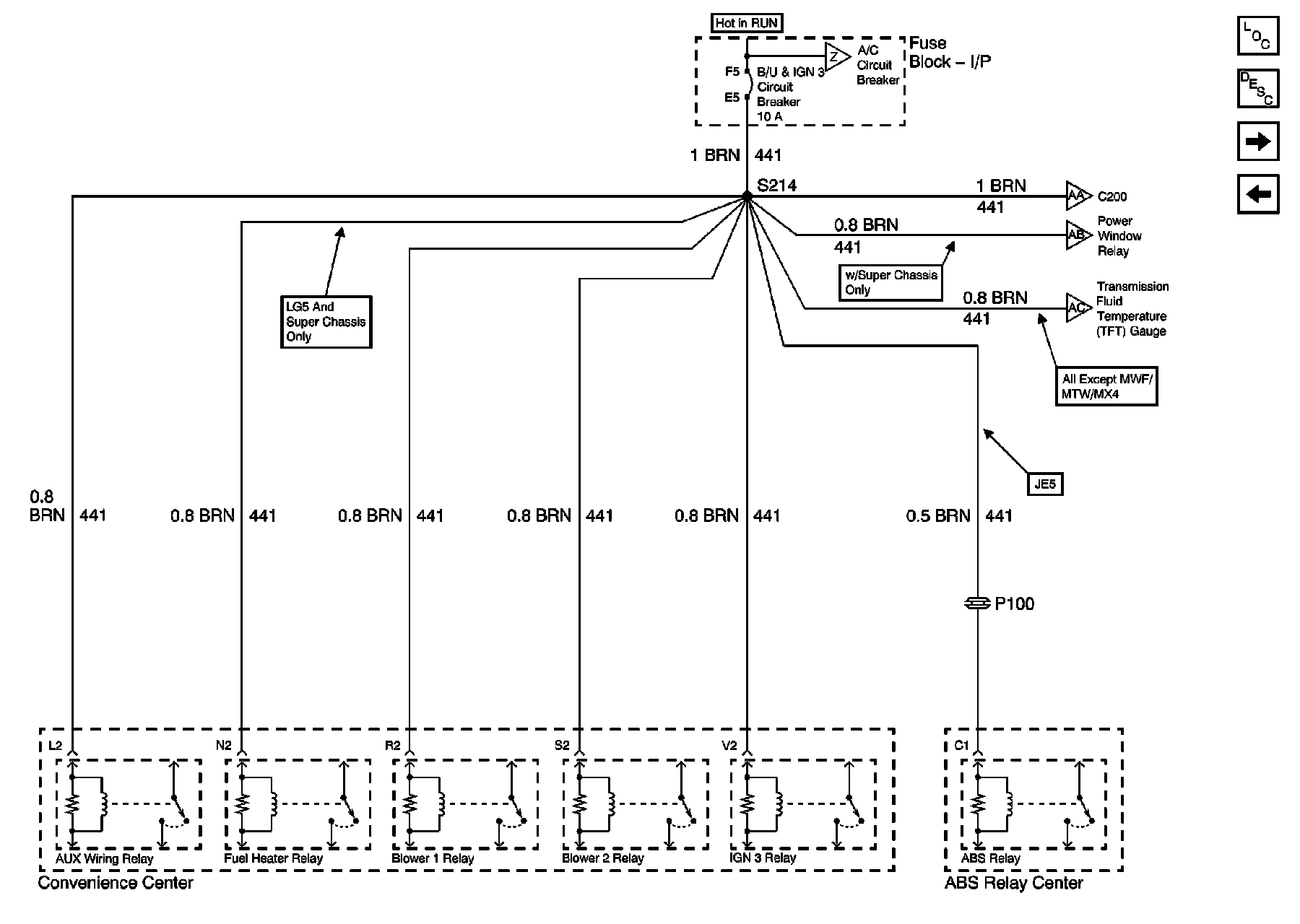

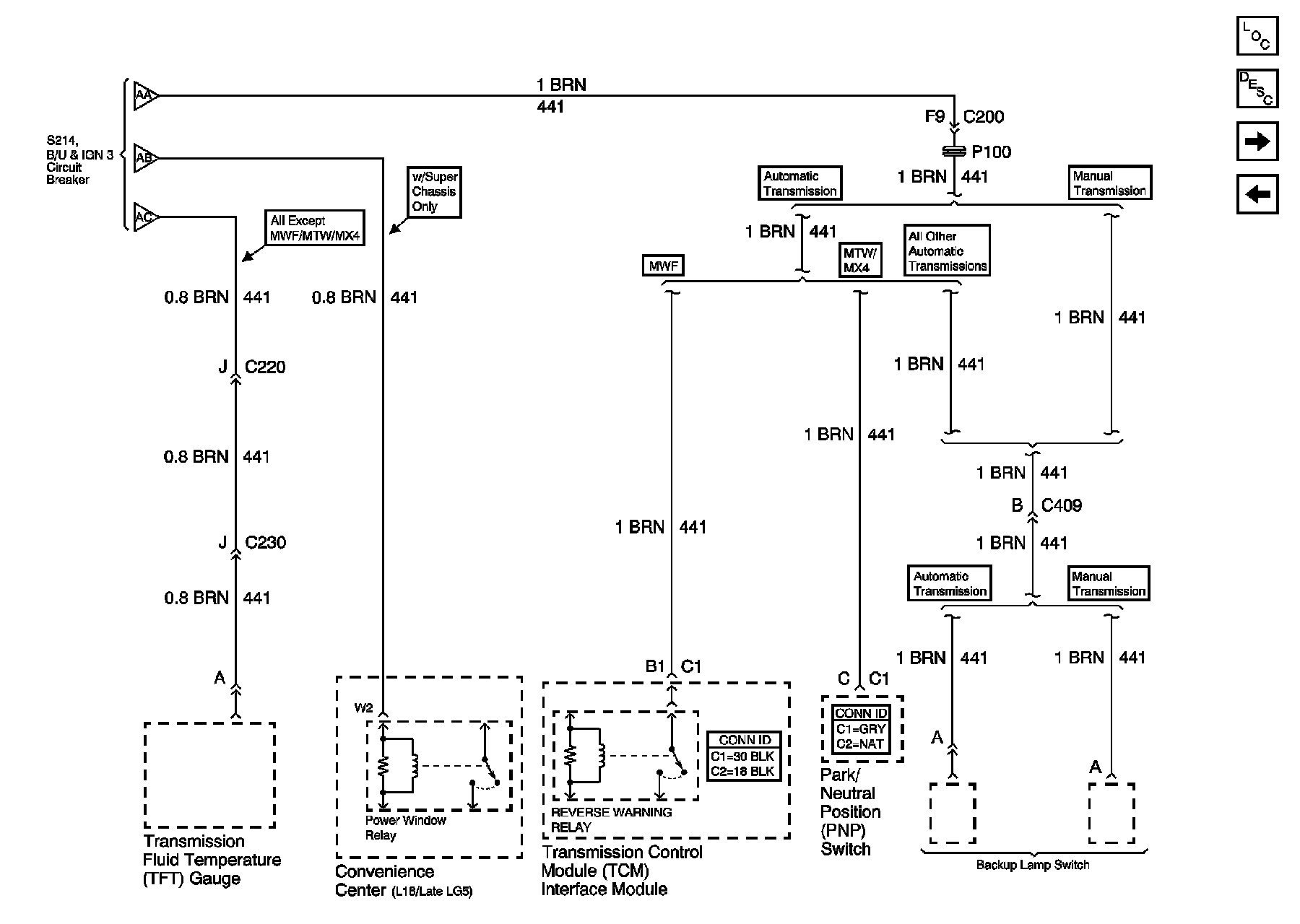

B/U and IGN 3 Circuit Breaker (1 of 2)
B/U and IGN 3 Circuit Breaker (2 of 2)

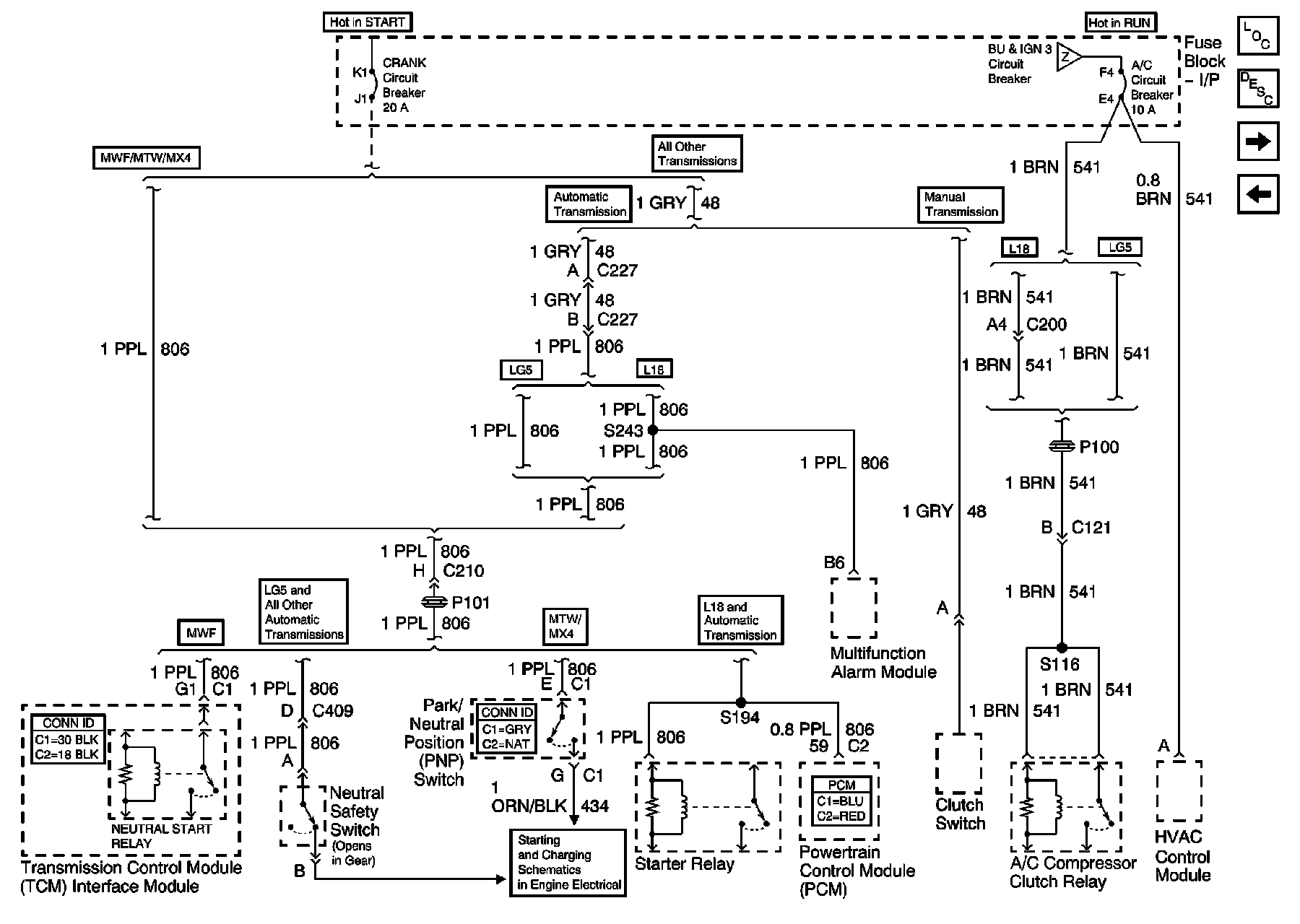

Crank, A/C Circuit Breakers
Blower, Horn, CIG/AUX Circuit Breakers
Generator Fuse, RDO, Washers/Wiper Circuit Breaker

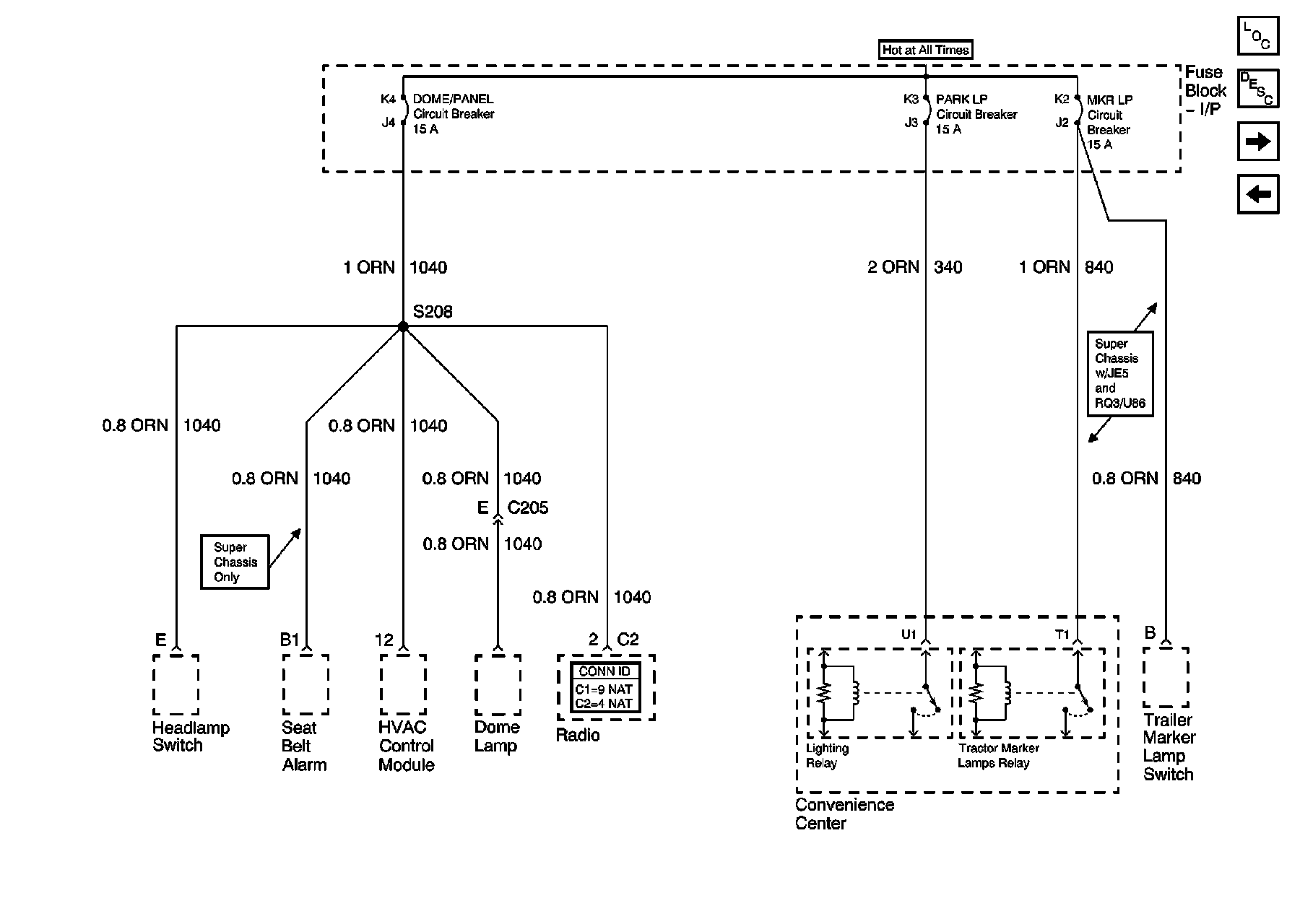

Dome Panel, Park Lamp, MRR LP, Circuit Breakers
DR LK/WDO, DR LK, WDO PRK BRK AUX BATT, AUX IGN, Circuit Breakers

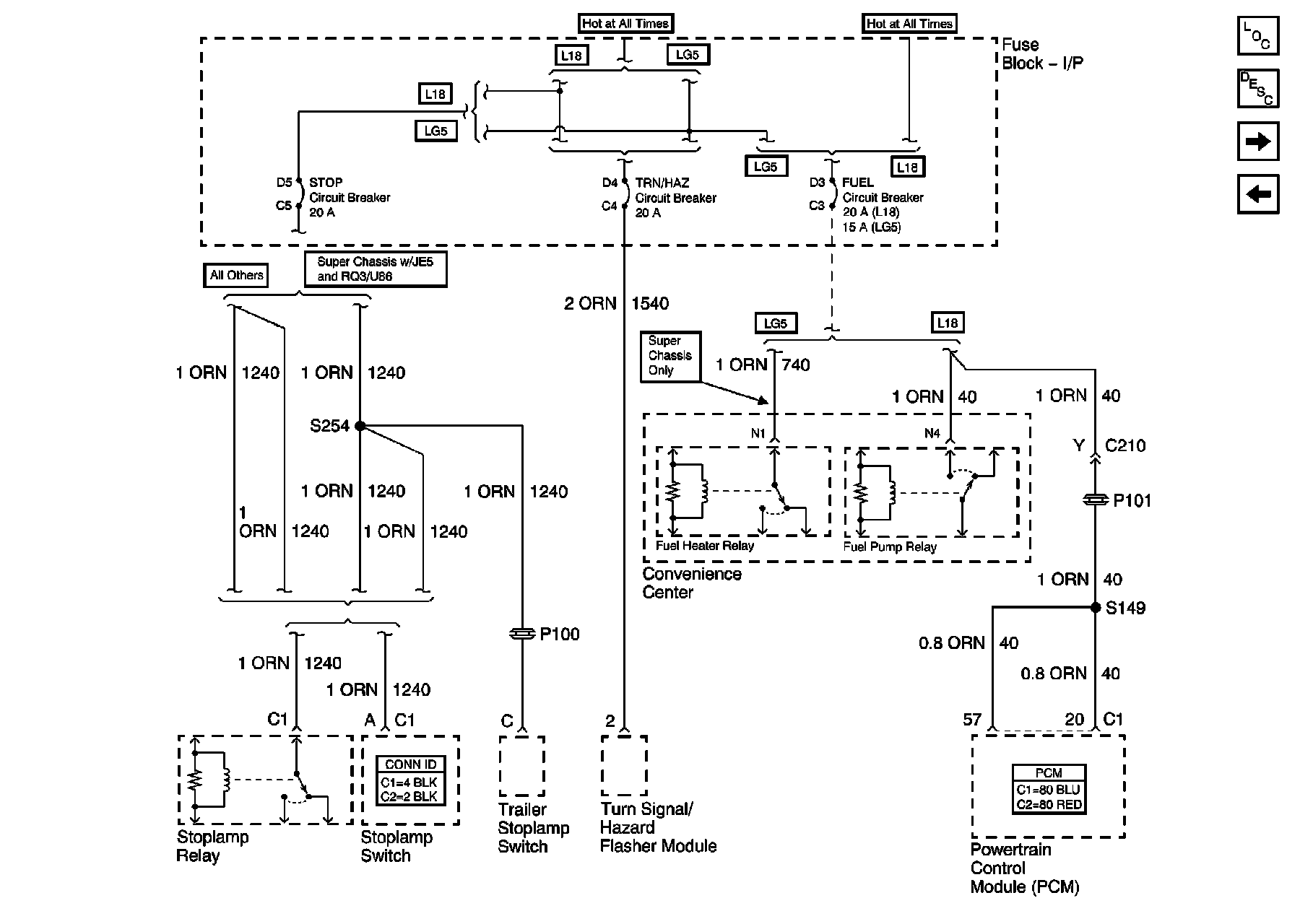

Stop, TRN/HAZ, Fuel Circuit Breakers
S142, (L18), S115 (LG5), S230
