Engine Controls Schematics

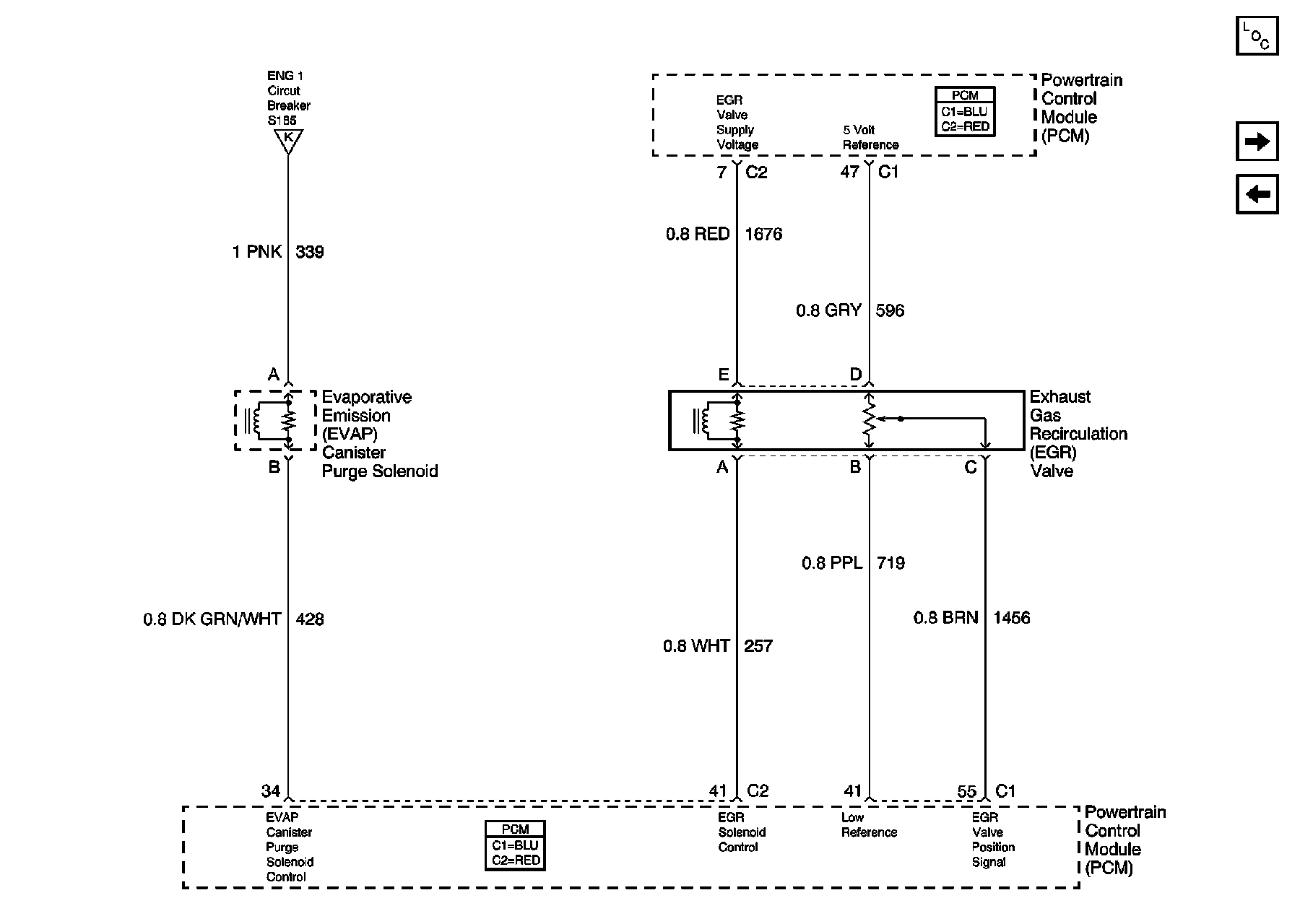

Engine Controls Schematics

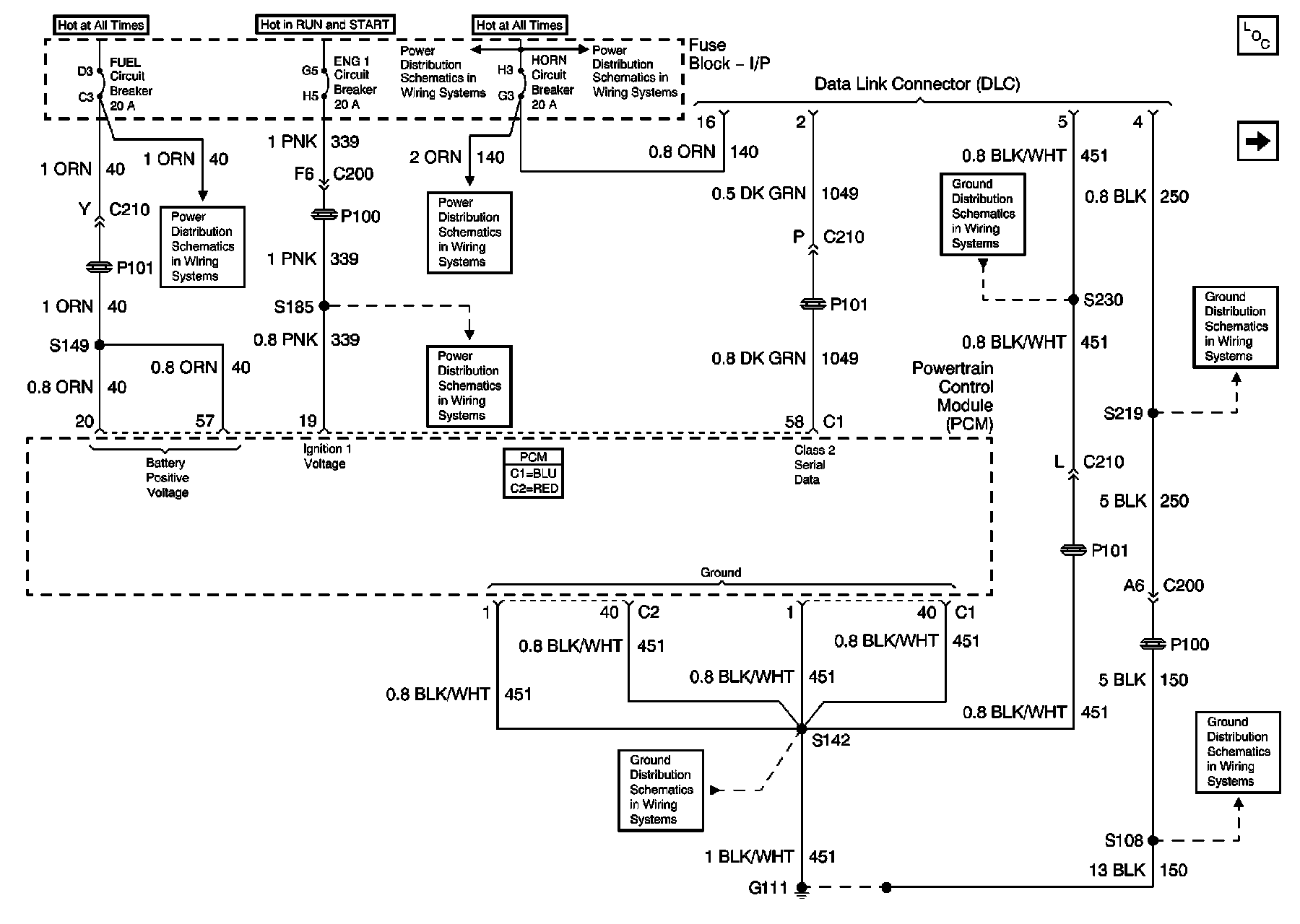

DLC, PCM, Power and Grounds
Indicators

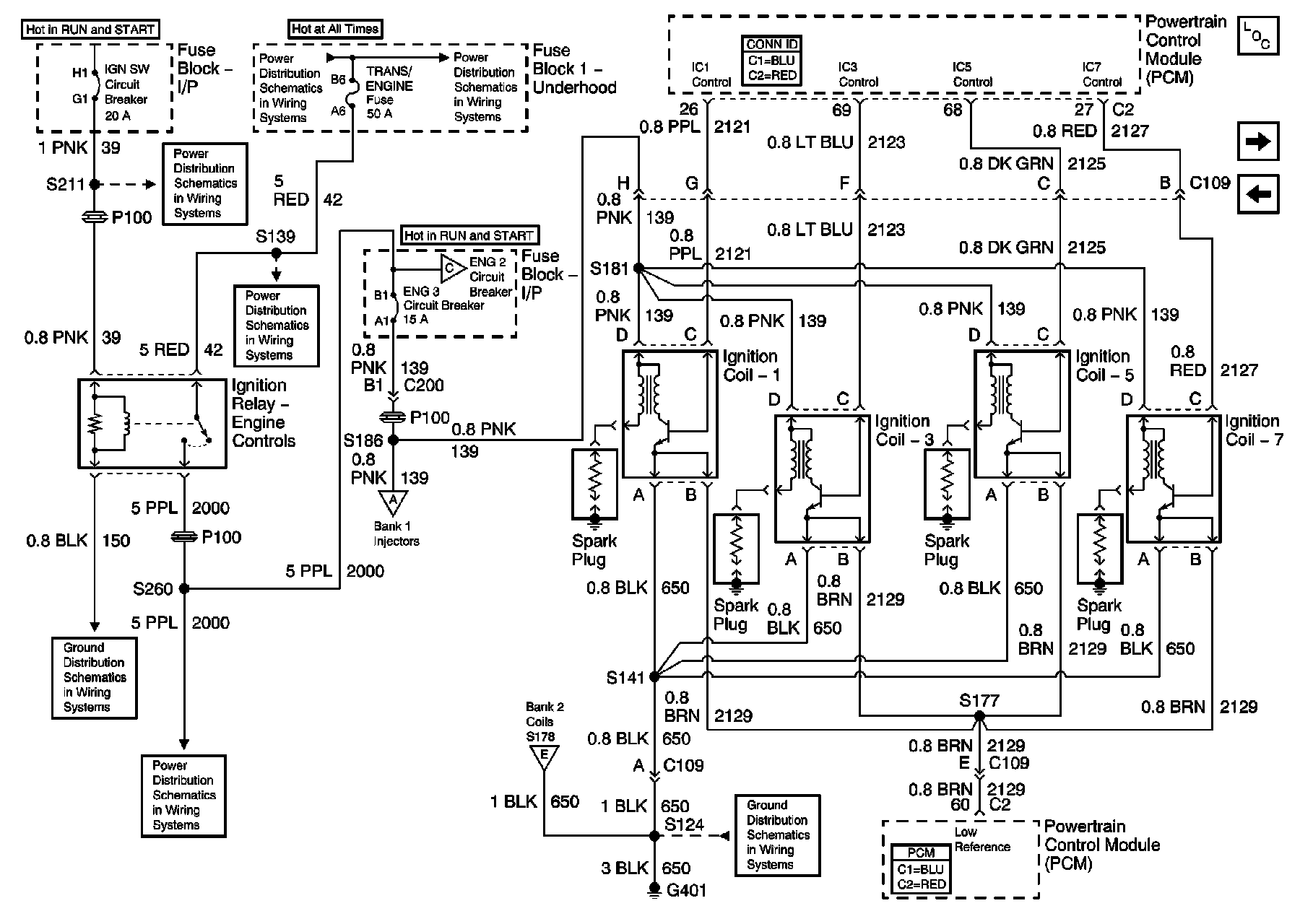

Ignition Coils Bank 1

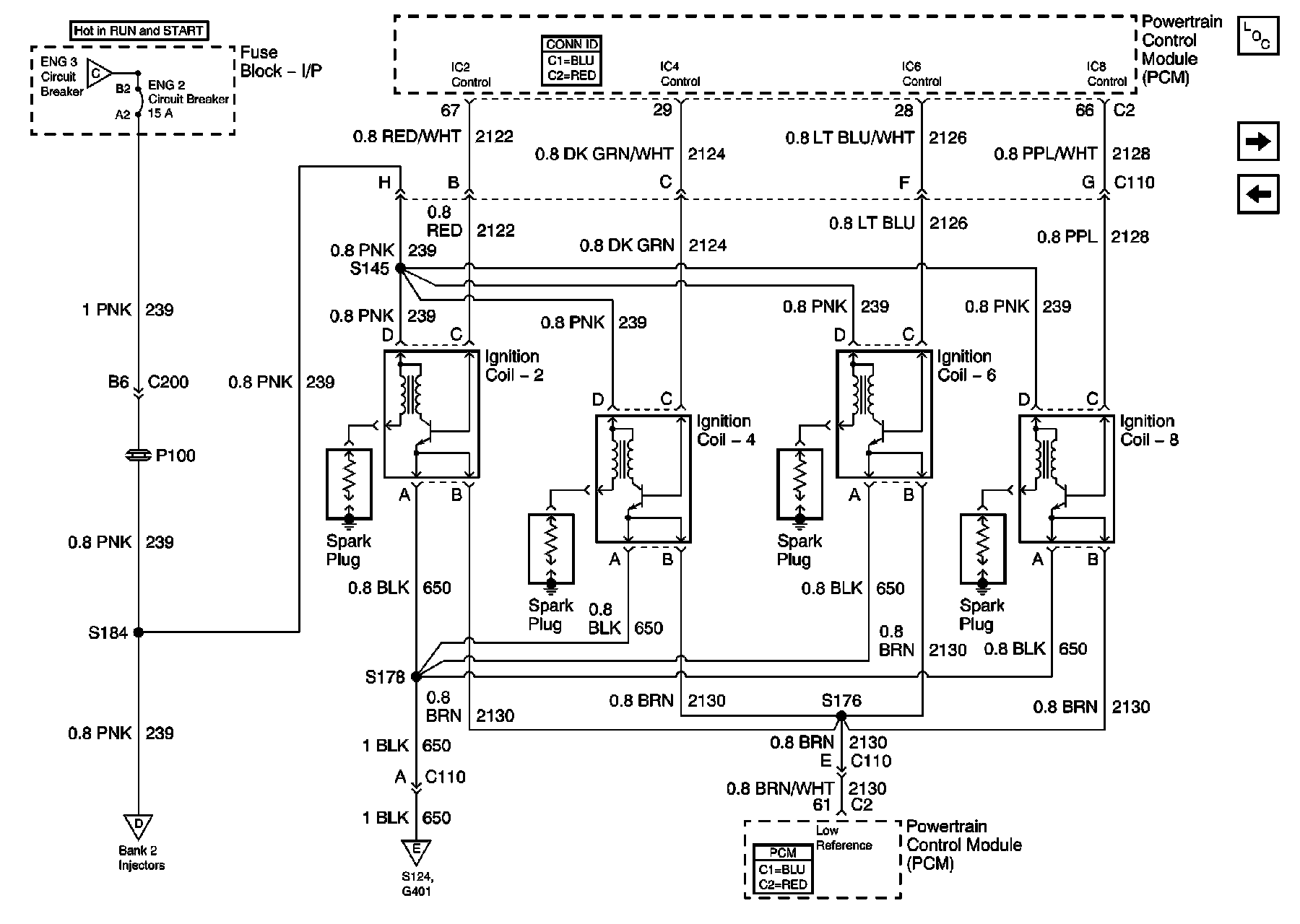

Ignition Coils Bank 2

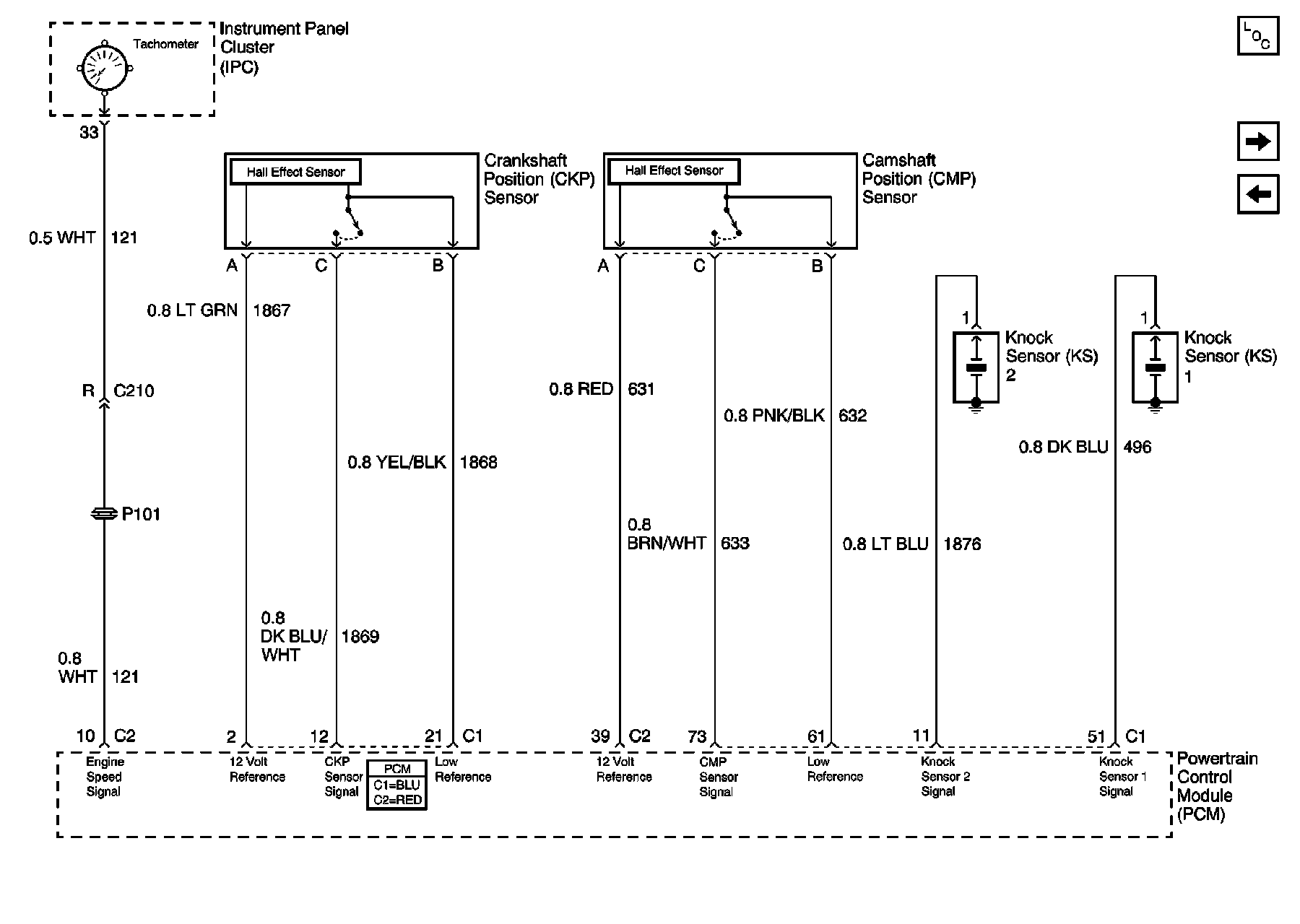

CKP and CMP Sensors, KS, and Tachometer
Fuel Enable and Fuel Gage

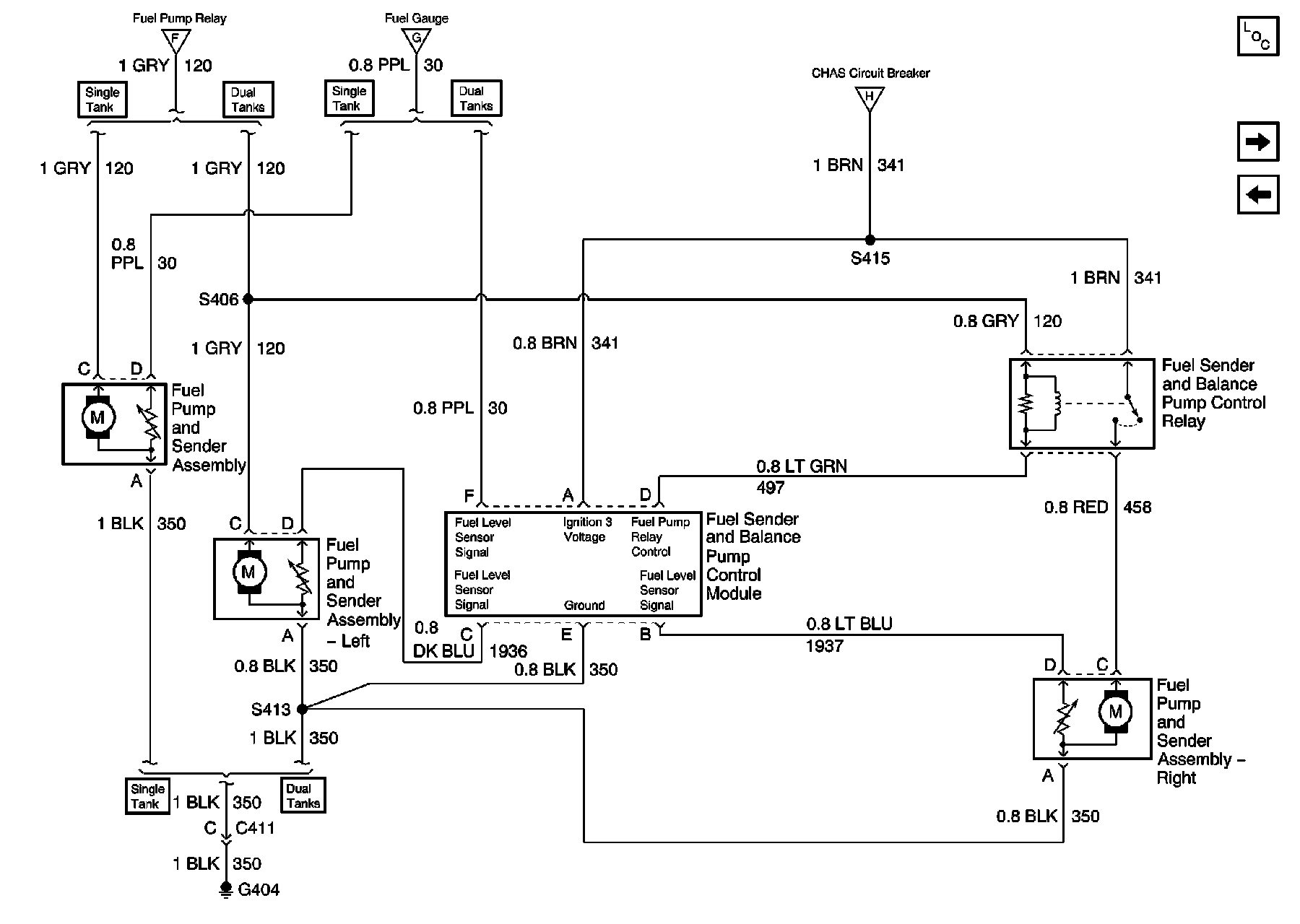

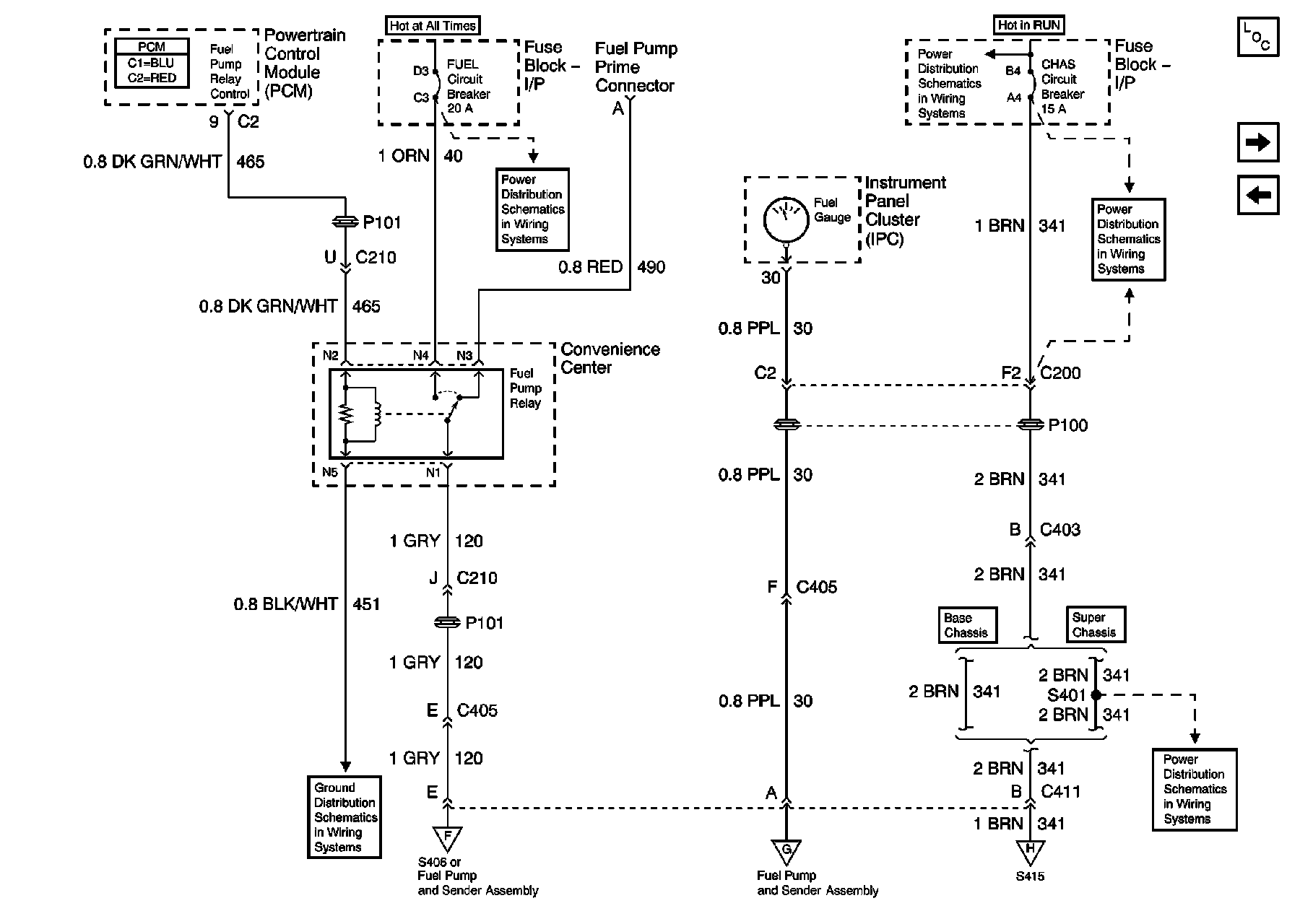

Fuel Pumps and Fuel Senders
Automatic Engine Shutdown and Warning
Multiport Fuel Injector

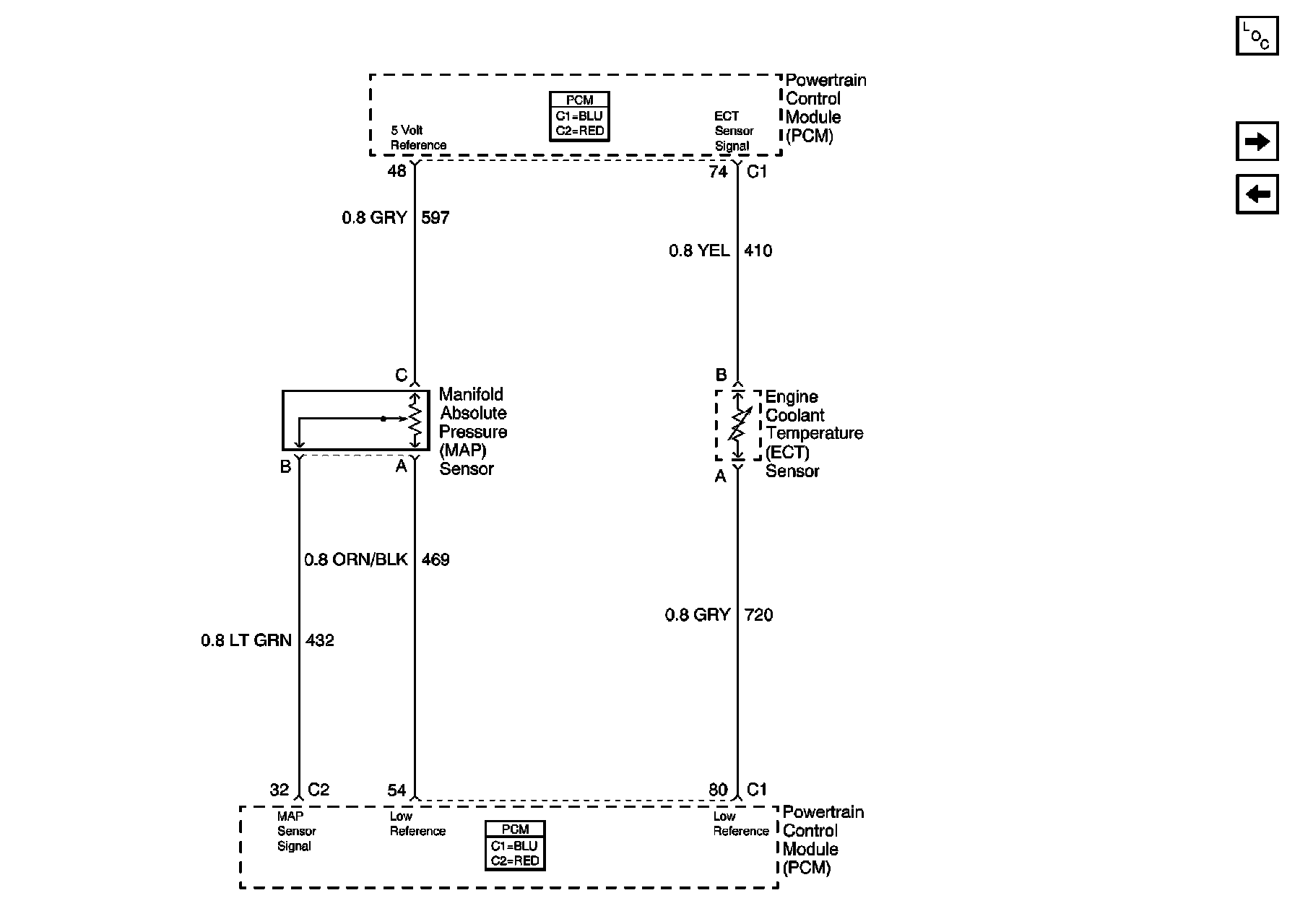

MAP and ECT Sensors

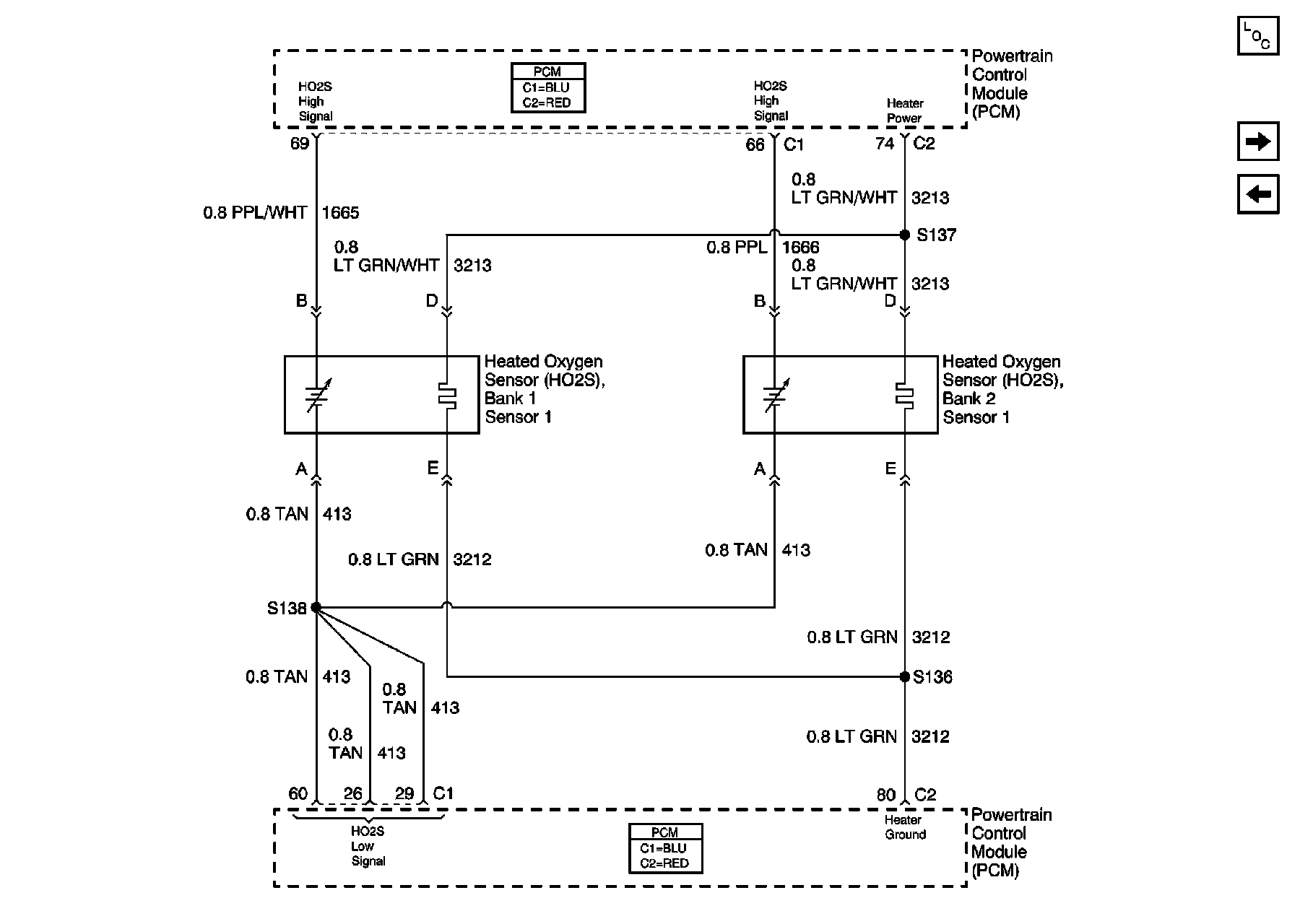

HO2S
MAF Sensor
Vehicle Speed Sensor
Ignition Coils Bank 2
TAC Module
APP Sensor and TAC Module
CPP and Fast Idle Switches

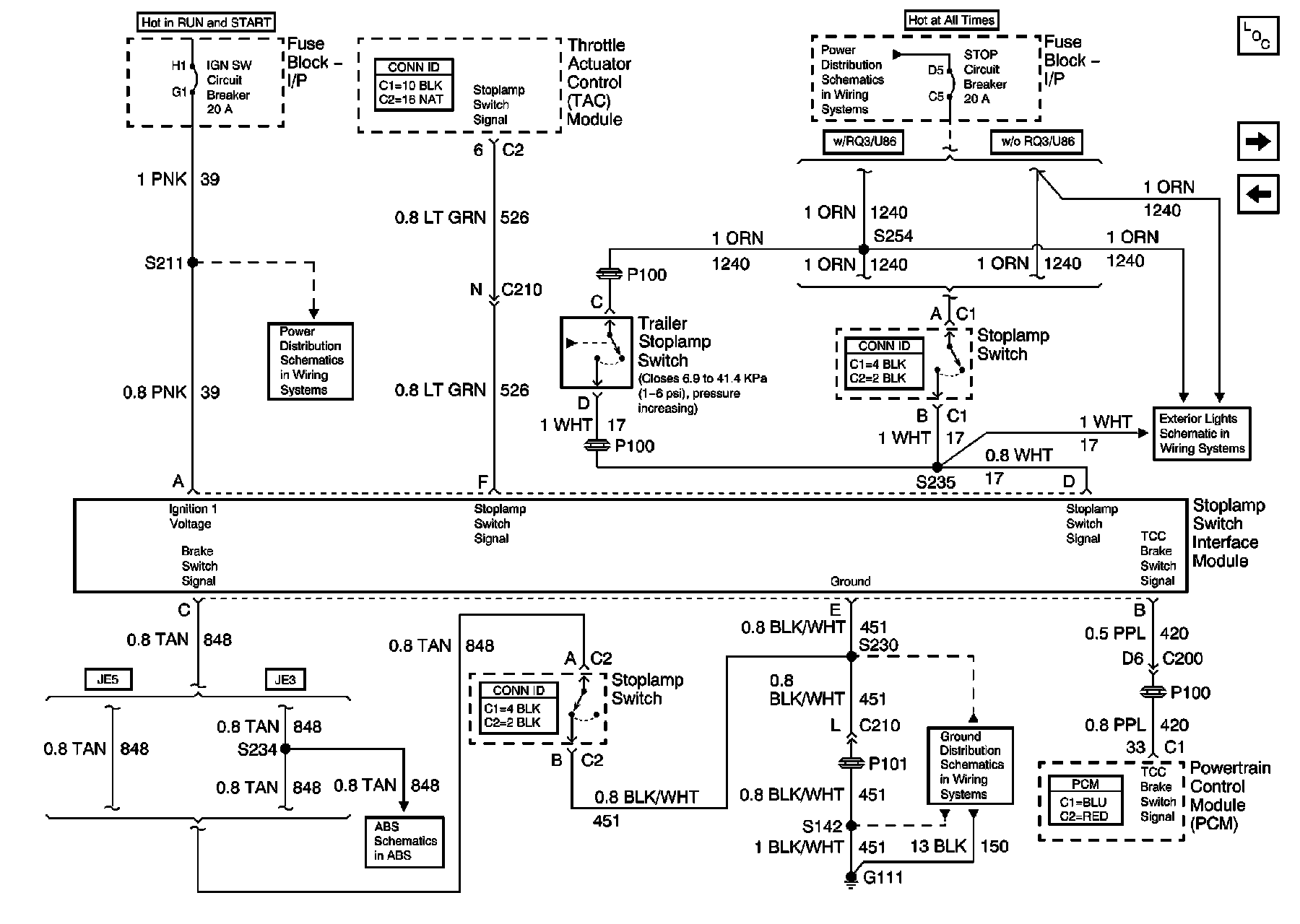

Stop Lamp Switch Interface Module

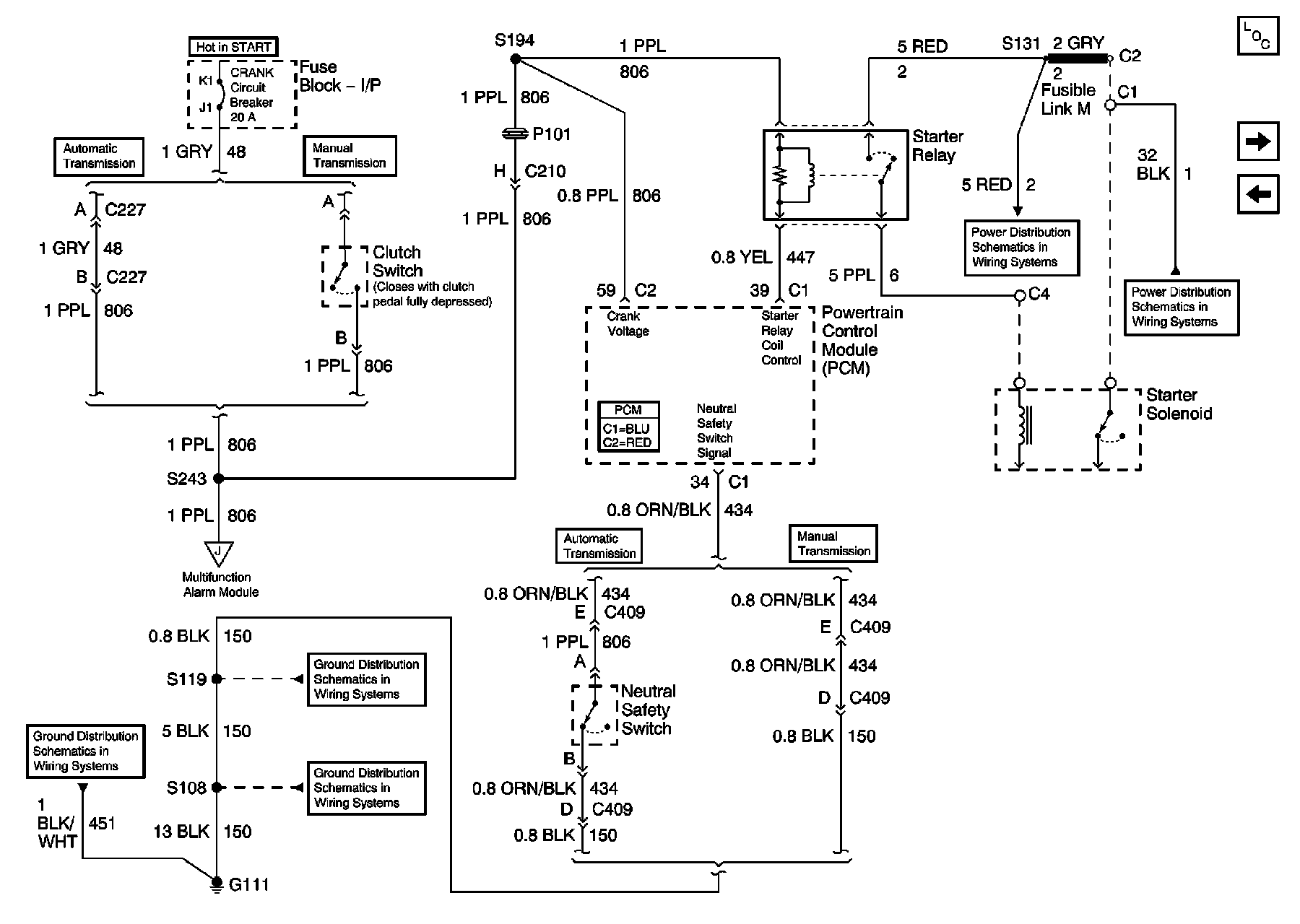

Starter Enable

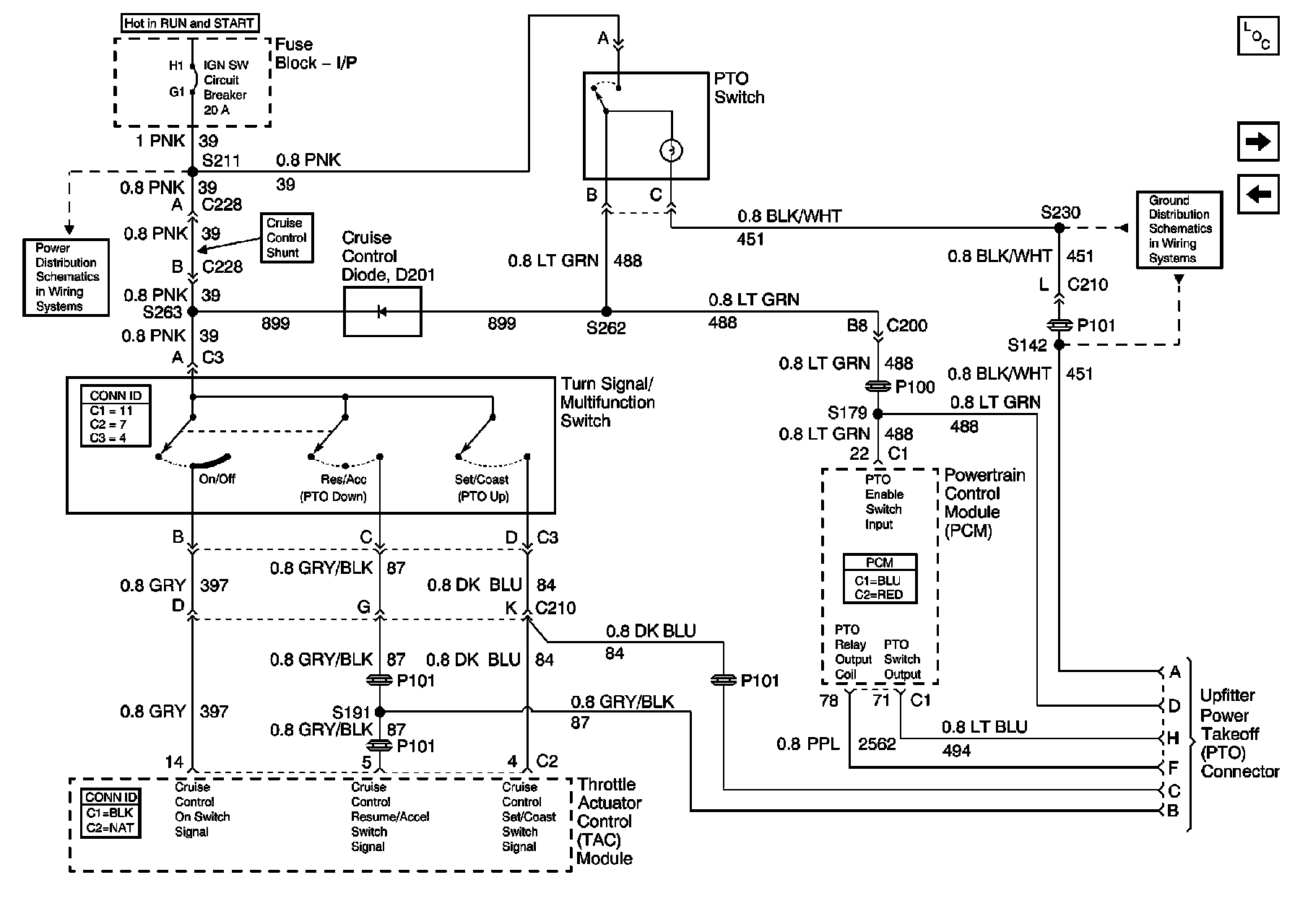

Cruise Control and PTO

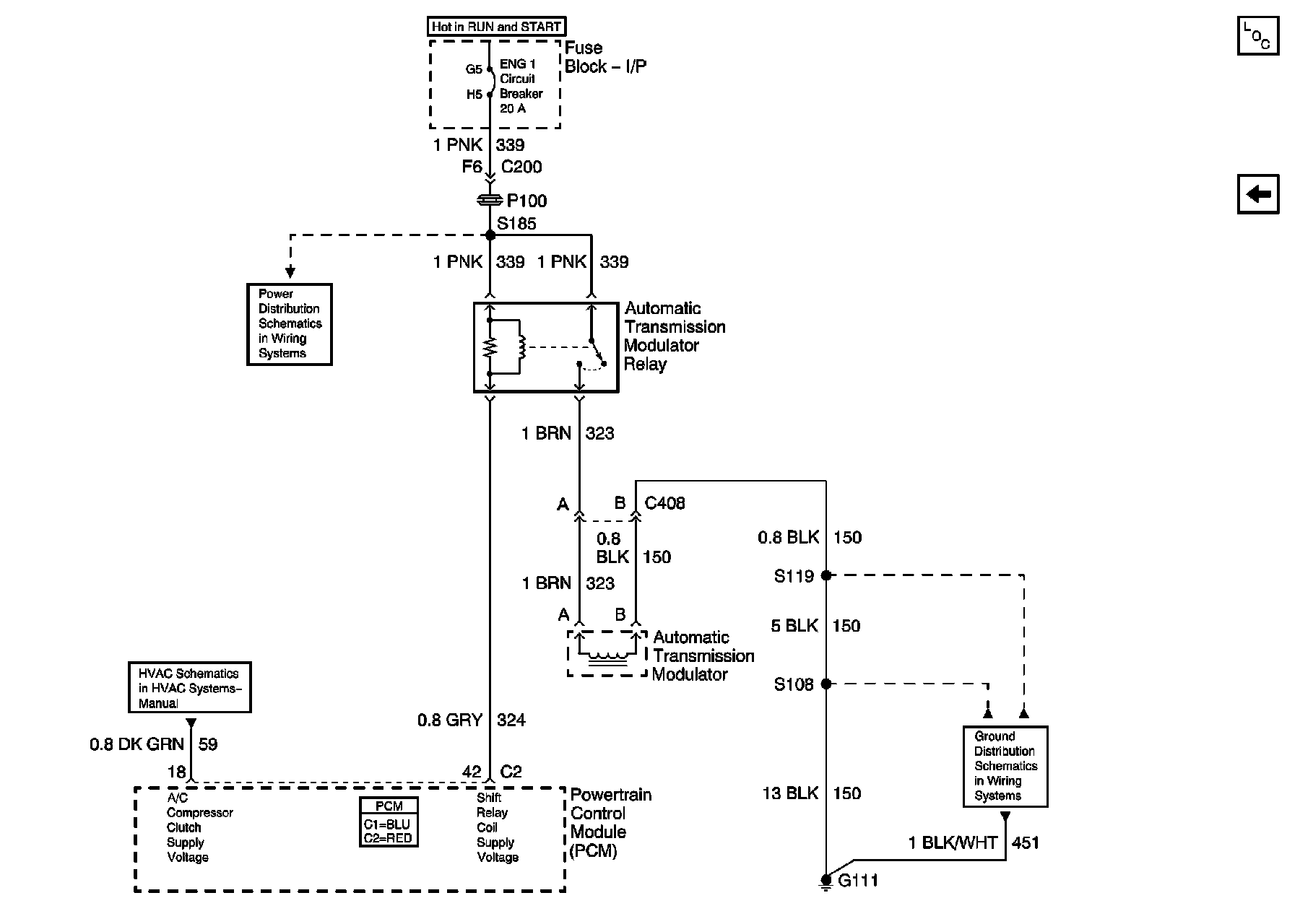

Automatic Transmission Modulator and HVAC
