Starting and Charging Schematics (L18 Starting and Charging circuits)




Starting and Charging Schematics (L18 Starting and Charging circuits)

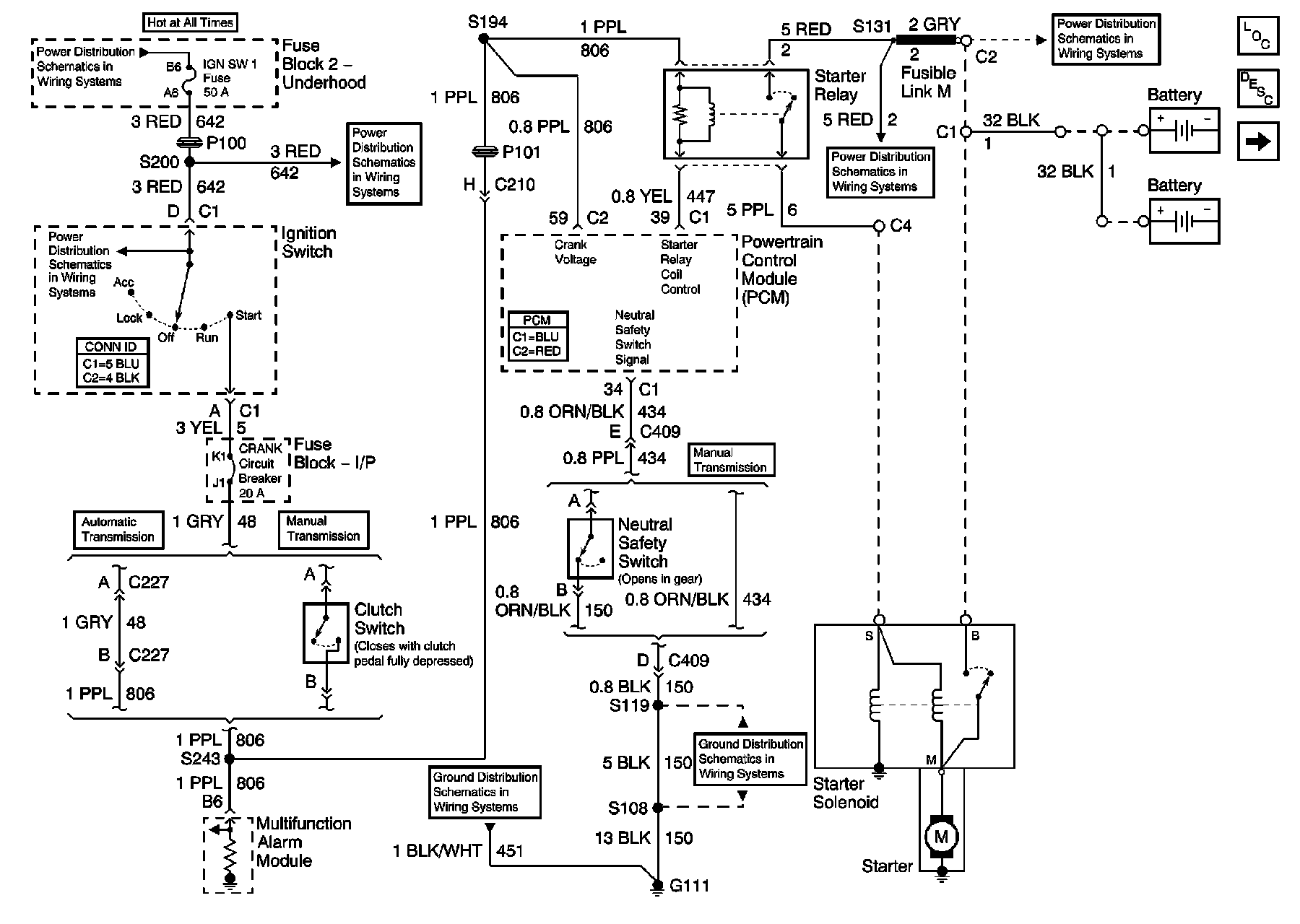

Starting Circuit





Charging Circuits
