Starting and Charging Schematics (LG5 Starting and Charging Circuits)




Starting and Charging Schematics (LG5 Starting and Charging Circuits)

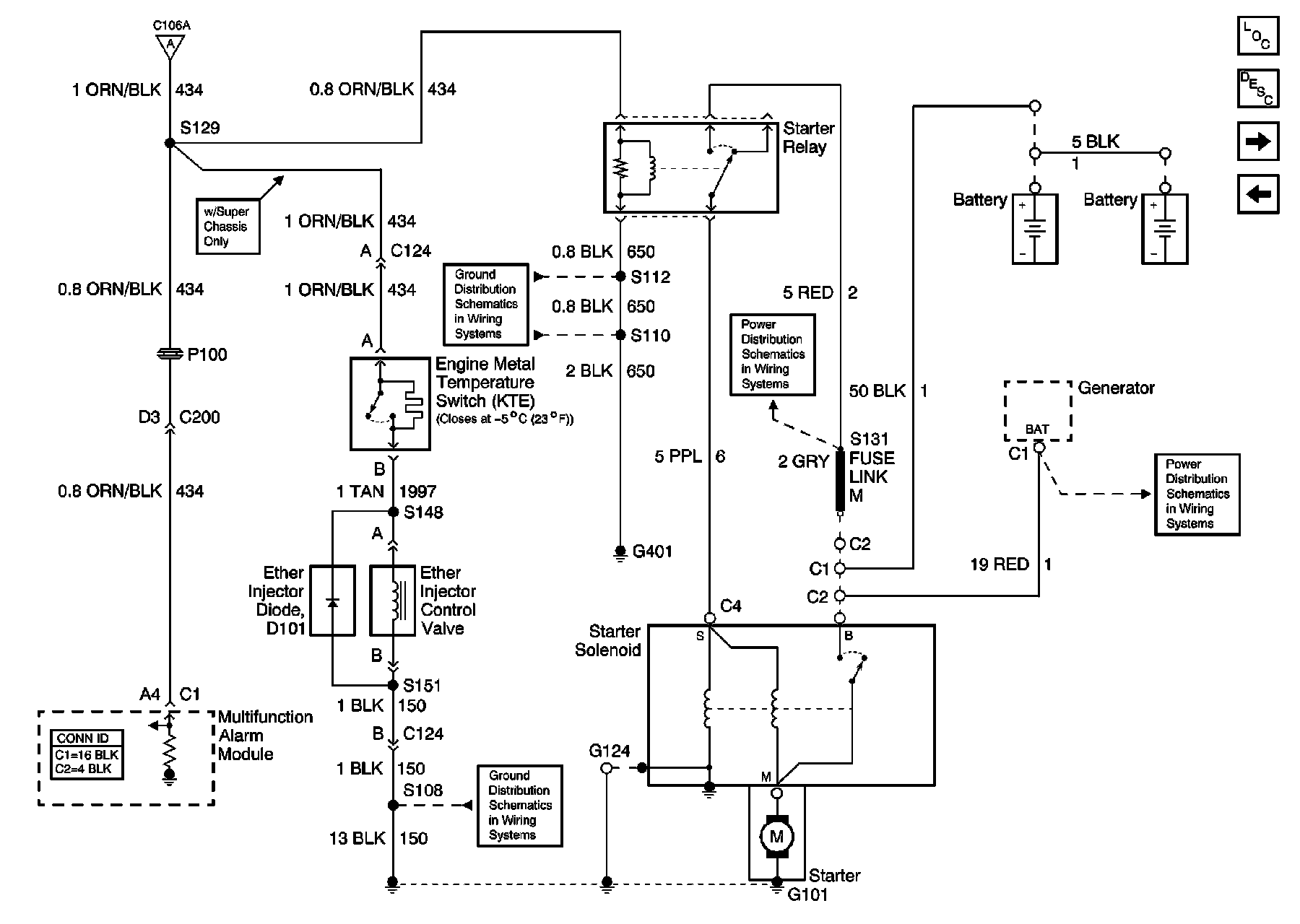

Starting Circuit, Page 1 of 2





Starting Circuit, Page 2 of 2





Charging Circuit
