Chevy Truck
>>
2002
>>
C 6500 Kodiak V8-8.1L VIN E
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Connector Views
Connector Views

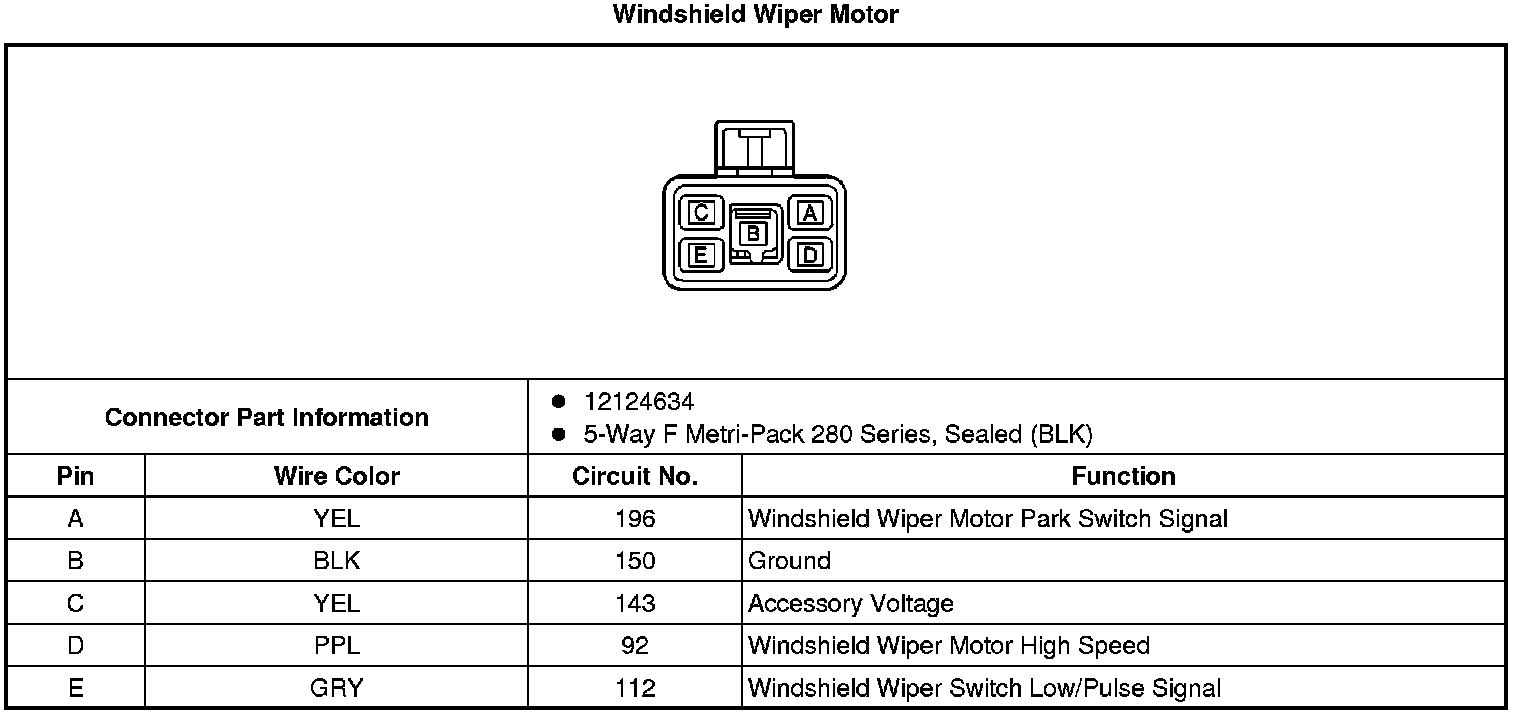

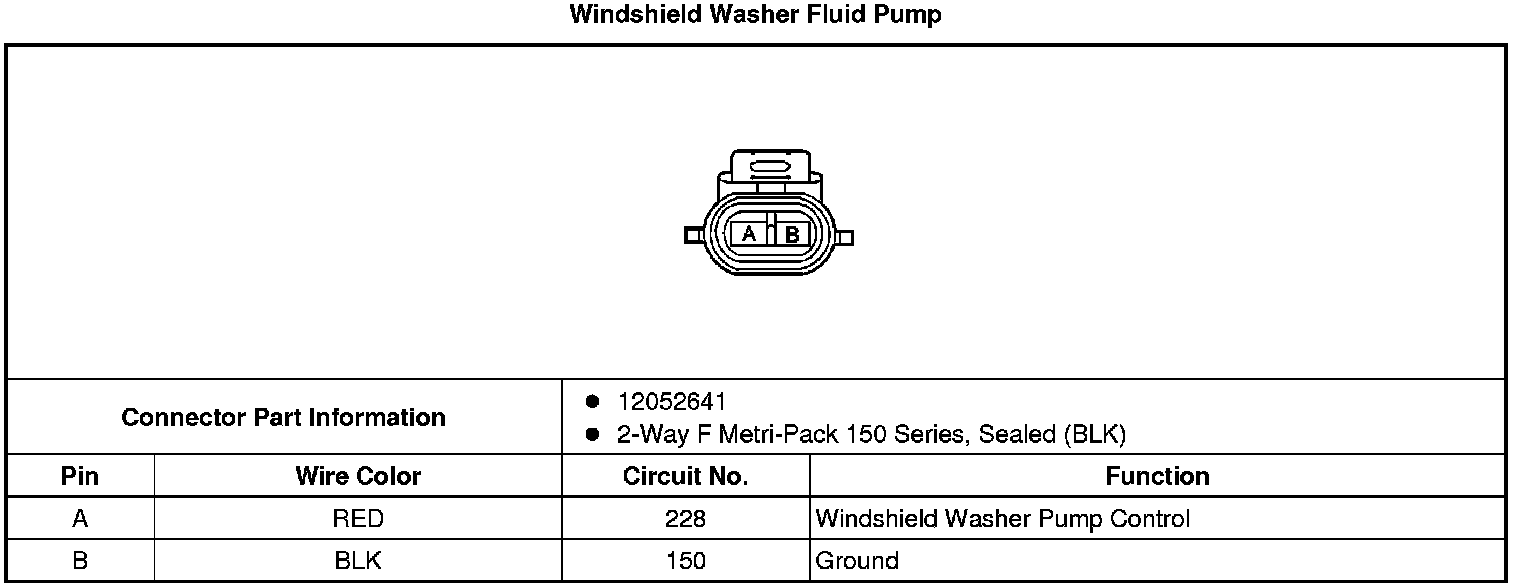

Wiper/Washer System Connector End Views
