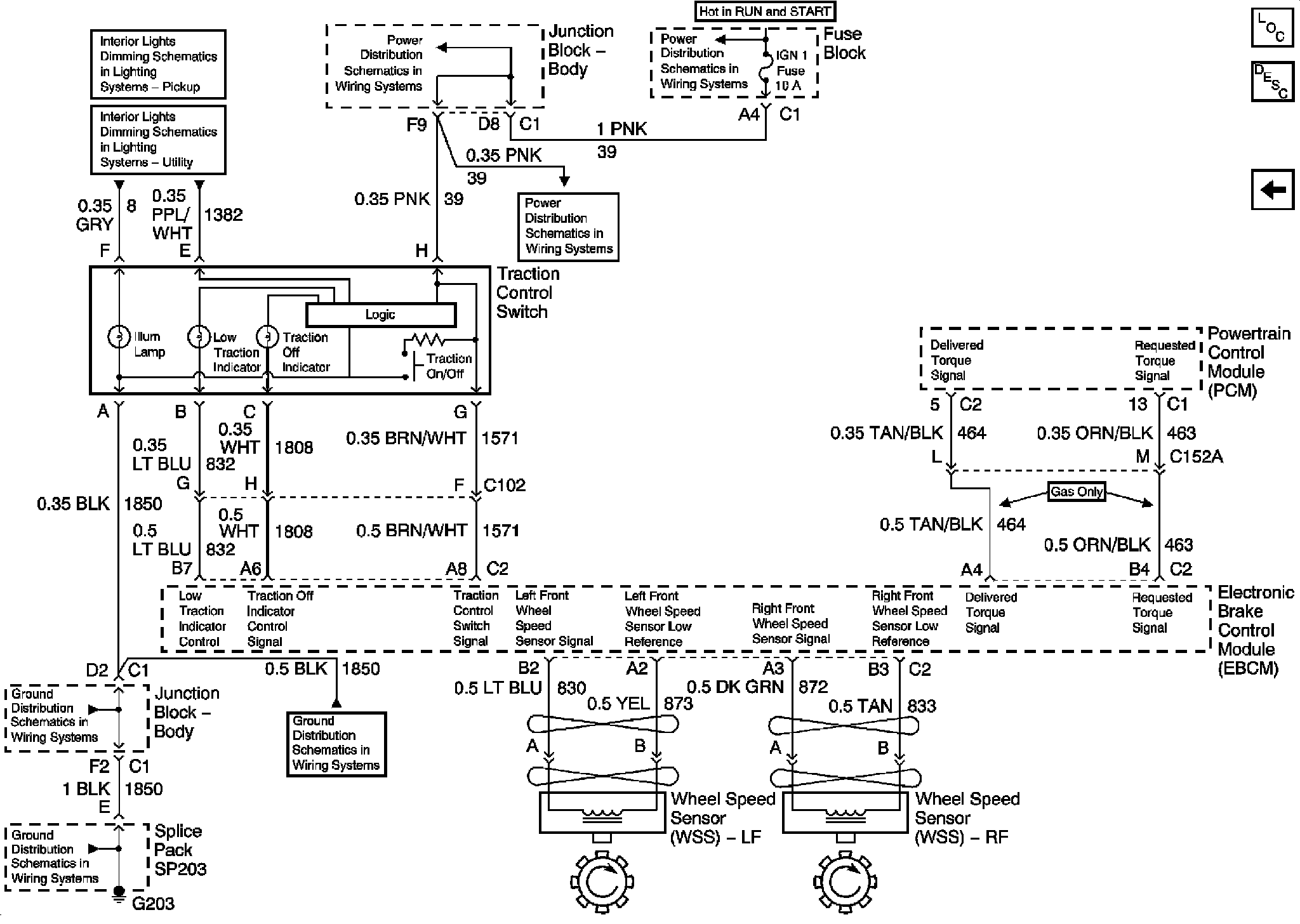

ABS Schematics (Spd Sen Sig and Trac Cntrl SW - W/Trac Assist)
ABS Schematics (Spd Sen Sig and Trac Cntrl SW - W/Trac Assist)
