Underhood Fuse-Relay Center Connector
Underhood Fuse-Relay Center Connector

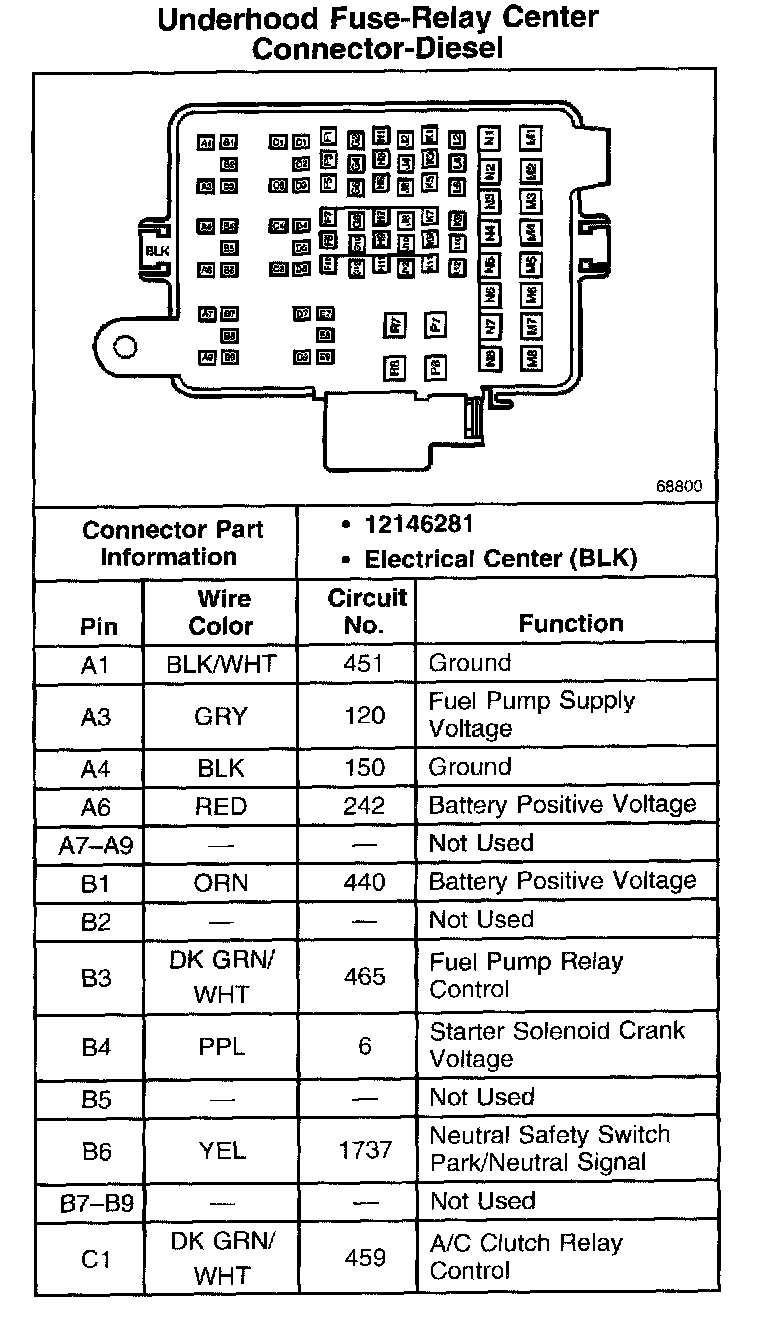

Underhood Fuse-Relay Center Connector-Diesel Part 1:

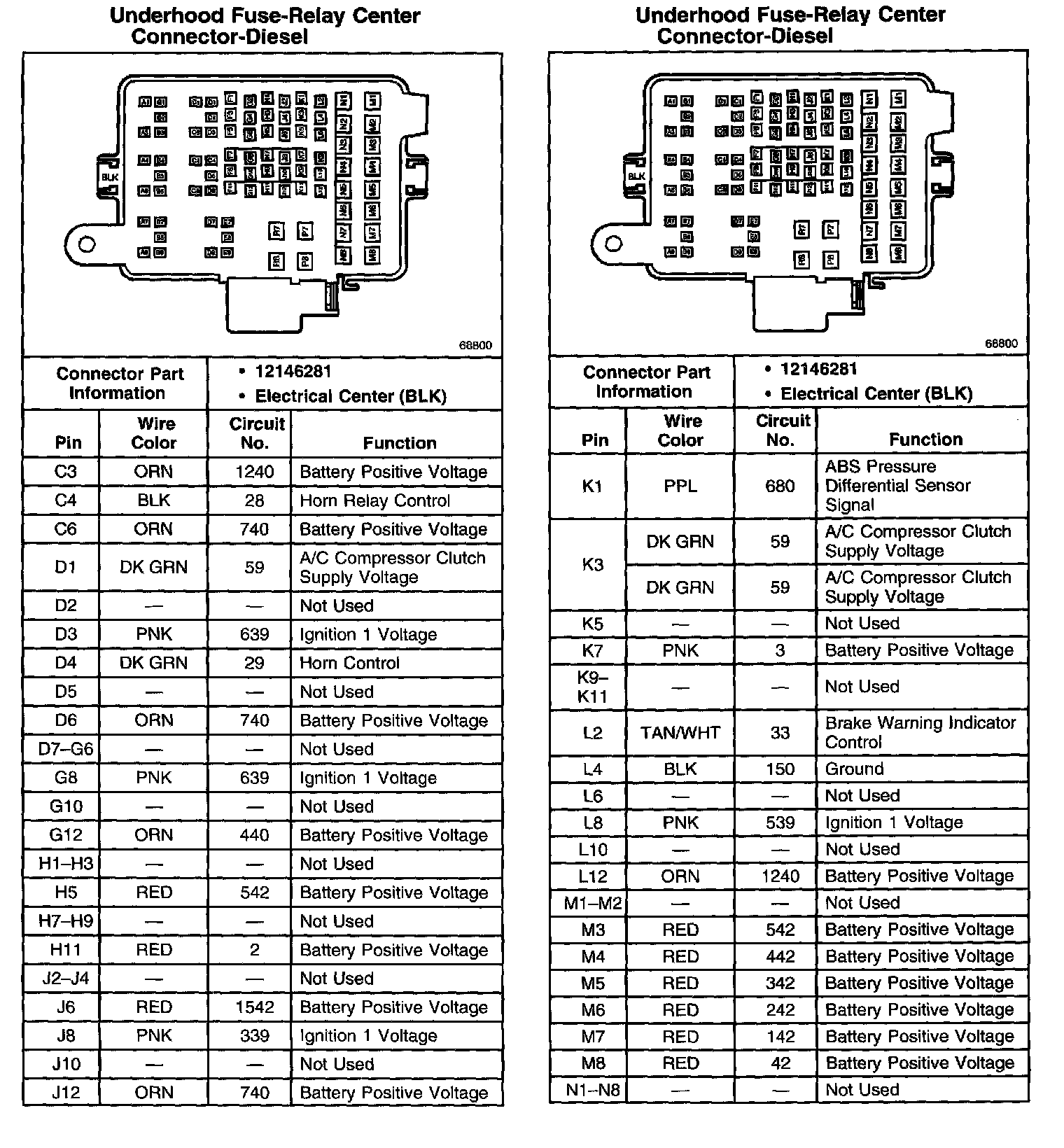

Underhood Fuse-Relay Center Connector-Diesel Part 2:
