Engine Harness, Right Side
Engine Harness, Right Side

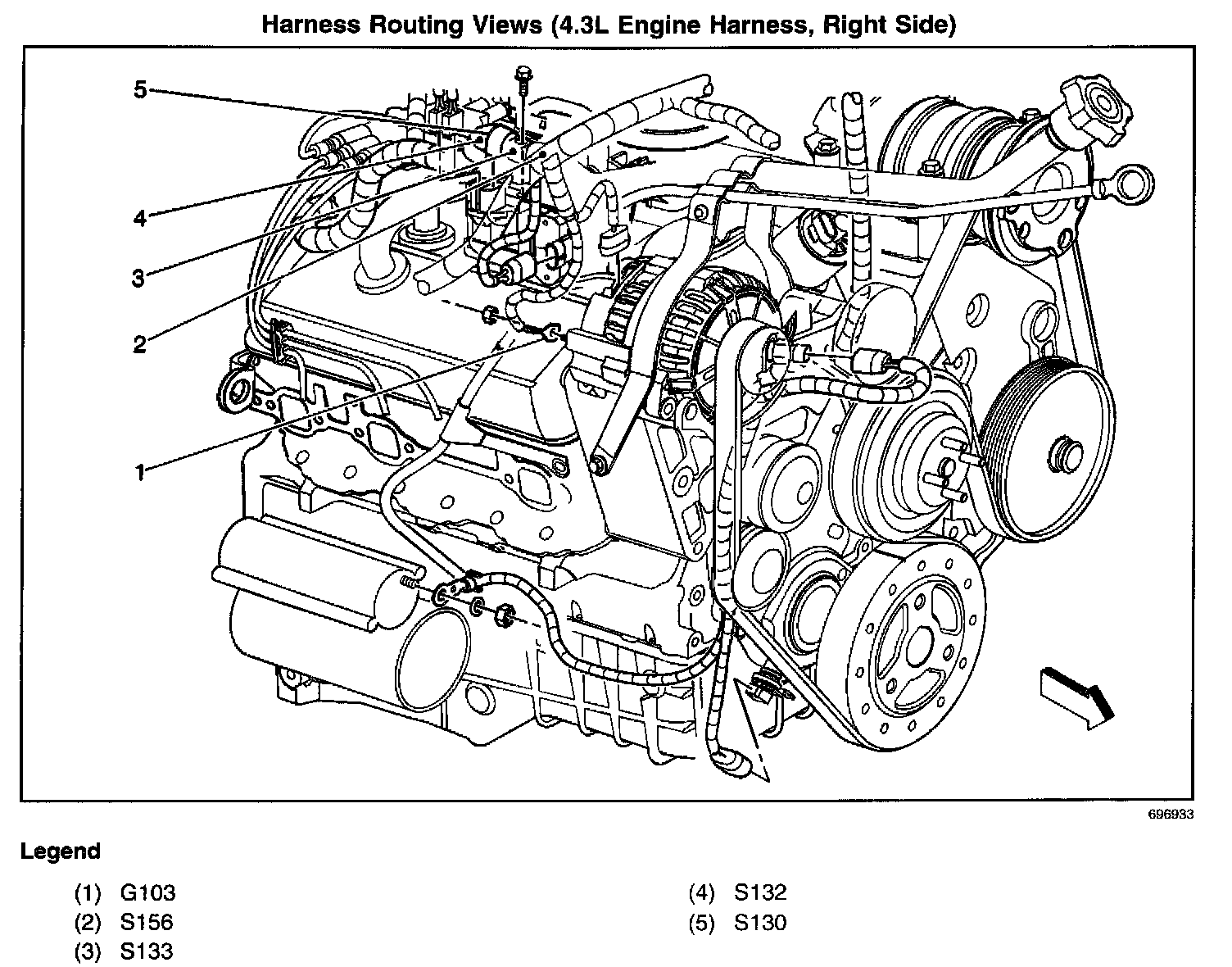

Harness Routing Views (4.3L Engine Harness, Right Side):
Harness Routing Views (Automatic Transmission, 4-Speed, 4L80-E):
