Power Door Lock Switch: Diagrams

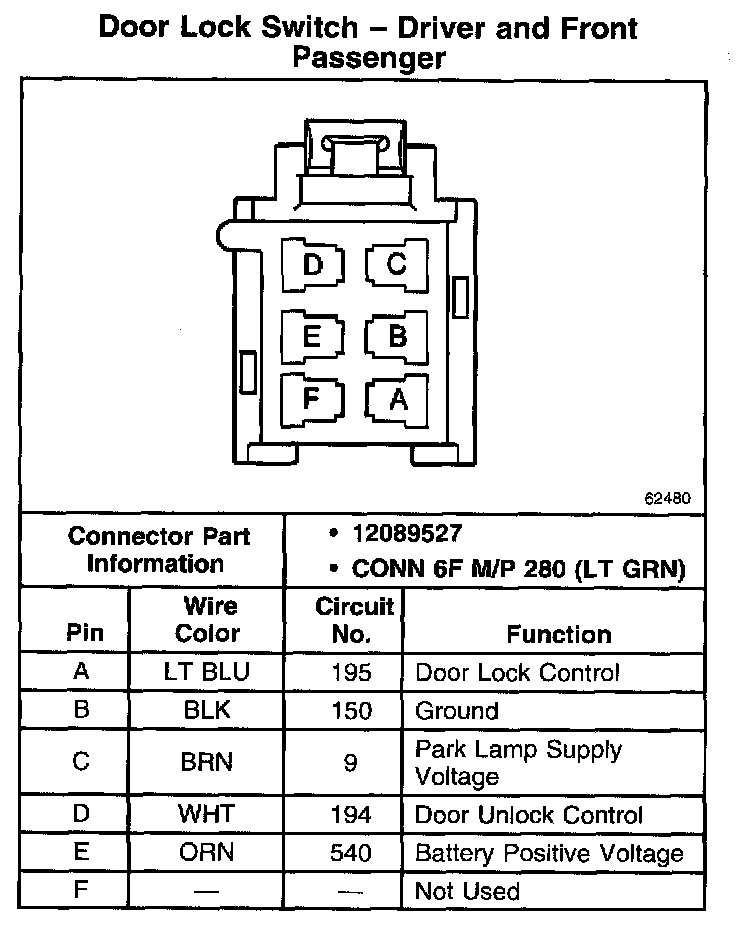

Door Lock Switch - Driver And Front Passenger:

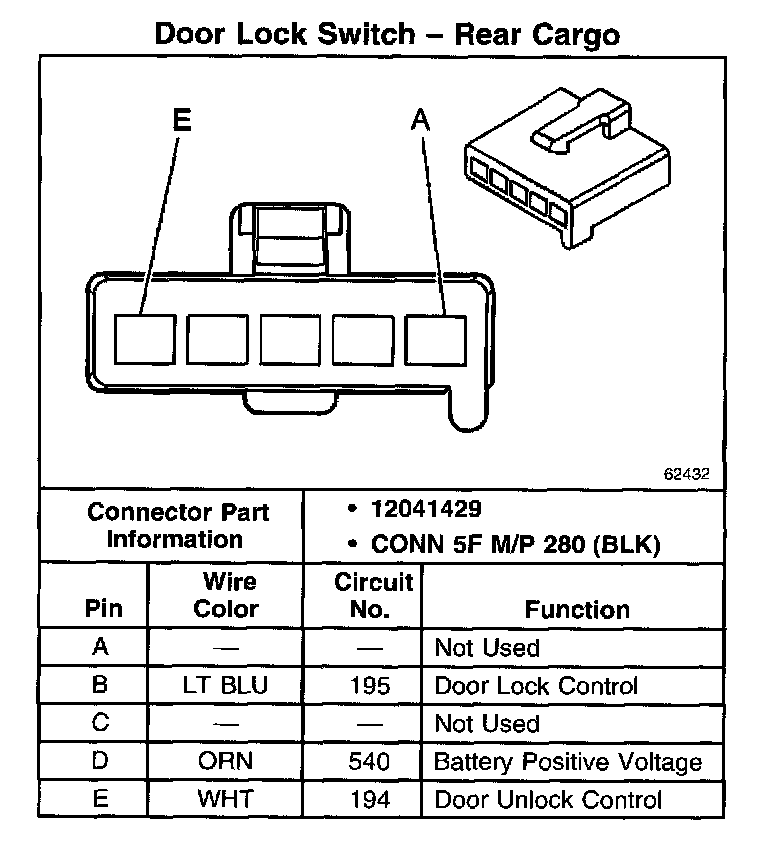

Door Lock Switch - Rear Cargo:
