Engine Coolant Temperature Gauge Inaccurate or Inoperative

TEST DESCRIPTION

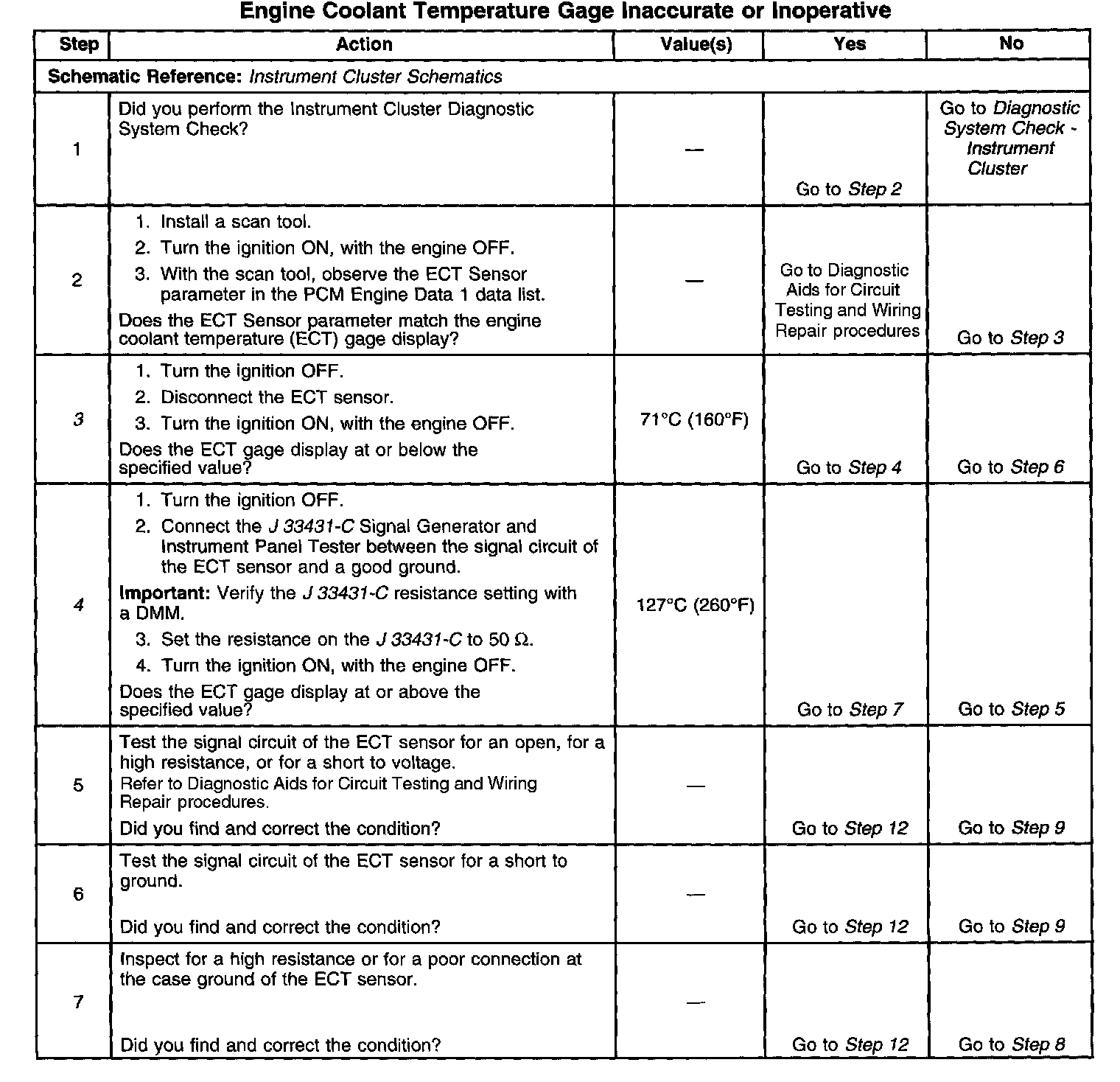

Steps 1-7:

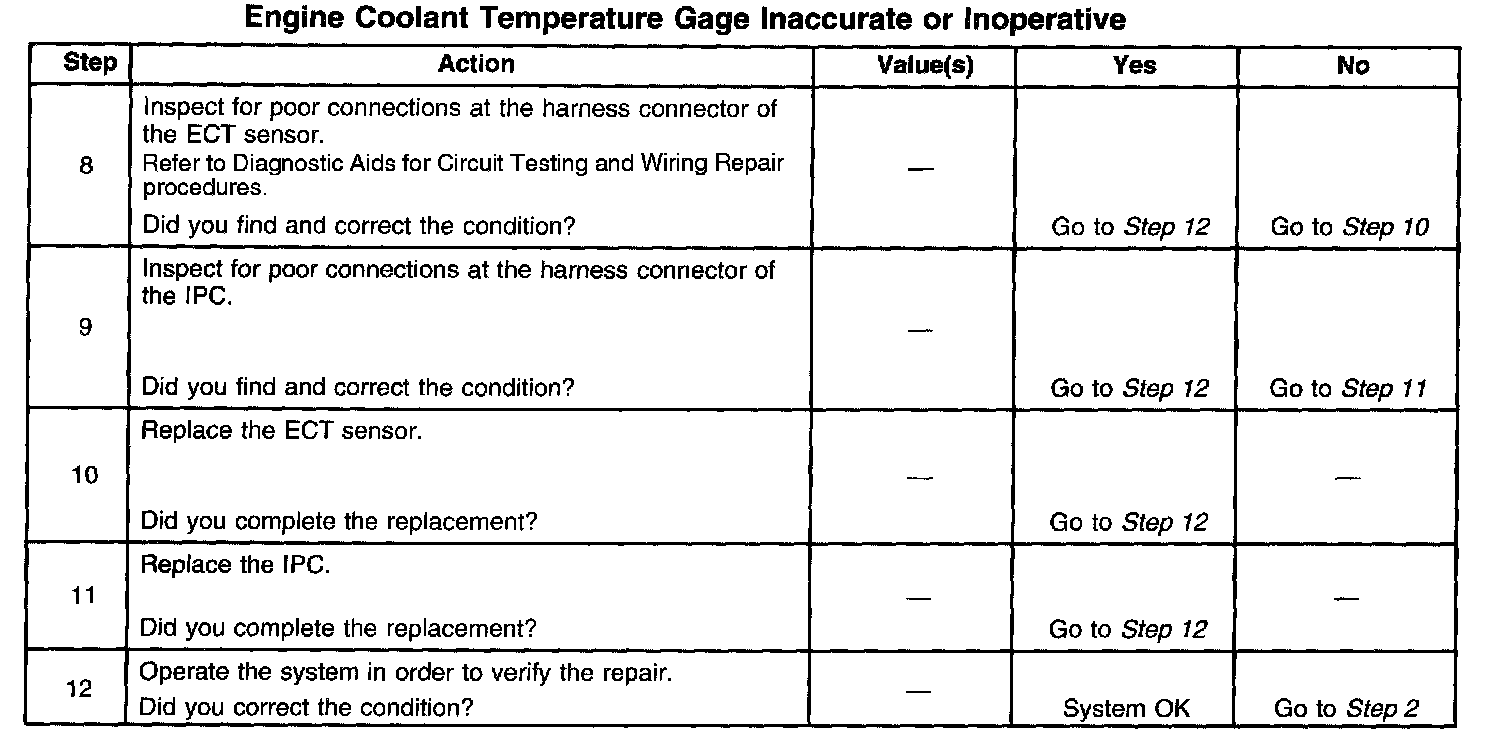

Steps 8-12:

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a short to ground in the signal circuit.
4. This step tests for an open, a high resistance, or a short to voltage in the signal circuit.
