Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Blower Motor Switch
>>
Diagrams
Blower Motor Switch: Diagrams

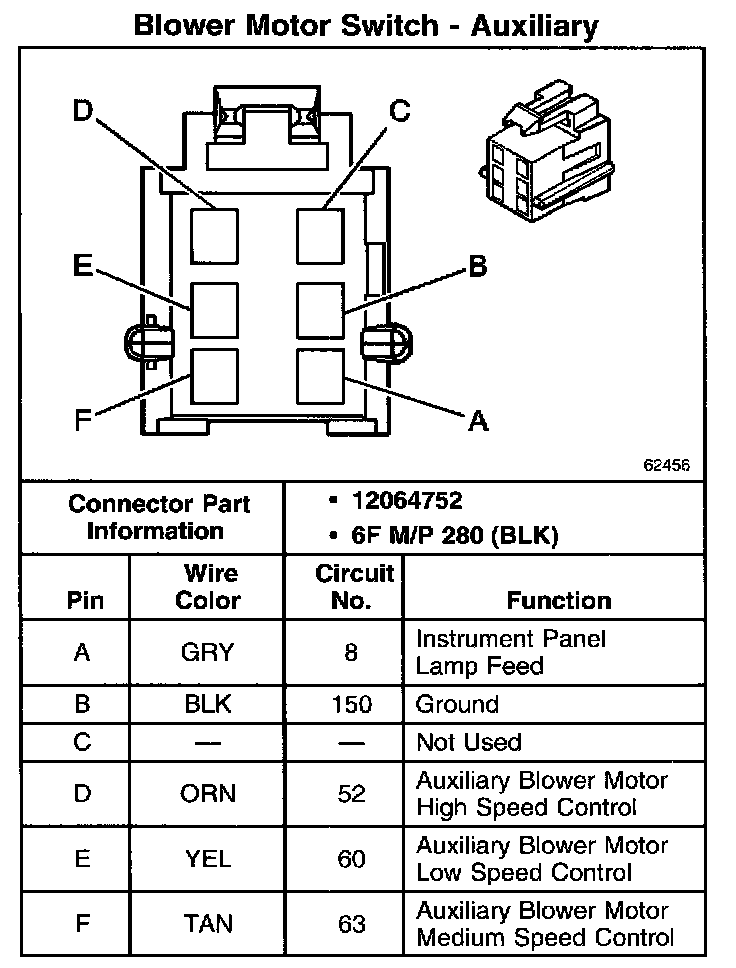

Blower Motor Switch - Auxiliary - HVAC Systems - Manual:
