Home >> Chevy Truck >> 2002 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Upfitter Provisions Relay Connector

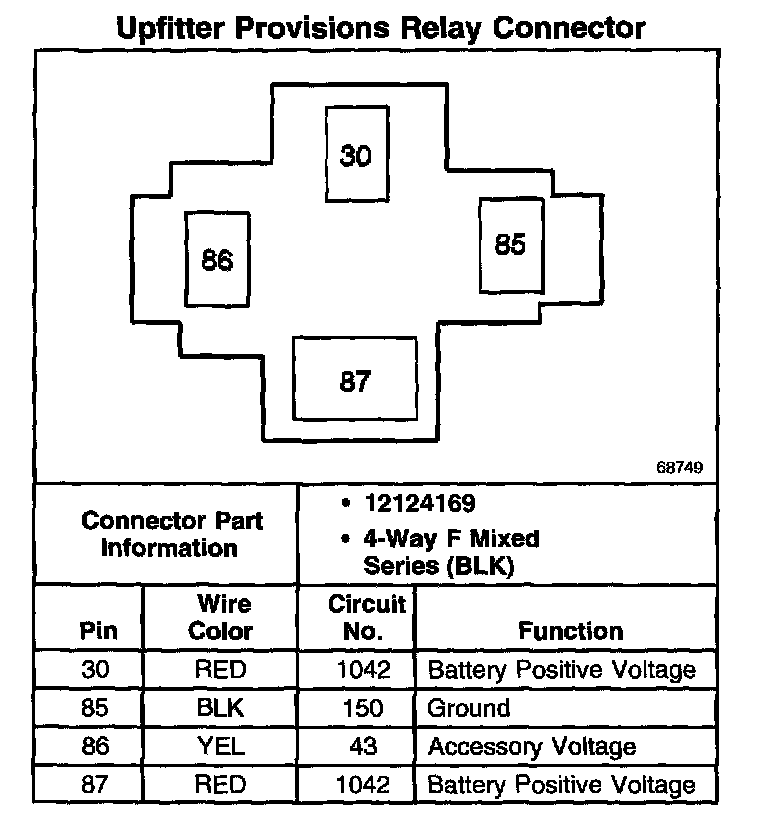

Upfitter Provisions Relay Connector

Upfitter Provisions Relay Connector:
