Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
Express 3/4 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
4L80-E/4L85-E Automatic Transmission
>>

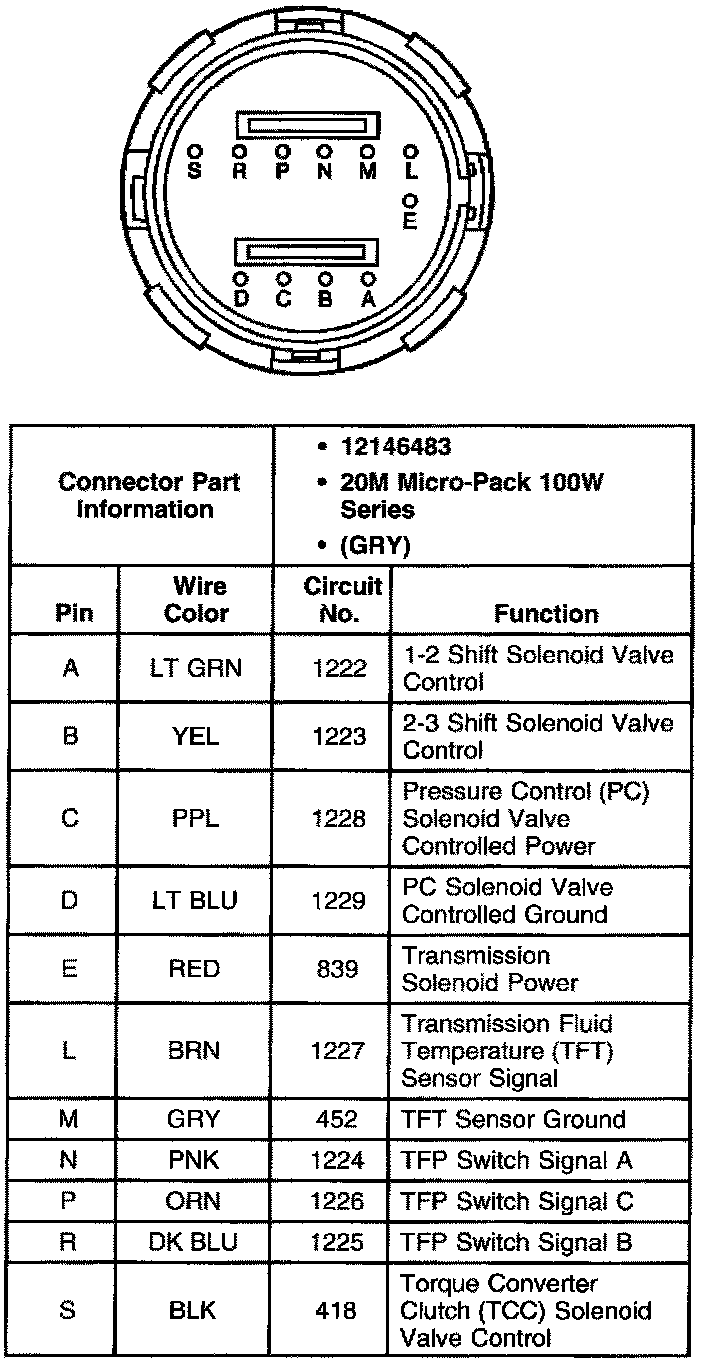

Inline Harness Connector C103, Transmission Side
Inline Harness Connector C103, Transmission Side
