Air Outlet Duct Replacement - Left Floor

REMOVAL PROCEDURE




1. Remove the left knee bolster.
2. Remove the screw from the air outlets.

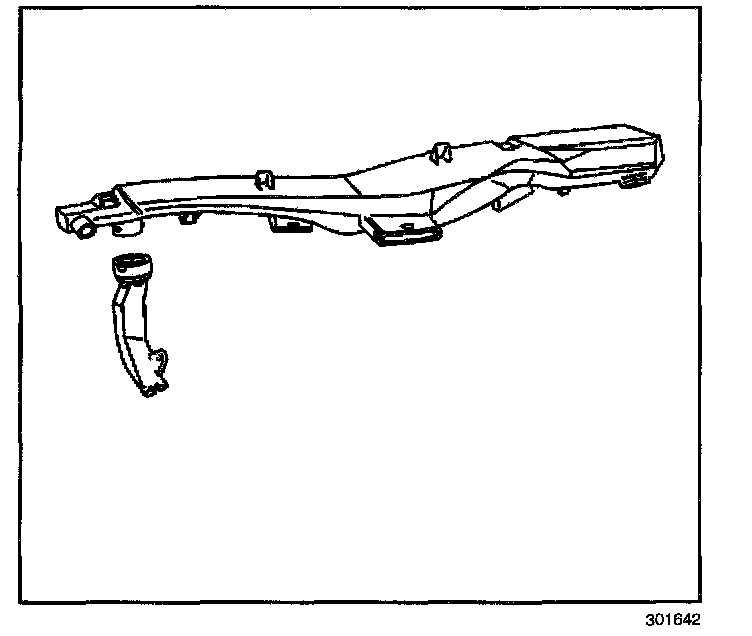

3. Remove the left inner air outlet duct from the vehicle.




4. Remove the left outer air outlet duct from the vehicle.

INSTALLATION PROCEDURE




1. Install the left outer air outlet duct to the vehicle.




2. Install the left inner air outlet duct to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screw to the air outlets.

Tighten
Tighten the screw to 2 N.m (18 lb in).

4. Install the left knee bolster.
