Deflector Replacement - Auxiliary A/C Outlet - Headliner

REMOVAL PROCEDURE

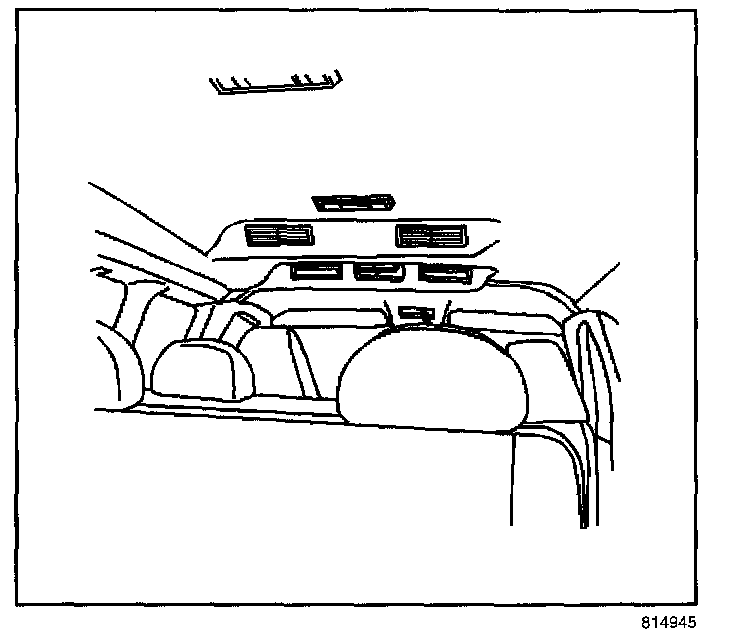

1. Use a flat blade tool in order to remove the air deflector louver from the headliner.
2. Remove the air deflector louver from the vehicle.

INSTALLATION PROCEDURE




1. Align the air deflector louver into the opening in the headliner.
2. Push the air outlet into the headliner until the deflector snaps into place.
