Rear Window Defogger Grid - Cargo Door

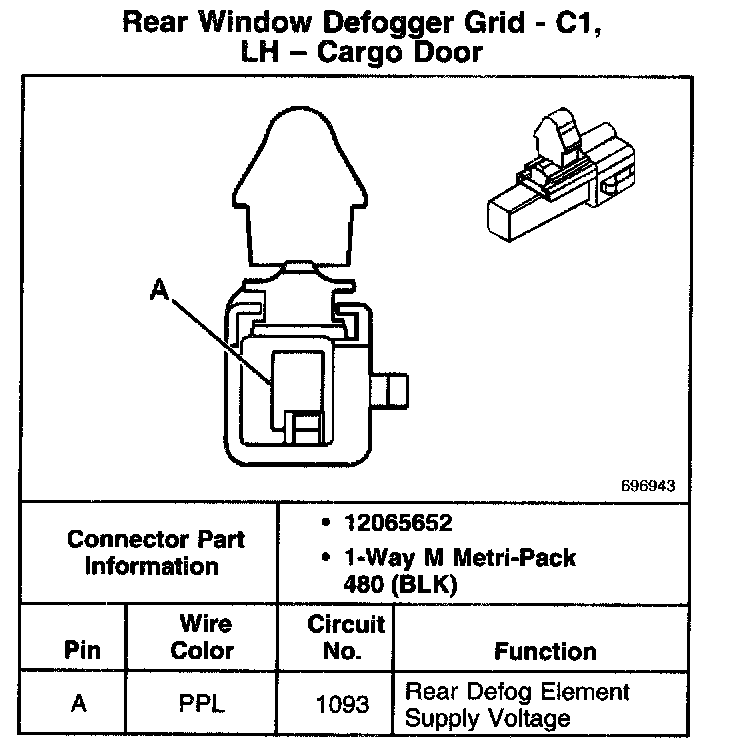

Rear Window Defogger Grid - C1, LH - Cargo Door:




Rear Window Defogger Grid - C1, RH - Cargo Door:

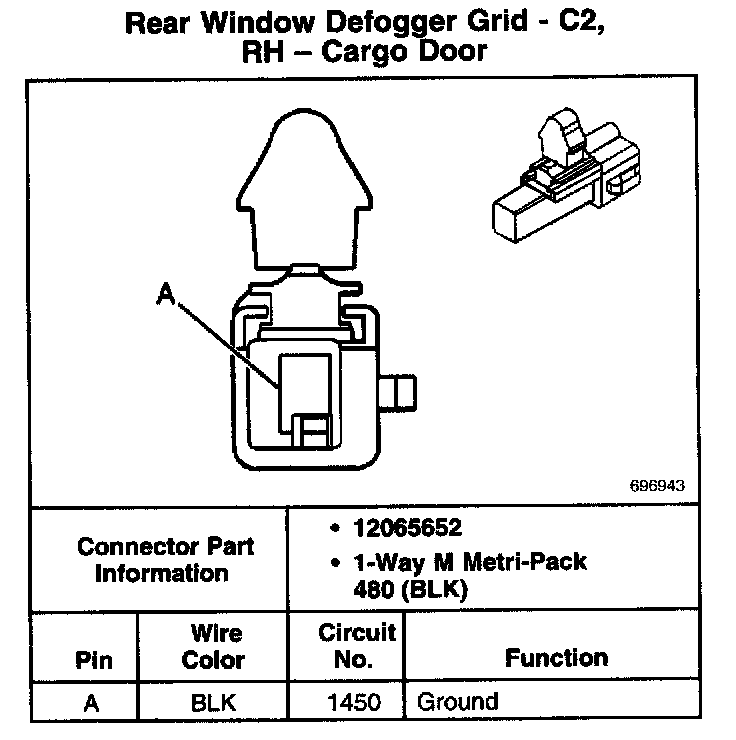

Rear Window Defogger Grid - C2, RH - Cargo Door:

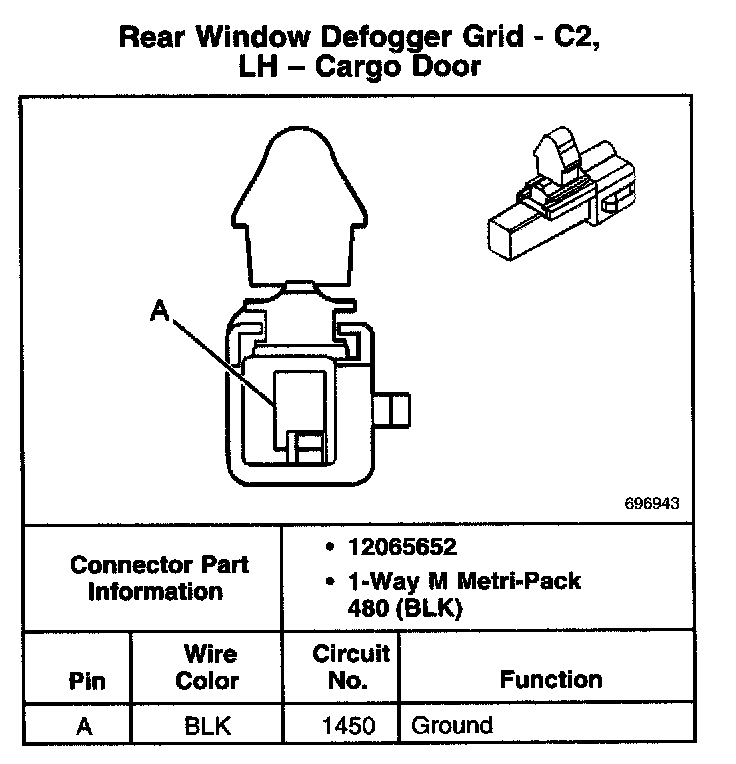

Rear Window Defogger Grid - C2, LH - Cargo Door:
