ABS Schematics (Speed Sensor Signals (W/O Traction Assist)
ABS Schematics (Speed Sensor Signals (W/O Traction Assist)

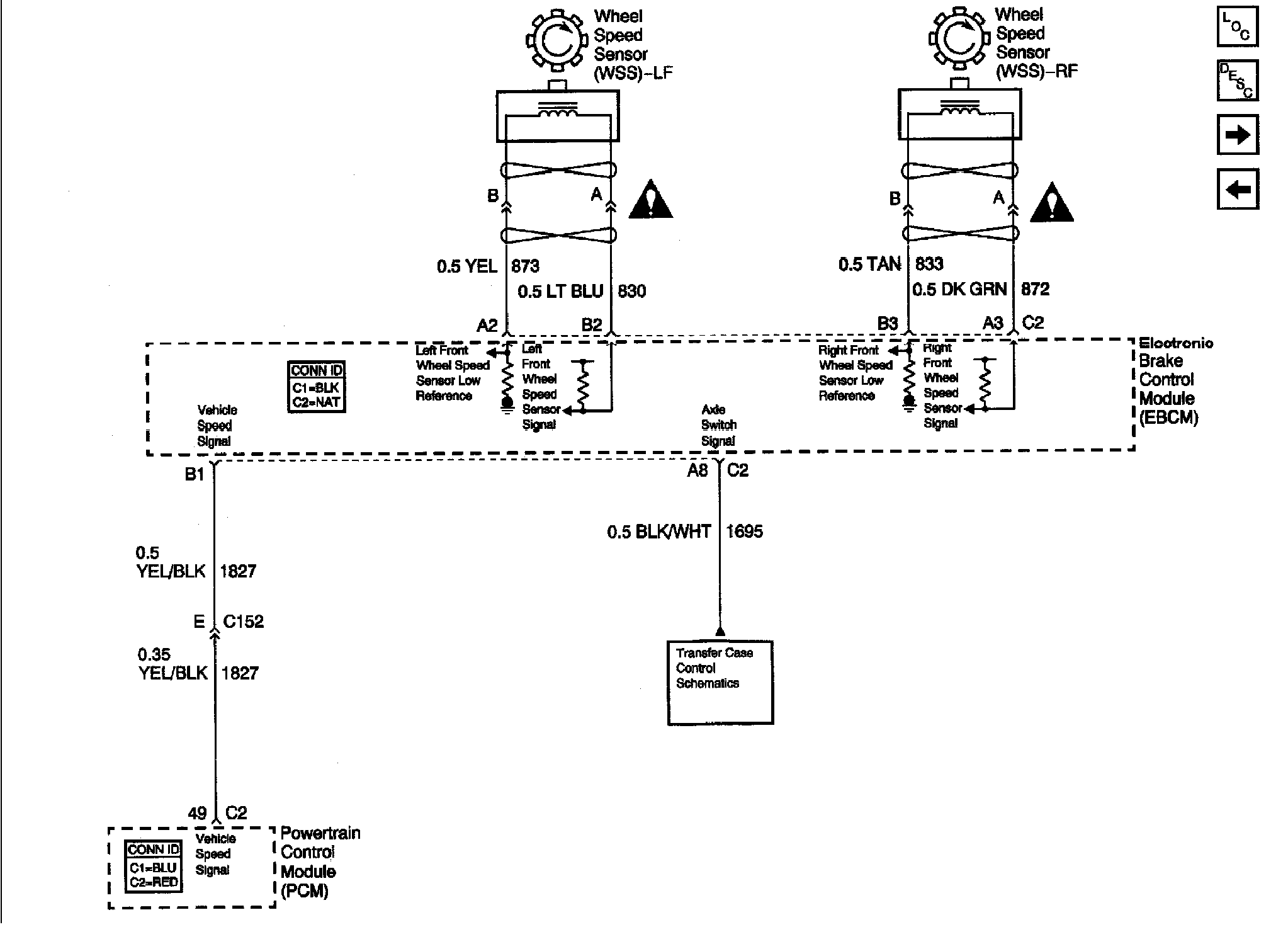

Speed Sensor Signals W/O Traction Assist:
