C100 (Engine Harness to Heated Oxygen Sensor Harness)
C100 (Engine Harness to Heated Oxygen Sensor Harness)

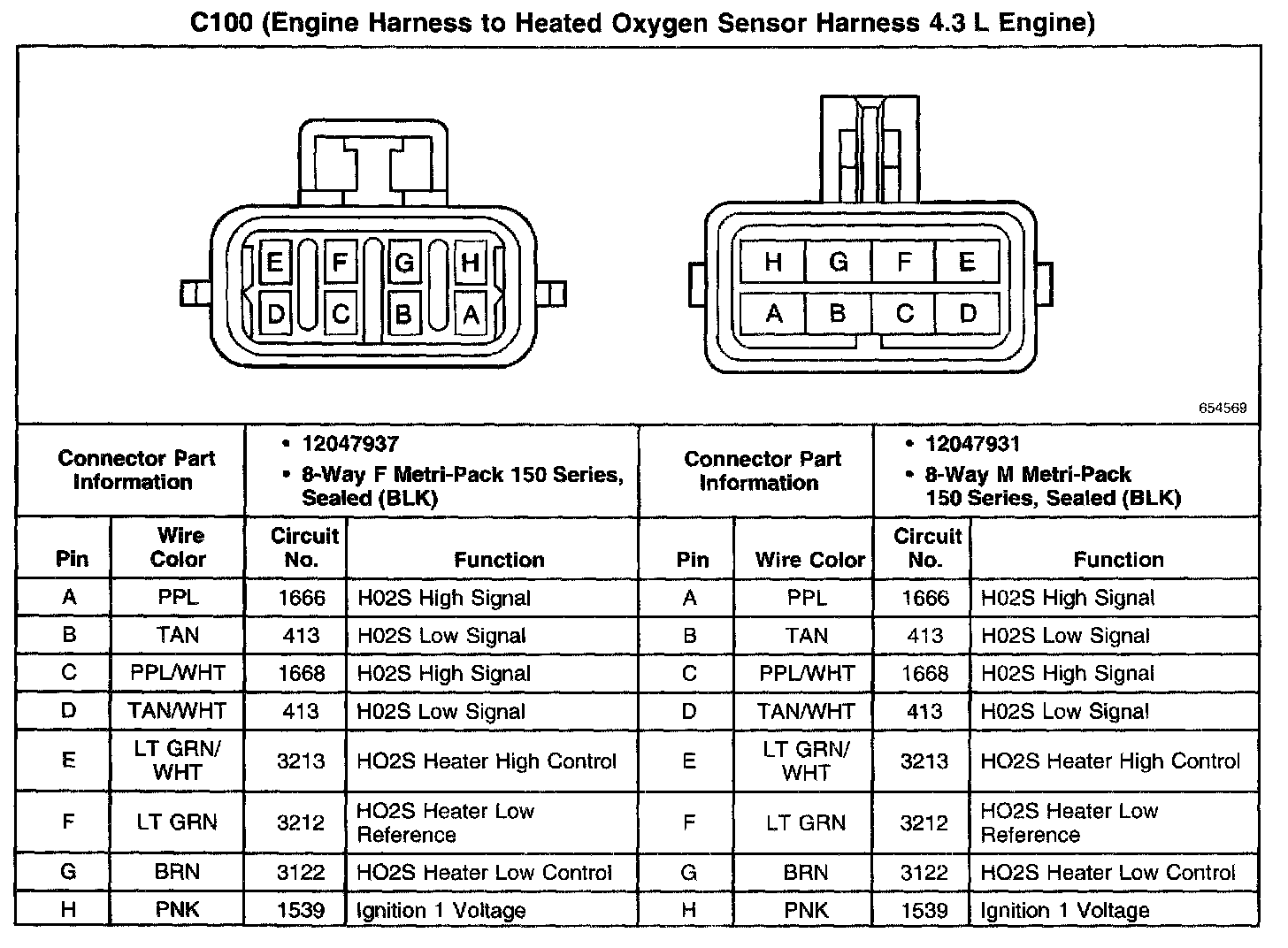

C100 (Engine Harness To Heated Oxygen Sensor Harness 4.3 L Engine):
