S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200-C229
>>
C204 - Floor Shifter Harness to Body Harness - Crew Cab
C204 - Floor Shifter Harness to Body Harness - Crew Cab

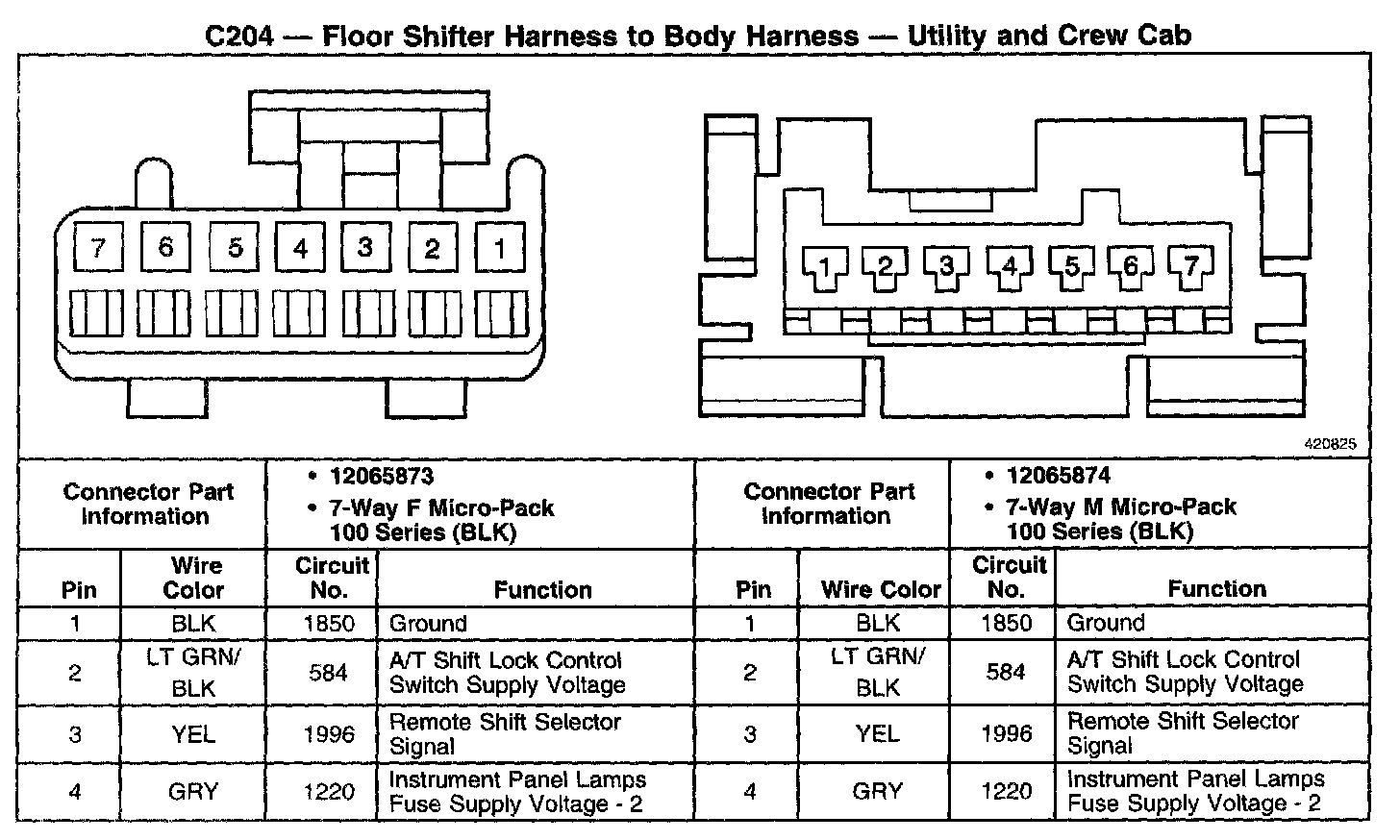

C204 - Floor Shifter Harness To Body Harness - Utility And Crew Cab Part 1:

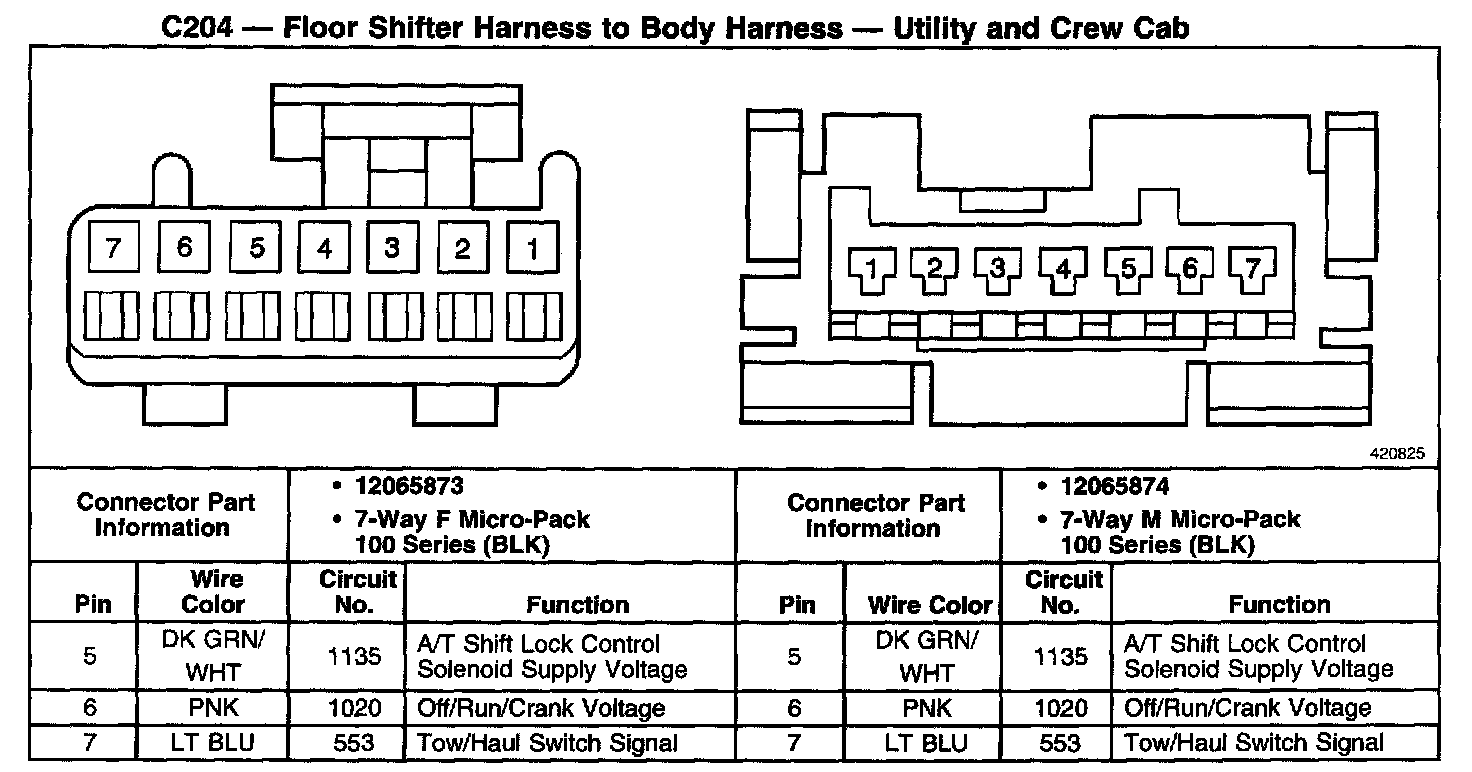

C204 - Floor Shifter Harness To Body Harness - Utility And Crew Cab Part 2:
