C207 - I/P Harness to CD Changer Harness
C207 - I/P Harness to CD Changer Harness

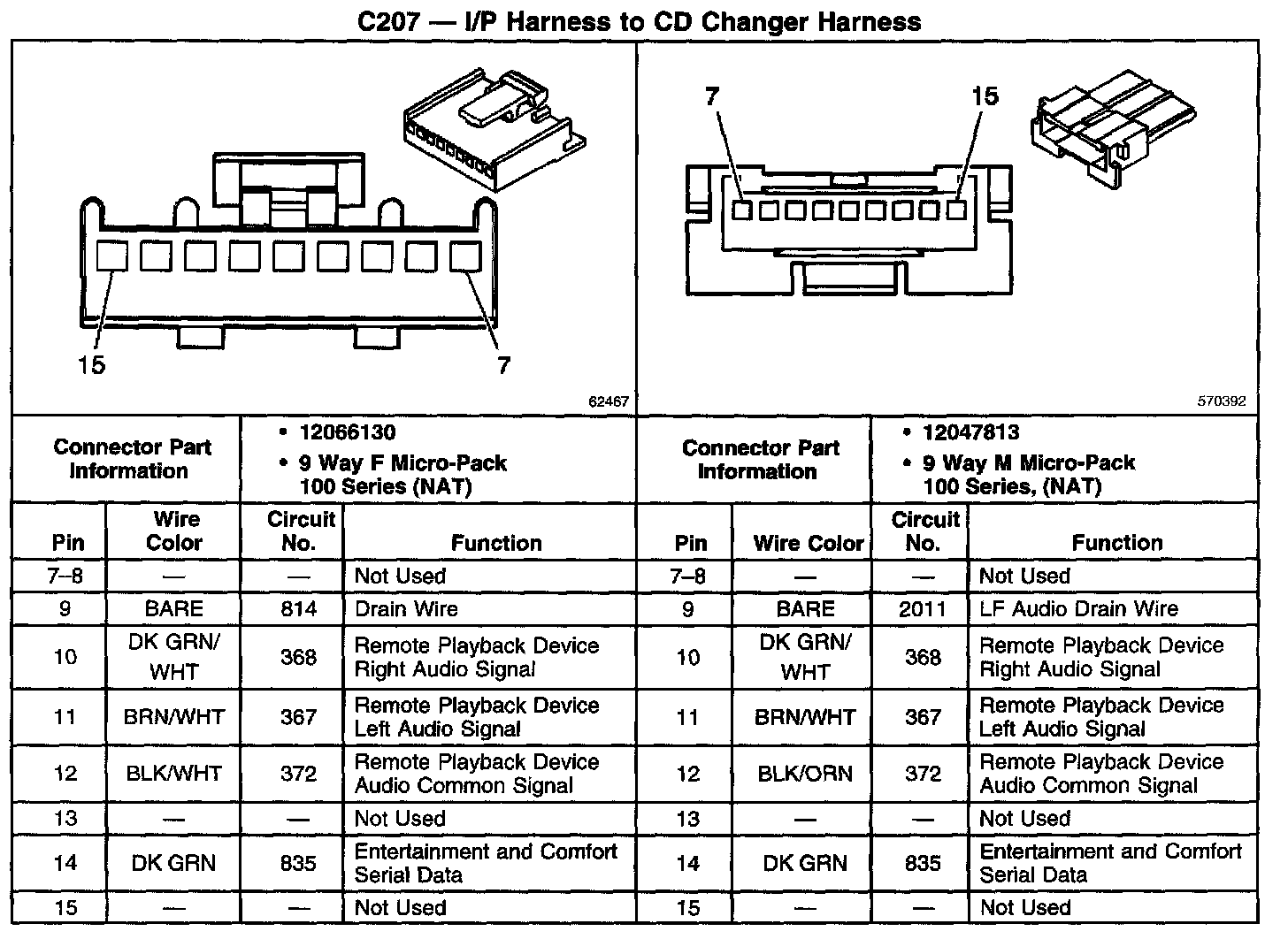

C207 - I/P Harness To CD Changer Harness:
