Chevy Truck
>>
2002
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
High Pressure Sensor / Switch, HVAC
>>
HVAC Systems - Automatic
HVAC Systems - Automatic

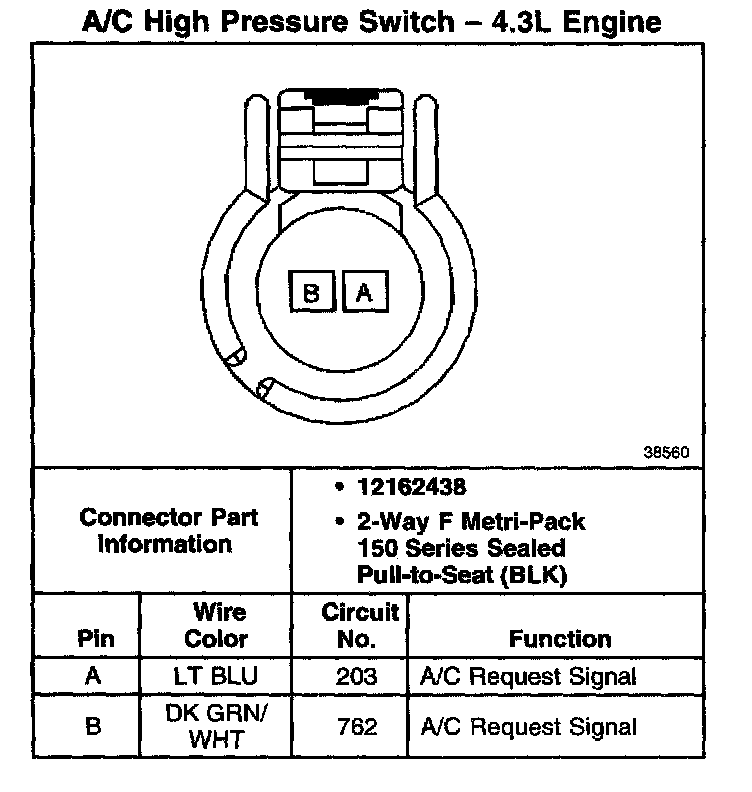

A/C High Pressure Switch:
