Multiple Junction Connector
>>
C200 - C229
>>
C201 - STRG Column Harness to Redundant STRG Wheel CTRL Harness
C201 - STRG Column Harness to Redundant STRG Wheel CTRL Harness

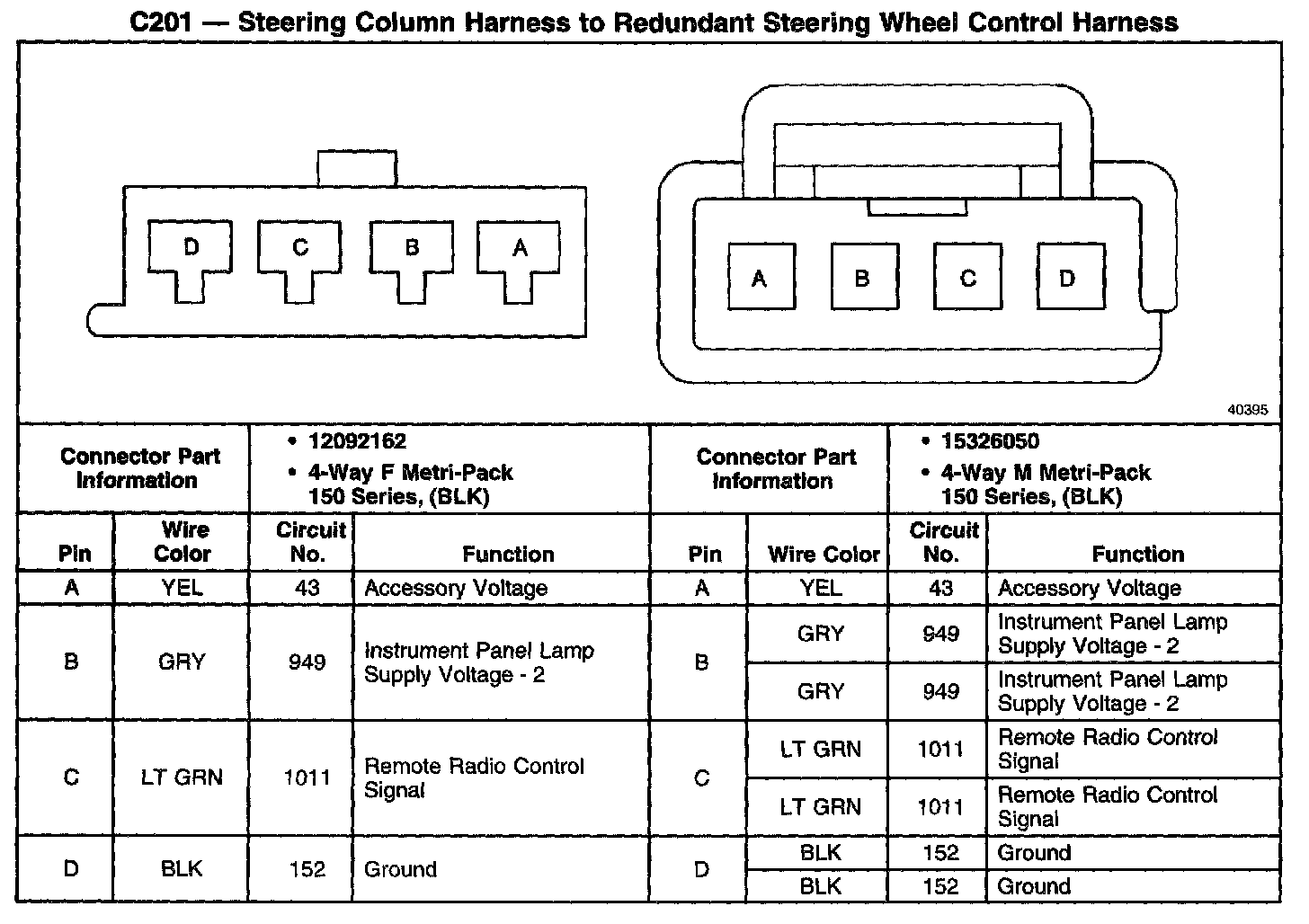

C201 - Steering Column Harness To Redundant Steering Wheel Control Harness:
