Chevy Truck
>>
2002
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>

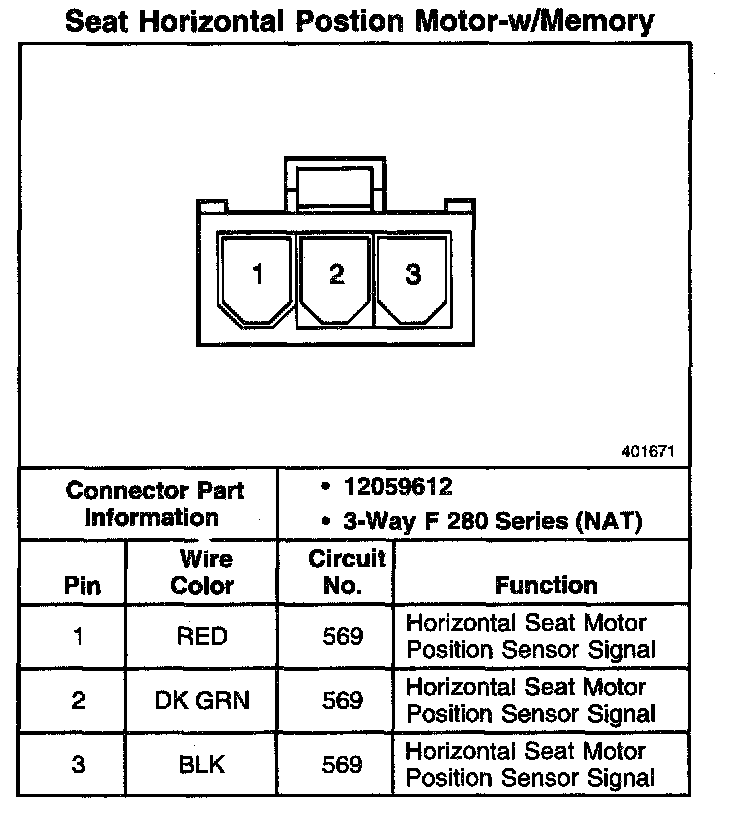

Seat Horizontal Position Motor - W/Memory
Seat Horizontal Position Motor - W/Memory
Seat Horizontal Position Motor - W/Memory:
