Power Seat Switch
>>
Seat Adjuster Switch Driver Connector C2-8-Way, Non-Memory
Seat Adjuster Switch Driver Connector C2-8-Way, Non-Memory

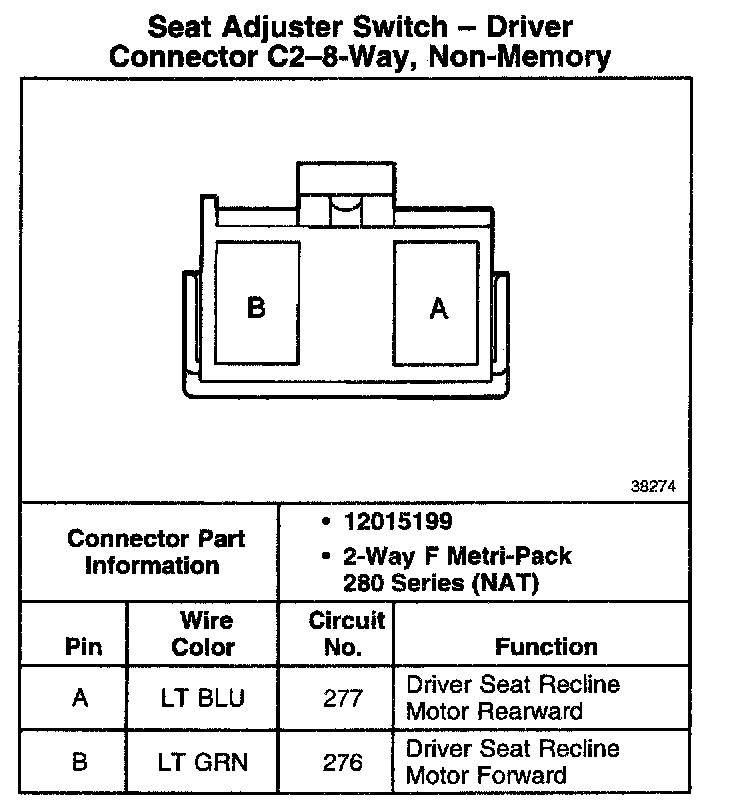

Seat Adjuster Switch - Driver Connector C2-8-Way, Non-Memory:
