C210 (Body Harness to Redundant STRG Wheel Controls Harness)

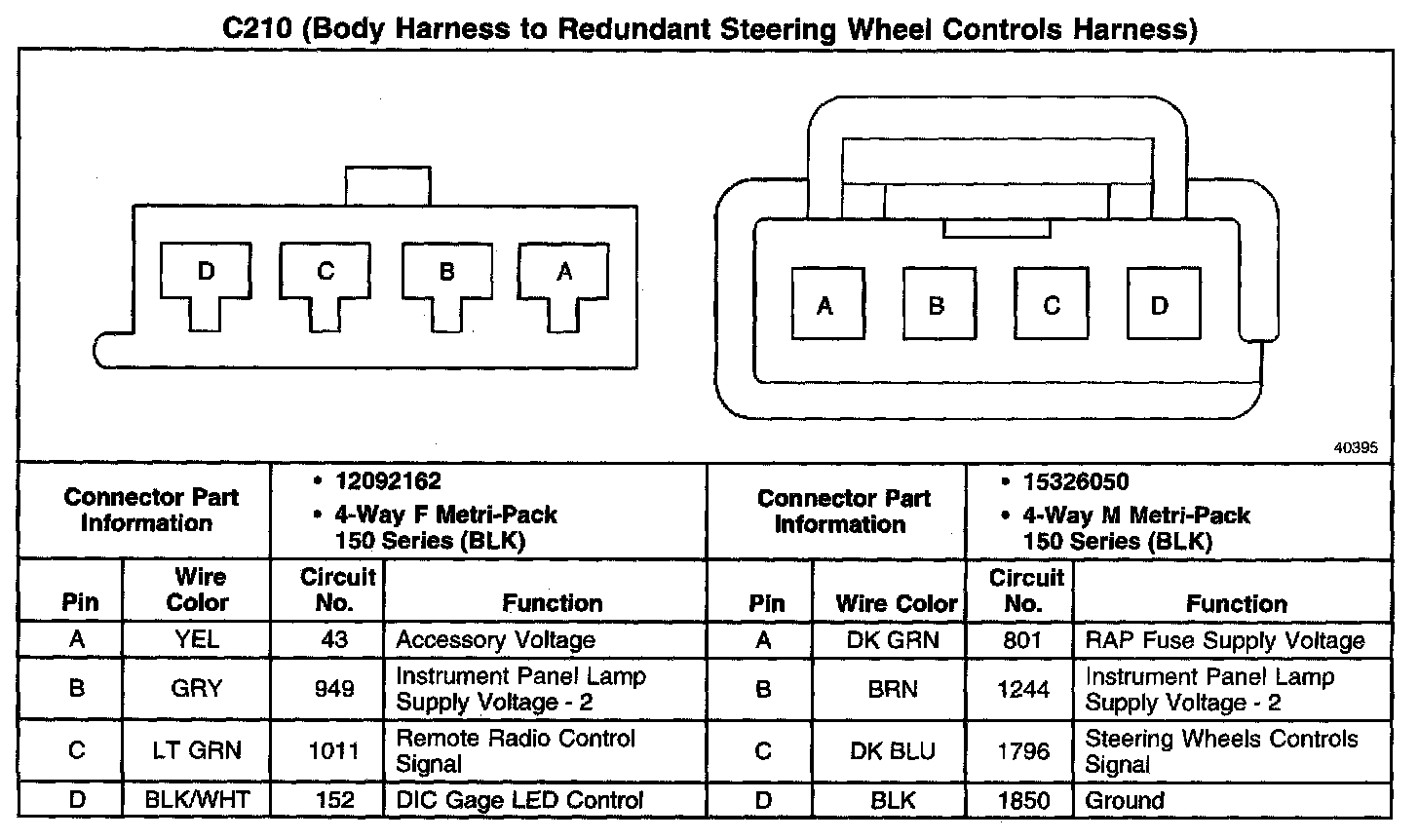

C210 (Body Harness To Redundant Steering Wheel Controls Harness):
